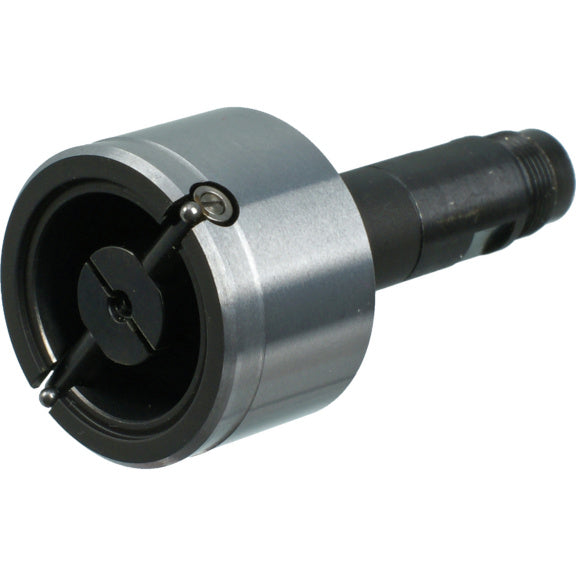

Schwenk 30600000 Indicating plug Gauge OD Range 60,1 - 80mm h=4 Ø, Sleeve Dimension H=33mm Accuracy=.001-.002mm, Standard Version

Roll over image to zoom in Click on image to zoom

Schwenk 30600000 Indicating plug Gauge OD Range 60,1 - 80mm h=4 Ø, Sleeve Dimension H=33mm Accuracy=.001-.002mm, Standard Version

Name: Schwenk 30600000 Indicating plug Gauge OD Range 60,1 - 80mm h=4 Ø, Sleeve Dimension H=33mm Accuracy=.001-.002mm, Standard Version
Brand: Schwenk
SKU: 30600000
Price: 440.0 GBP
Availability: InStock

SchwenkSKU: 30600000

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£440.00

Quantity:

All prices exclude VAT, which will be added at checkout.

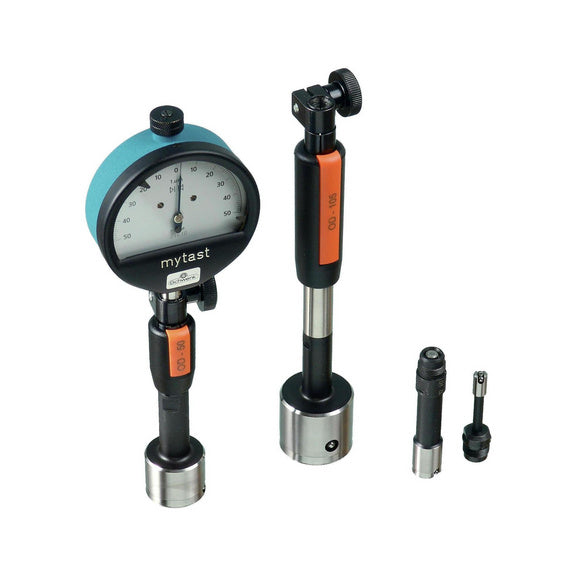

Application

For quick comparison measurements of bores during series inspections.
The slightly undersized, ground sleeve is used to guide and centre the plug gauge in the bore.

Execution

Cemented carbide measuring contacts and measuring needles (wear-resistant)
Plug gauge from dia. 130 mm can be supplied as a cross-shaped sleeves or cross-shaped sleeves with skids
Standard version

Advantage

Easy to use
Minimum measuring times
Maximum measuring accuracy
Robust and reliable
Adapted to the desired bore diameter and tolerance

Brand	SCHWENK
Manufacturer Part Number	30600000
Design of measuring contact	Carbide
Min./max. diameter of measuring range	60.1-80 mm
Measurement travel	0.2 mm
Front size	4 mm
Repeat accuracy	1 µm
Sleeve length	33 mm
Connection thread	M11 x 0.75

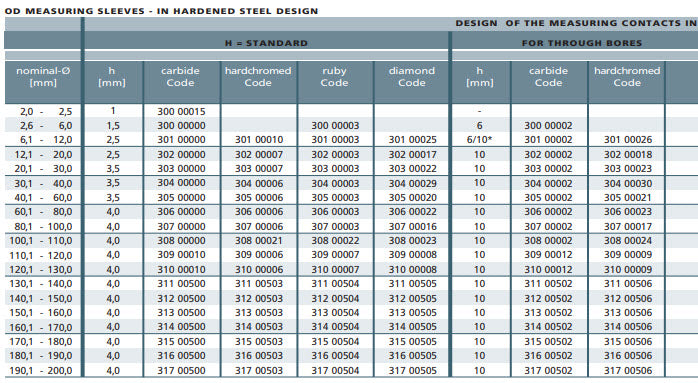

Please let us know the exact bore tolerance with your order:
Example: measuring sleeve OD No. 304 00000 35 H7
measuring sleeve OD No. 304 00000 35 + 0,15/-0,01
measuring sleeve OD No. 304 00000 34,990/35,005
* nominal Ø 6,1 - 9 mm: h = 6 mm; nominal Ø 9,1 - 12 mm: h = 10 mm
