Application

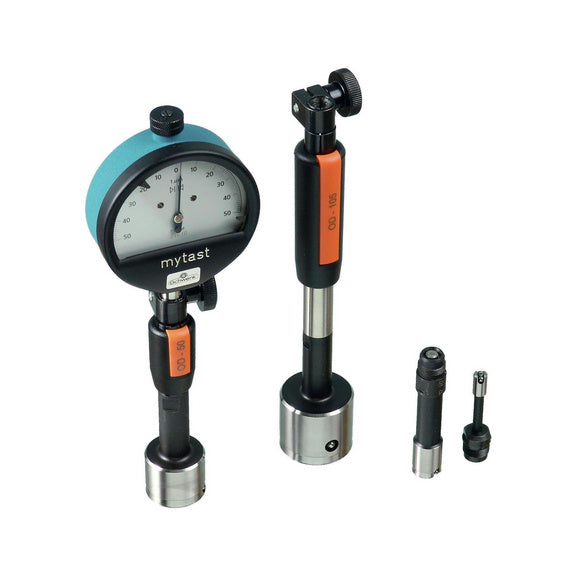

For quick comparison measurements of bores during series inspections.

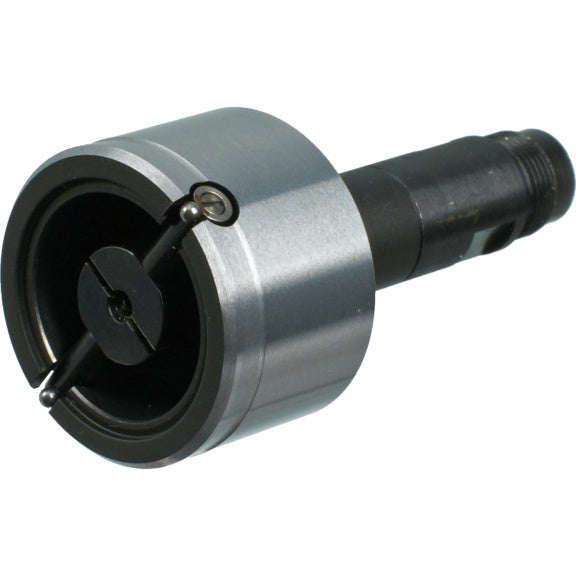

The slightly undersized, ground sleeve is used to guide and centre the plug gauge in the bore.
Execution
- Cemented carbide measuring contacts and measuring needles (wear-resistant)
- Plug gauge from dia. 130 mm can be supplied as a cross-shaped sleeves or cross-shaped sleeves with skids
- Standard version
Advantage
- Easy to use
- Minimum measuring times
- Maximum measuring accuracy
- Robust and reliable
- Adapted to the desired bore diameter and tolerance
|
Brand |
SCHWENK |
|
Manufacturer Part Number |
30700000 |
|
Design of measuring contact |
Carbide |
|
Min./max. diameter of measuring range |
80.1- 100mm |
|
Measurement travel |
0.2 mm |
|
Front size |
4 mm |
|
Repeat accuracy |
1 µm |
|
Sleeve length |
33 mm |
|
Connection thread |
M11 x 0.75 |

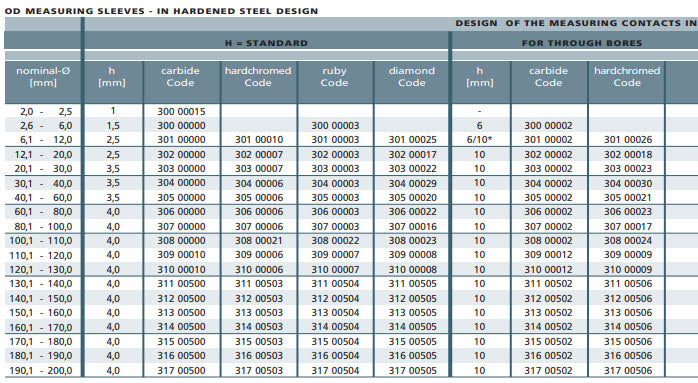

Example: measuring sleeve OD No. 304 00000 35 H7
measuring sleeve OD No. 304 00000 35 + 0,15/-0,01
measuring sleeve OD No. 304 00000 34,990/35,005
* nominal Ø 6,1 - 9 mm: h = 6 mm; nominal Ø 9,1 - 12 mm: h = 10 mm
