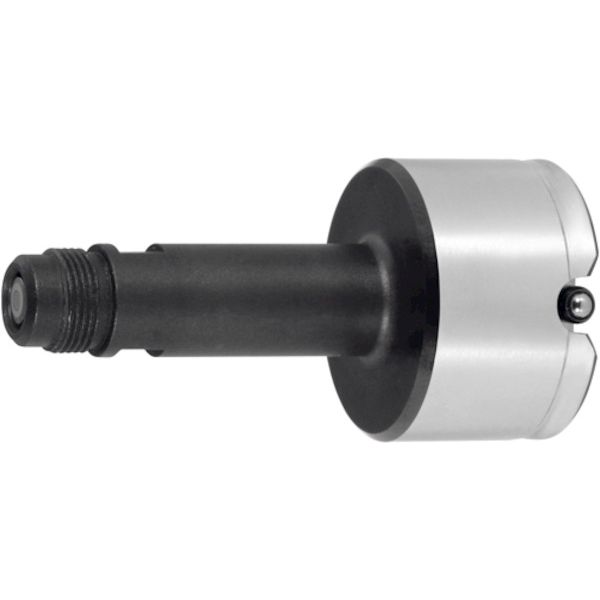

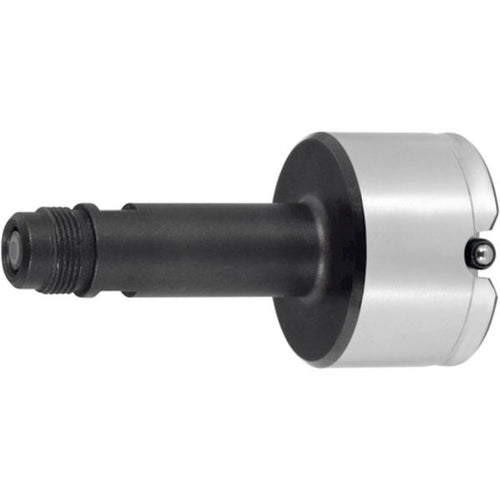

Schwenk 30800001 Indicating plug Gauge OD Range 100.1-110 mm h=1.2 Ø, Sleeve Dimension H=33.00mm, Blind Hole Version

Application

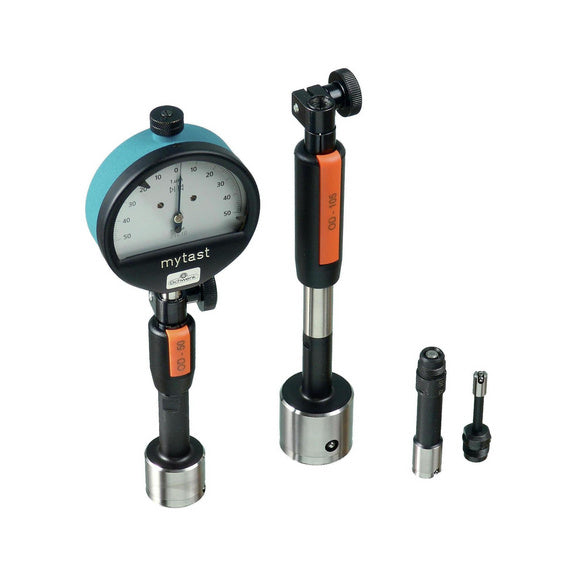

For quick comparison measurements of bores during series inspections.
The slightly undersized, ground sleeve is used to guide and centre the plug gauge in the bore.

Execution

• Cemented carbide measuring contacts and measuring needles (wear-resistant)

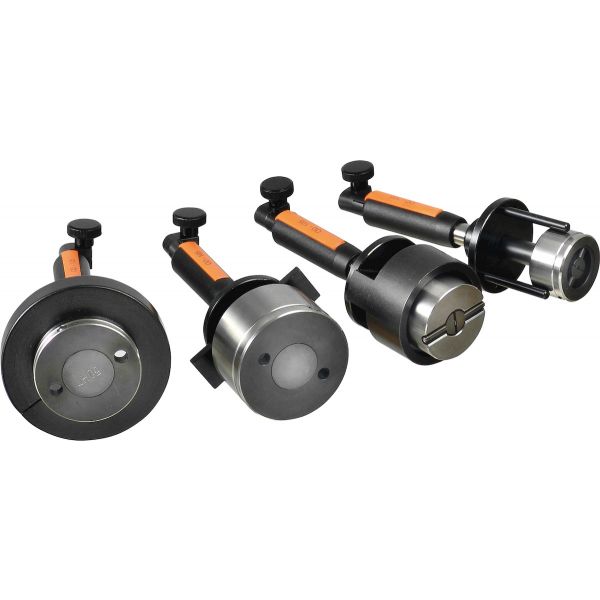

• Plug gauge from dia. 130 mm can be supplied as a cross-shaped sleeves or cross-shaped sleeves with skids

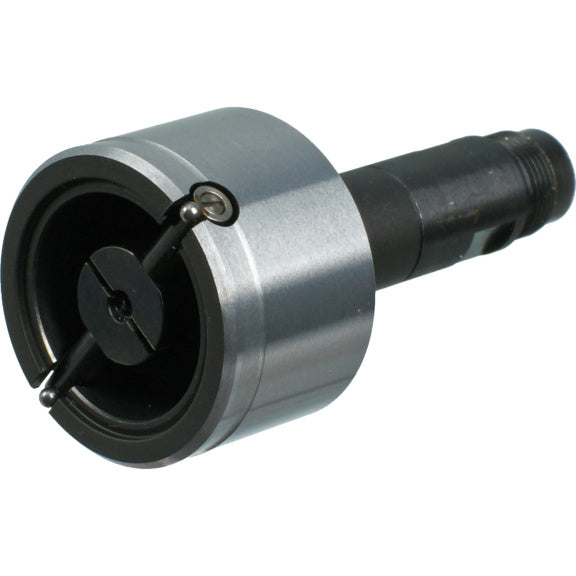

• Version for blind holes with reduced face size

Advantage

• Easy to use
• Minimum measuring times
• Maximum measuring accuracy
• Robust and reliable
• Adapted to the desired bore diameter and tolerance

Please let us know the exact bore tolerance with your order:
Example: measuring sleeve OD No. 304 00000 35 H7
measuring sleeve OD No. 304 00000 35 + 0,15/-0,01
measuring sleeve OD No. 304 00000 34,990/35,005

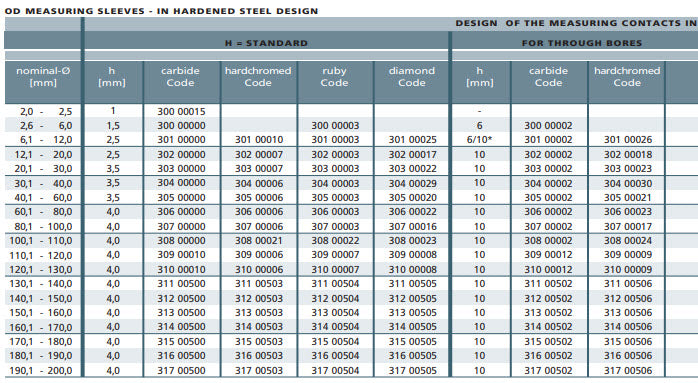

* nominal Ø 6,1 - 9 mm: h = 6 mm; nominal Ø 9,1 - 12 mm: h = 10 mm
