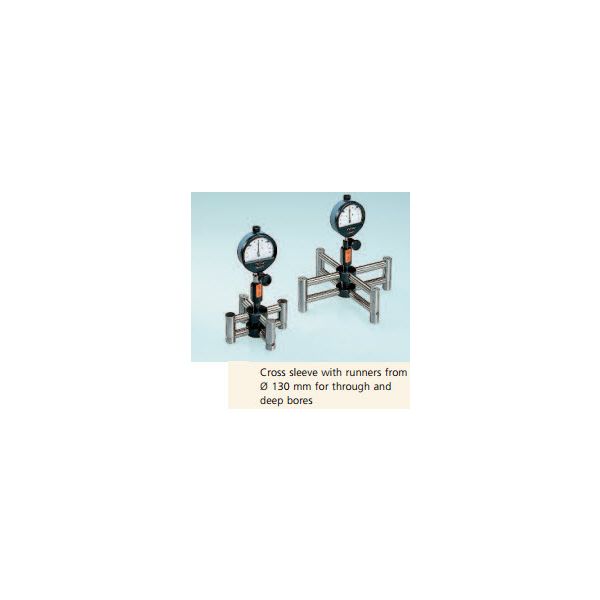

Schwenk 31400001 Indicating plug Gauge OD Range 250.1-300 mm h=7mmØ, Standard Version, cross sleeve w. runners

Hard Chromed Sleeves and Hard Chromed Contacts OD Measuring Sleeves – Hard chromed, Carbide Contacts Hard Chromed Sleeve, Carbide Contacts Hardened sleeve, Carbide Contacts Assembly complete set:
Measuring sleeve with two radially movable contact pins, offset by 180° + OD holder + indication unit of choice. Standard measuring range s: 0,2 mm for Ø > 6 mm.
Standard design of the measuring sleeve: hardened steel, alternatively hard chromed, measuring contacts tungsten carbide.

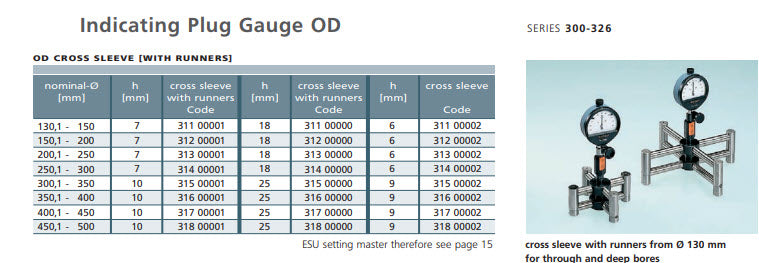

Indicating Plug Gauge OD
FOR MEASURING INTERNAL DIAMETERS, APPLICATION RANGE 2,0 - 800 MM

Please let us know the exact bore tolerance with your order:
Example: measuring sleeve OD No. 304 00000 35 H7
measuring sleeve OD No. 304 00000 35 + 0,15/-0,01
measuring sleeve OD No. 304 00000 34,990/35,005
* nominal Ø 6,1 - 9 mm: h = 6 mm; nominal Ø 9,1 - 12 mm: h = 10 mm

Schwenk 31400001 Indicating plug Gauge OD Range 250.1-300 mm h=7mmØ, Standard Version, cross sleeve w. runners
