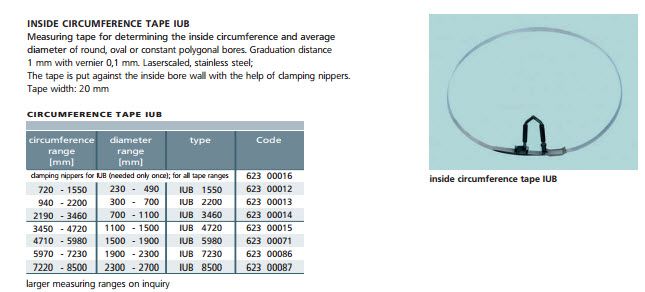

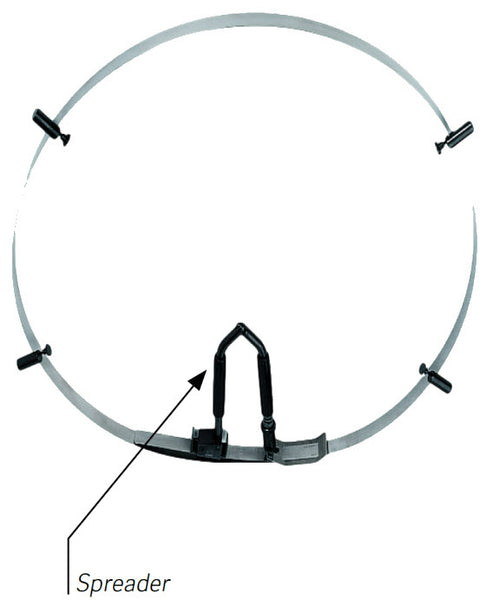

INSIDE CIRCUMFERENCE TAPE IUB Measuring tape for determining the inside circumference and average diameter of round, oval or constant polygonal bores. Graduation distance 1 mm with vernier 0,1 mm. Laserscaled, stainless steel; The tape is put against the inside bore wall with the help of clamping nippers. Tape width: 20 mm
Schwenk 62300015 INSIDE CIRCUMFERENCE TAPE IUB circumference type Code range 3450 - 4720mm diameter range [mm]1100 - 1500 Type IUB4720 ,clamping nippers for IUB (needed only once); for all tape
Type=IUB 4720, Material= Stainless Steel, Circumference range [mm]=3450 - 4720, Diameter range [mm]=1100 - 1500, Graduation distance =1 mm, Scaling= according to DIN 866, Vernier =0,1 mm, Remarks=laser scaled, Tape width=: 20 mm,
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
