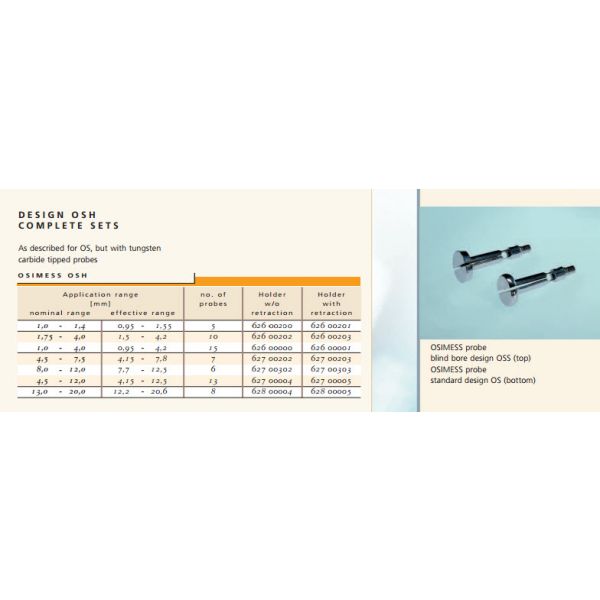

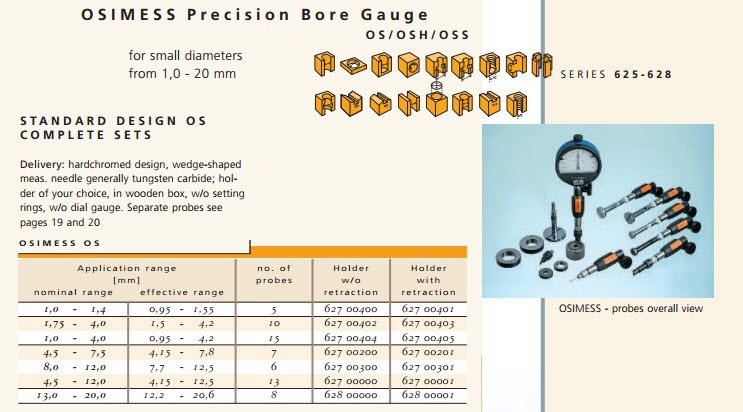

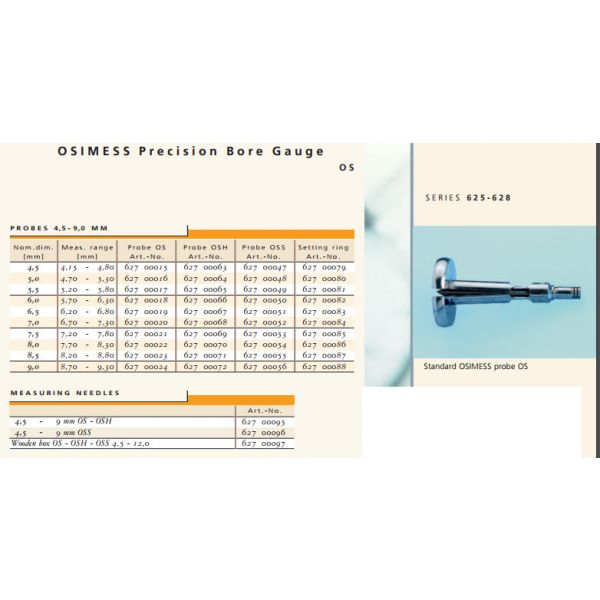

Split-ball probes OSIMESS For fast manual measuring of bores with Ø from 1,0 to 40 mm. Modular system with one instrument holder which can quickly be adapted to the diameter range required with exchangeable split-ball probes and measuring needles. The deviation of the measuring travel is via a precisely manufactured wedge needle out of tungsten carbide. The three basic designs are hardchromed, alternatively carbide-tipped or for blind bores. Cost-effective measuring instrument for small diameters Various accessories Customized designs available
Schwenk OSIMESS 62700404 Split Ball Bore Gauge Sets Nominal range 1-4mm effective range .95-4.2mm number of probes 15, Hoder without retraction Model OS, hard chrome design
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
