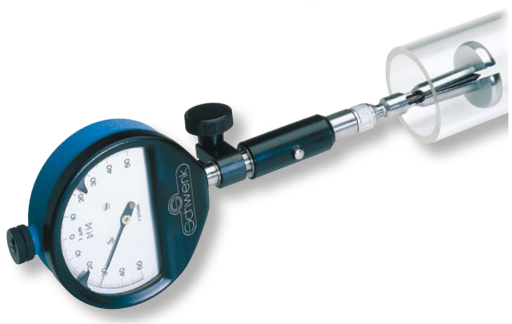

Split-ball probes OSIMESS For fast manual measuring of bores with Ø from 1,0 to 40 mm. Modular system with one instrument holder which can quickly be adapted to the diameter range required with exchangeable split-ball probes and measuring needles. The deviation of the measuring travel is via a precisely manufactured wedge needle out of tungsten carbide. The three basic designs are hard chromed, alternatively carbide-tipped or for blind bores. Cost-effective measuring instrument for small diameters Various accessories Customized designs available

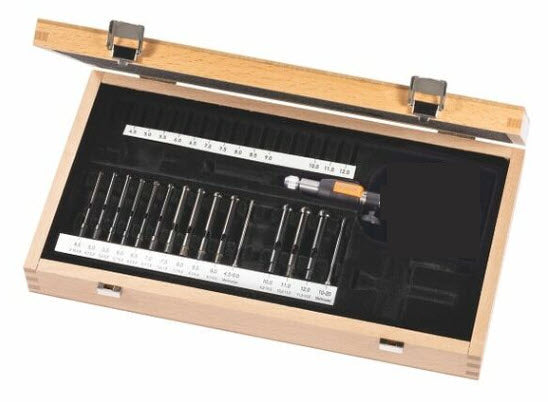

Schwenk OSIMESS OSS 626 00003 Split Ball Bore Gauge Sets For Blind Bores
Nominal range 1.75-4mm
effective range 1.5-4.3mm
number of probes 10,
holder with retraction,

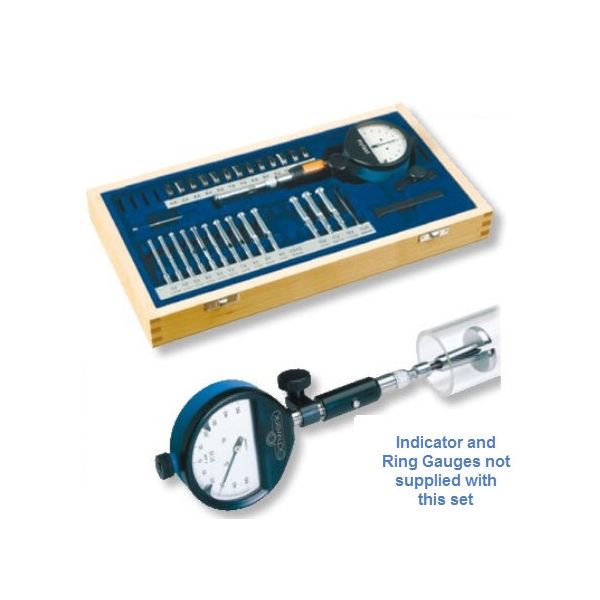

Indicators and Ring gauges not included
Nominal range 1.75-4mm
effective range 1.5-4.3mm
number of probes 10,
holder with retraction,
Indicators and Ring gauges not included
