Mitutoyo Screw Thread Micrometer Interchangeable Tips, 0-25mm 126-125

Roll over image to zoom in Click on image to zoom

Photo 1 of 10 More photos — use the arrows

Mitutoyo Screw Thread Micrometer Interchangeable Tips, 0-25mm 126-125

Name: Mitutoyo Screw Thread Micrometer Interchangeable Tips, 0-25mm 126-125
Brand: Mitutoyo
SKU: 126-125
Price: 203.6 GBP
Availability: InStock

MitutoyoSKU: 126-125

List price: £280.00 Offer price: £203.60 Excluding VAT

Quantity:

Optional Services

Professional Laser Marking by Automator Lasers Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Number of items to be laser marked

Please check before engraving: New gauges engraved to your requirements cannot be returned for credit if ordered incorrectly or no longer required. Please confirm the gauge specification and marking details before ordering. This does not affect your rights if the goods are faulty or incorrectly supplied.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10 +£39.84 Part number: 156-101-10 → View product

Mitutoyo Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10 +£29.88 Part number: 156-105-10 → View product

MMI-10 Micrometer Checker Metric 10-piece Set 2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2,22.8 & 25.0 mm +£595.00 Part number: MMI-10 → View product

MMI-8 Micrometer Checker Metric Metric 8-pieces set 3.1, 6.5, 9.7, 12.5, 15.8, 19.0, 21.9 & 25.0 mm +£495.00 Part number: MMi-8 → View product

Mitutoyo 516-106-10 10 Blocks Micrometer Inspection Gauge Block Set Grade 0 +£497.10 Part number: 516-106-10 → View product

Recommended Alternatives

Select an alternative below to view its full details.

Sort alternatives Choose price or brand order

Inspec Screw thread Micrometer non rotating spindle Range 0-25mm x .01mm 250-91-000Brand: InspecSKU: 250-91-000 Price: £72.00 View this alternative →

Zeiss Screw Thread Micrometer Interchangeable Tips, 0-25mm 760544-001.20Brand: zeissSKU: 7460544-001.20 Price: £95.00 View this alternative →

Insize Screw Thread Micrometer 0-25mm x .01mm Item number 3281-25Brand: InsizeSKU: 3281-25 Price: £105.00 View this alternative →

Overview Technical Information Applications Videos & Documents

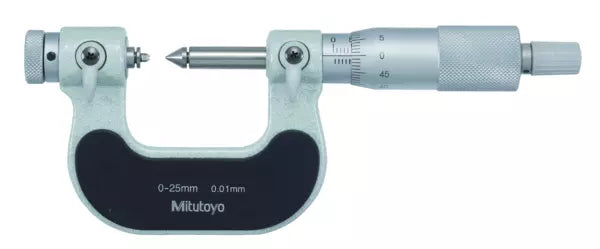

A Mitutoyo non-digital micrometer designed to mount easily interchangeable anvils/spindle-tips for measuring a wide range of screw threads. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop guarantees repeatable measurement.

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Mitutoyo Screw Thread Micrometer Interchangeable Tips, 0-25mm 126-125 Click to open the PDF document

Why Buy From MQS?

Over 40 years supplying precision measuring equipment throughout the UK and Ireland.

🎓

Expert Advice

Experienced engineers helping you select the correct measuring solution.

✔️

UKAS Calibration

Full UKAS accredited calibration laboratory with nationwide support.

🔧

Installation & Training

Installation, commissioning and operator training available.

🤝

After Sales Support

Technical support, servicing, repairs and ongoing customer care.

Digital/Analog:	Analog

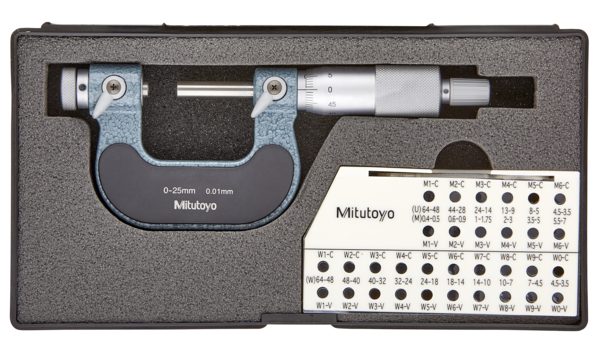

Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric
Range:	0 - 25 mm
Graduation:	0,01 mm
Spindle feed error:	3 µm

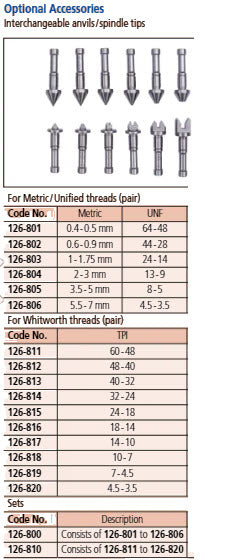

Measuring face:	Interchangeable anvil/spindle inserts (optional)
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Mass:	240 g
