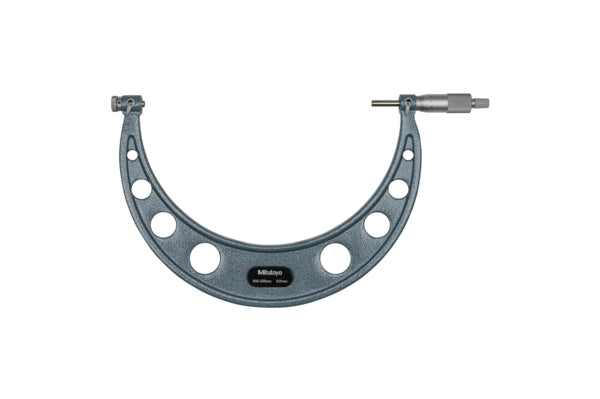

Screw Thread Micrometer Interchangeable Tips, 200-225mm 126-133

MitutoyoSKU: 126-133

List price: Regular price£764.00 Offer price: Sale price£535.00 Excluding VAT

Optional Services

Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Please check before engraving: New gauges engraved to your requirements cannot be returned for credit if ordered incorrectly or no longer required. Please confirm the gauge specification and marking details before ordering. This does not affect your rights if the goods are faulty or incorrectly supplied.

This Screw Thread Micrometer should be used with optional, interchangeable, anvils/spindle-tips that allow you to measure a wide range of metric/unified and Whitworth screw-thread pitch diameters.

A metric (unified) 60º setting standard is included with all models except those measuring range from 0-25 mm.
Digital/Analog:
Analog
Delivered:
Including box, spanner, setting standard 60°
Inch-Metric:
Metric
Range:
200 - 225 mm
Graduation:
0,01 mm
Spindle feed error:
3 µm
Measuring face:
Interchangeable anvil/spindle inserts (optional)
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Mass:
1030 g
