Screw Thread Micrometer Interchangeable Tips, 25-50mm 126-126

Roll over image to zoom in Click on image to zoom

Screw Thread Micrometer Interchangeable Tips, 25-50mm 126-126

Name: Screw Thread Micrometer Interchangeable Tips, 25-50mm 126-126
Brand: Mitutoyo
SKU: 126-126
Price: 248.0 GBP
Availability: InStock

MitutoyoSKU: 126-126

All prices exclude VAT, which will be added at checkout.

Price:

£248.00 £338.00

Quantity:

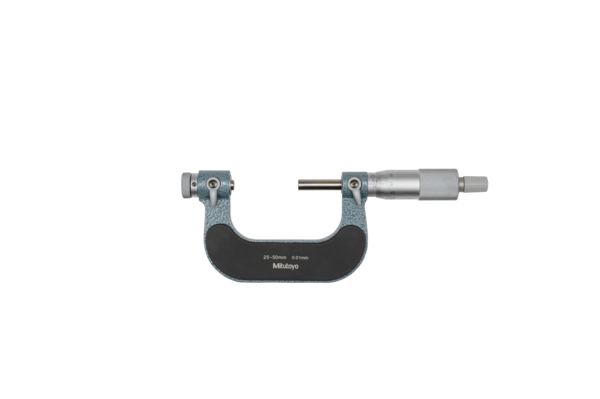

A Mitutoyo non-digital micrometer designed to mount easily interchangeable anvils/spindle-tips for measuring a wide range of screw threads. The highly stable frame incorporates a heat shield to preserve accuracy over extended measuring sessions. A ratchet stop guarantees repeatable measurement.

Customer Support

Contact our customer support team via email or call our hotline number

Phone - 02476 644661

Secure payments

We offer multiple secure payment options

Product Information
Part Number	126-126
Measuring Ranges	25-50mm
Graduation	.01mm
Accuracy	+/_.003mm
Unit of Measurement	Metric
Display Type	Analogue
Type	Thread
Constant Force Device	Ratchet Stop
Manufacturer	Mitutoyo

Digital/Analog:	Analog

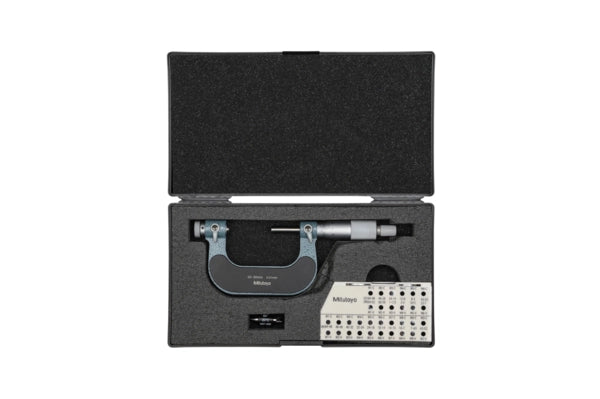

Delivered:	Including box, spanner, setting standard 60°
Inch-Metric:	Metric
Range:	25 - 50 mm
Graduation:	0,01 mm
Spindle feed error:	3 µm
Measuring face:	Interchangeable anvil/spindle inserts (optional)
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Mass:	290 g
