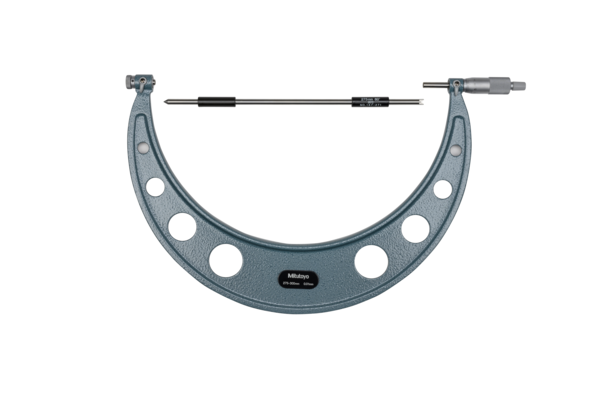

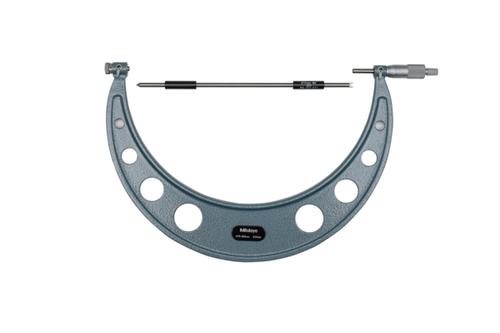

Screw Thread Micrometer Interchangeable Tips, 275-300mm 126-136

Roll over image to zoom in Click on image to zoom

Screw Thread Micrometer Interchangeable Tips, 275-300mm 126-136

Name: Screw Thread Micrometer Interchangeable Tips, 275-300mm 126-136
Brand: Mitutoyo
SKU: 126-136
Price: 672.0 GBP
Availability: InStock

MitutoyoSKU: 126-136

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£672.00 £921.00

Quantity:

All prices exclude VAT, which will be added at checkout.

This Screw Thread Micrometer should be used with optional, interchangeable, anvils/spindle-tips that allow you to measure a wide range of metric/unified and Whitworth screw-thread pitch diameters.

A metric (unified) 60º setting standard is included with all models except those measuring range from 0-25 mm.

Product Information
Part Number	126-136
Measuring Ranges	275-300mm
Graduation	.01mm
Accuracy	+/_.003mm
Unit of Measurement	Metric
Display Type	Analogue
Measuring Force	5-10N
Type	Thread
Constant Force Device	Ratchet Stop
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard 60°
Inch-Metric:	Metric
Range:	275 - 300 mm
Graduation:	0,01 mm
Spindle feed error:	3 µm
Measuring face:	Interchangeable anvil/spindle inserts (optional)
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Mass:	1540 g
