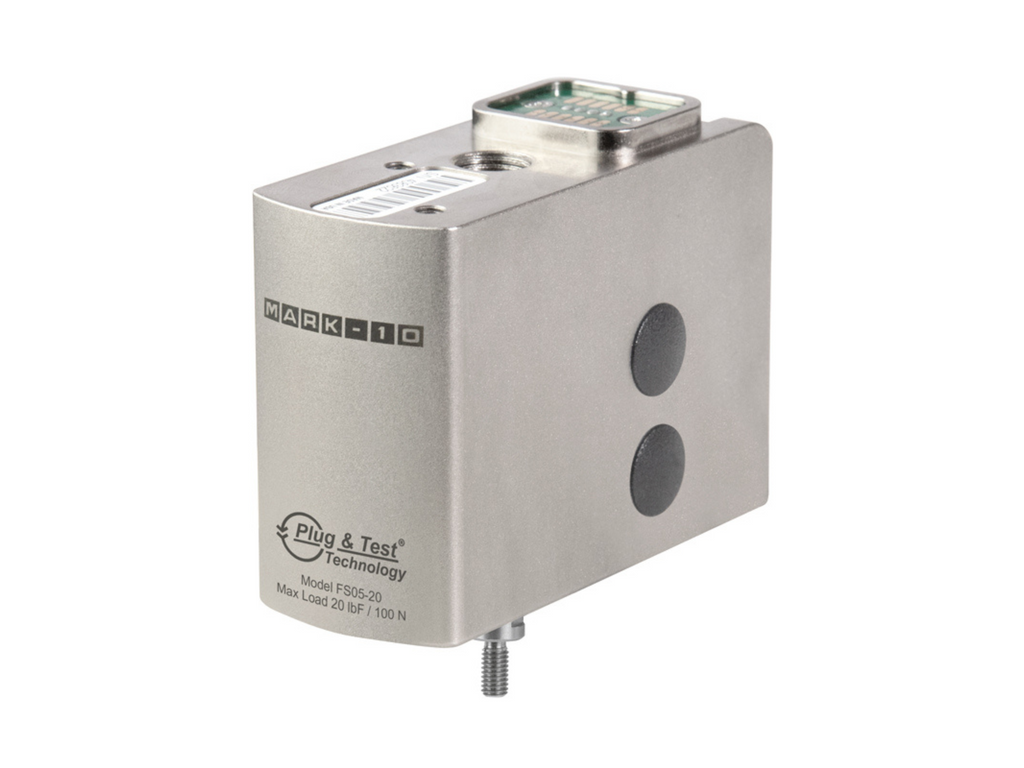

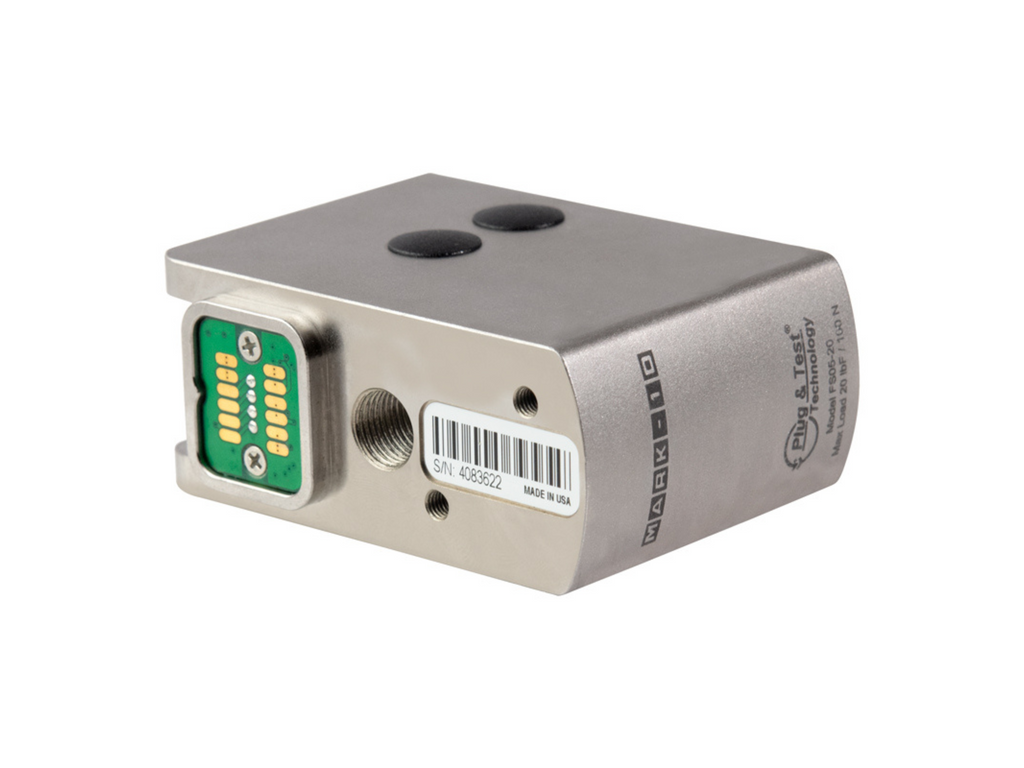

Mark-10 Series FS05 Tension and Compression Force Sensors

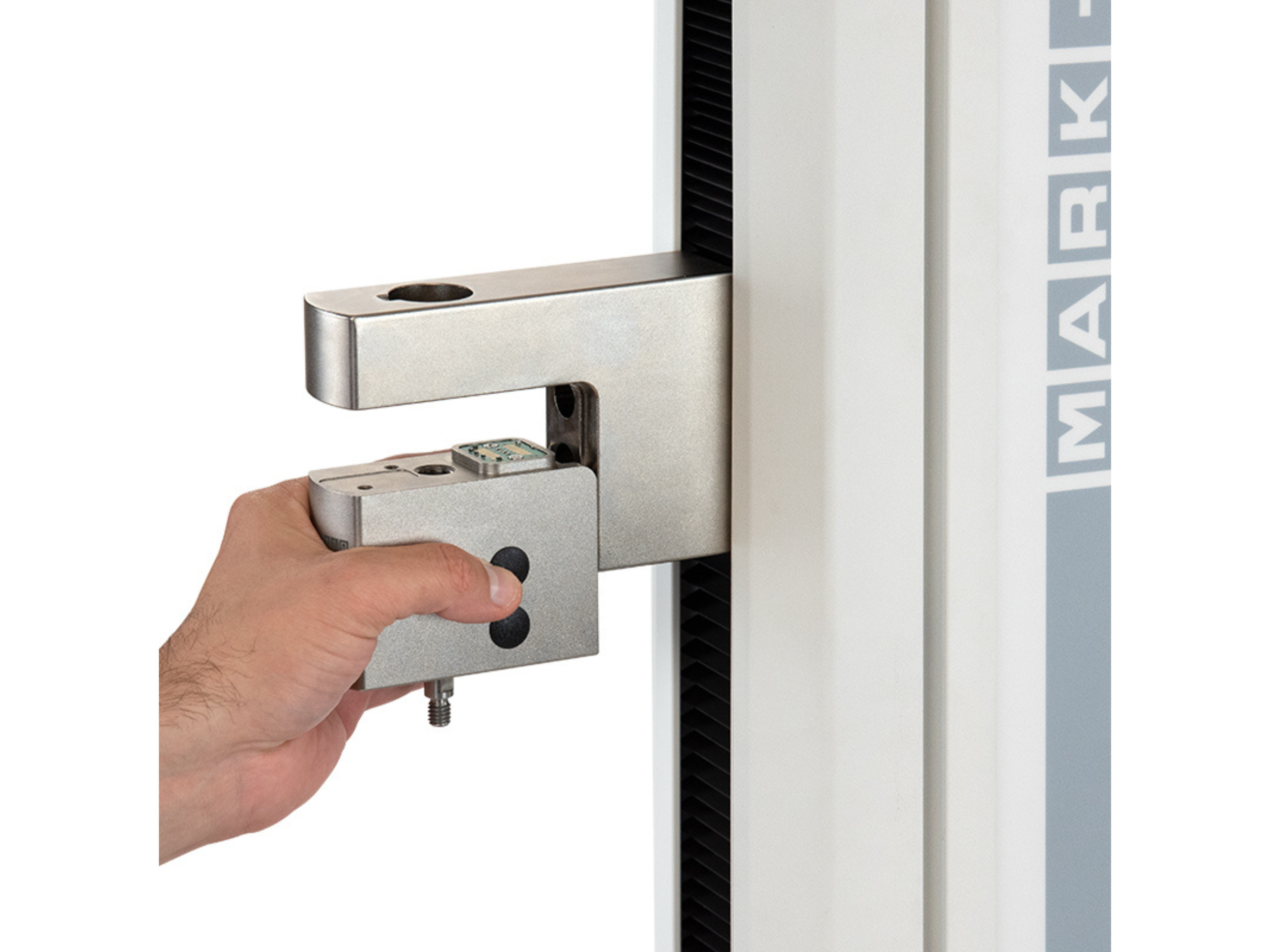

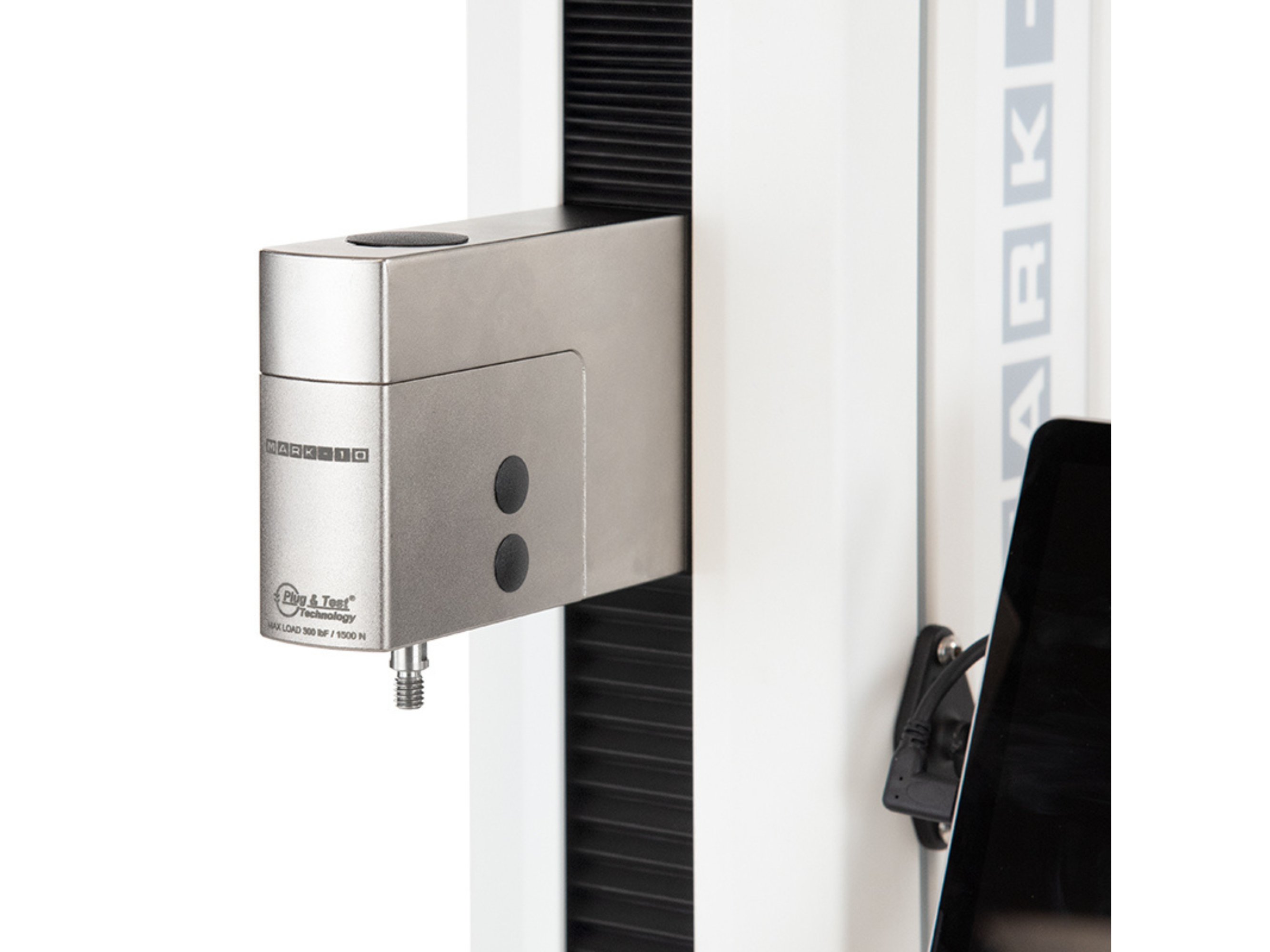

Series FS05 force sensors measure tension and compression forces. They mount directly to the crosshead of models F105, F305, F505 and F505H test frames, for a clean, integrated look.

With Plug & Test® technology, all configuration and calibration data is saved within the sensor, allowing it to be calibrated on the test frame or off-site with a Mark-10 indicator (optional adapter: AC1083 required ). Ranges available from 0.12 to 500 lbF [0.5 N to 2.5 kN].

Note: An AC1083 Adaptor is required to use FS05 force sensors with the following test frames: F755 ,F755S, F1505 and F1505S
