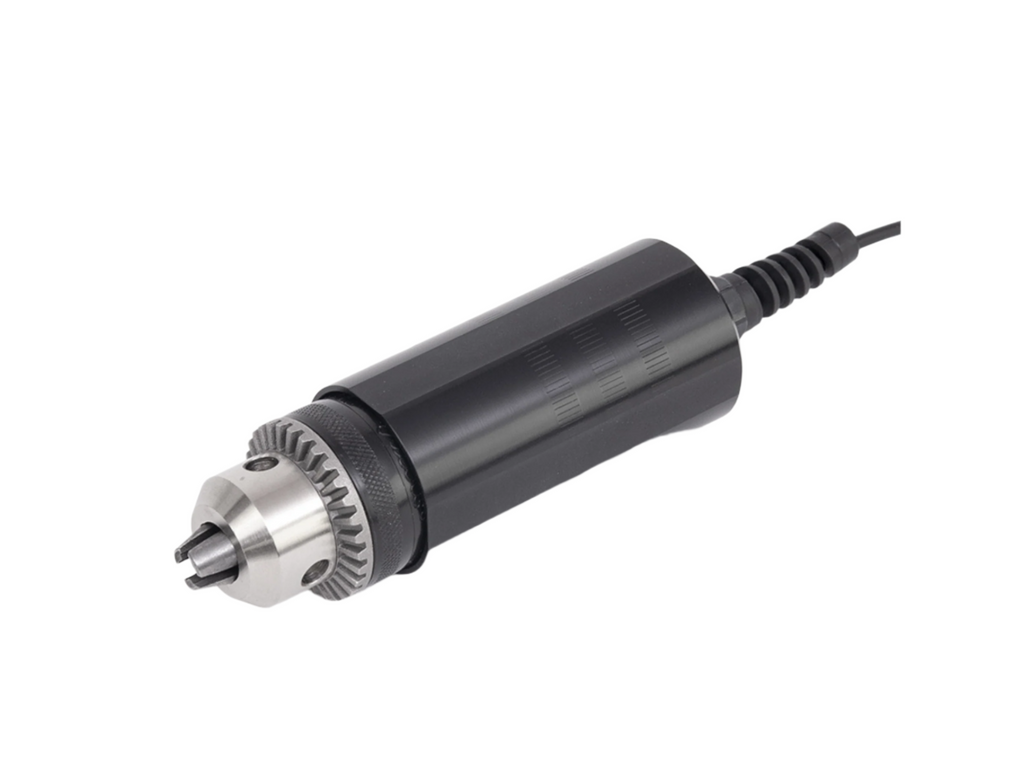

Mark-10 Series R50 Universal Torque Sensor MR50-100

Series R50 Universal Torque Sensors

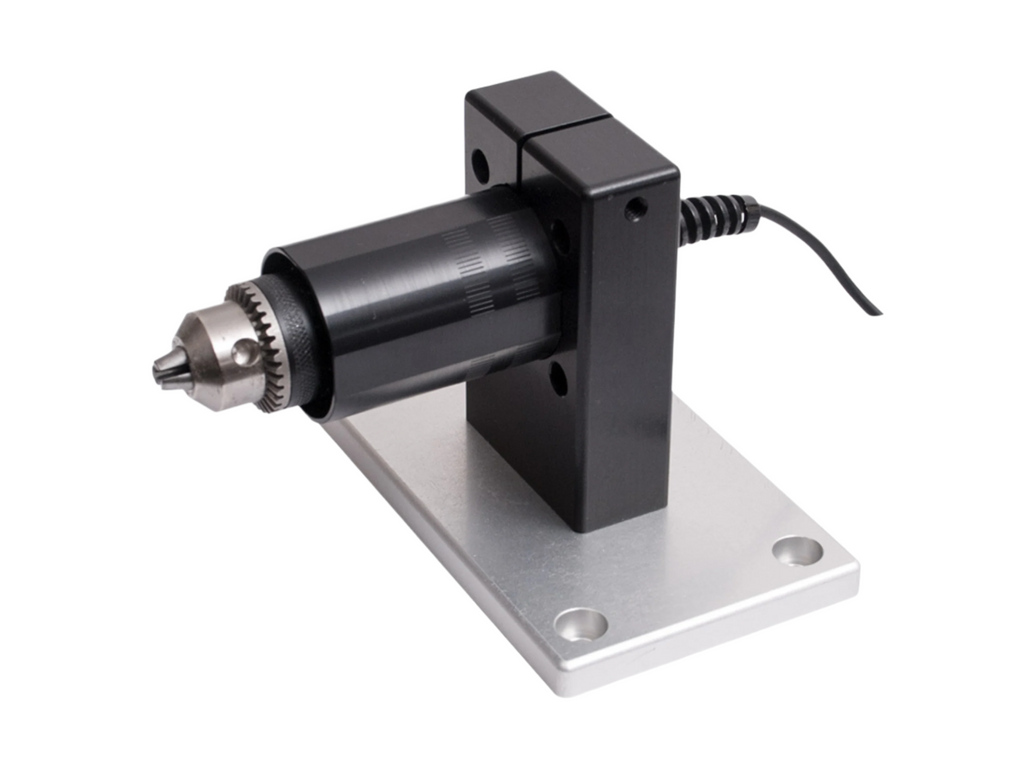

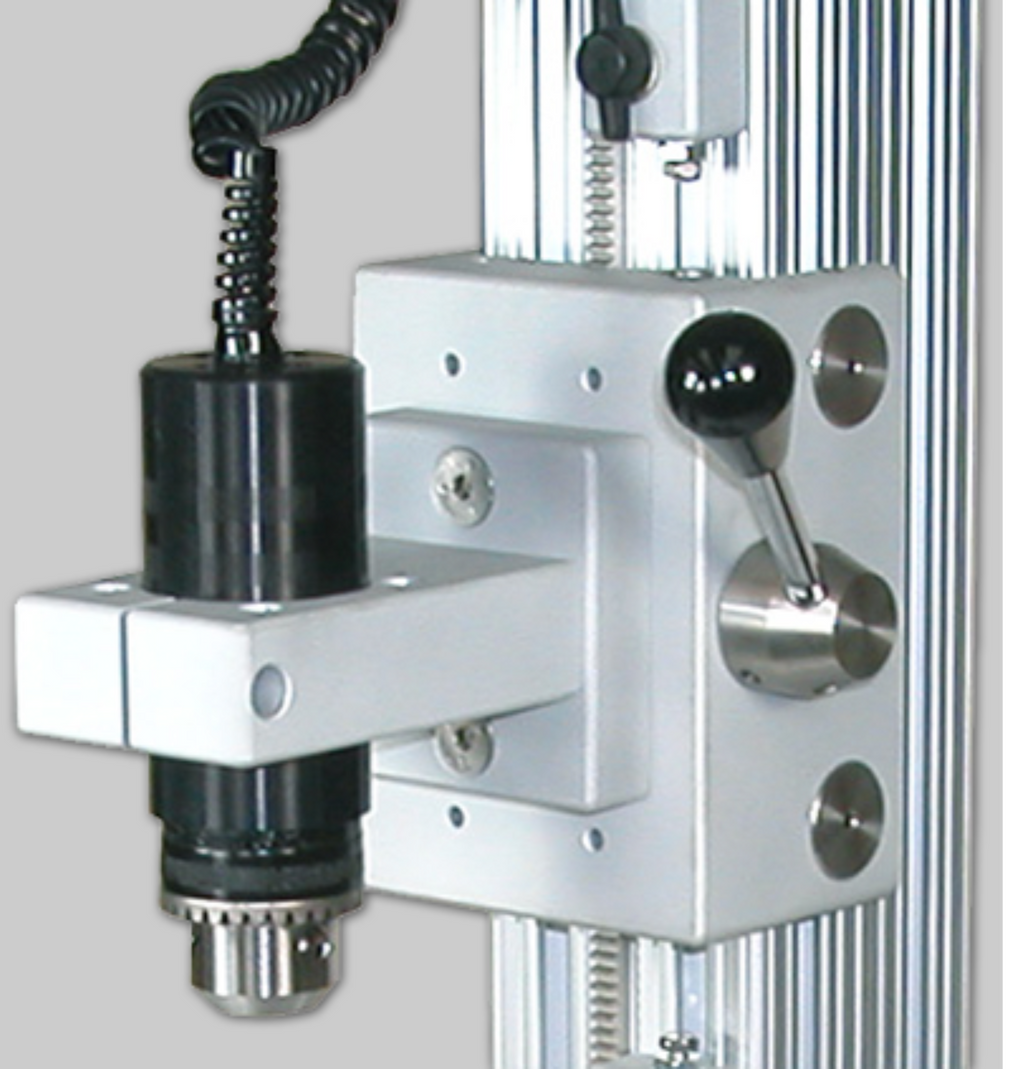

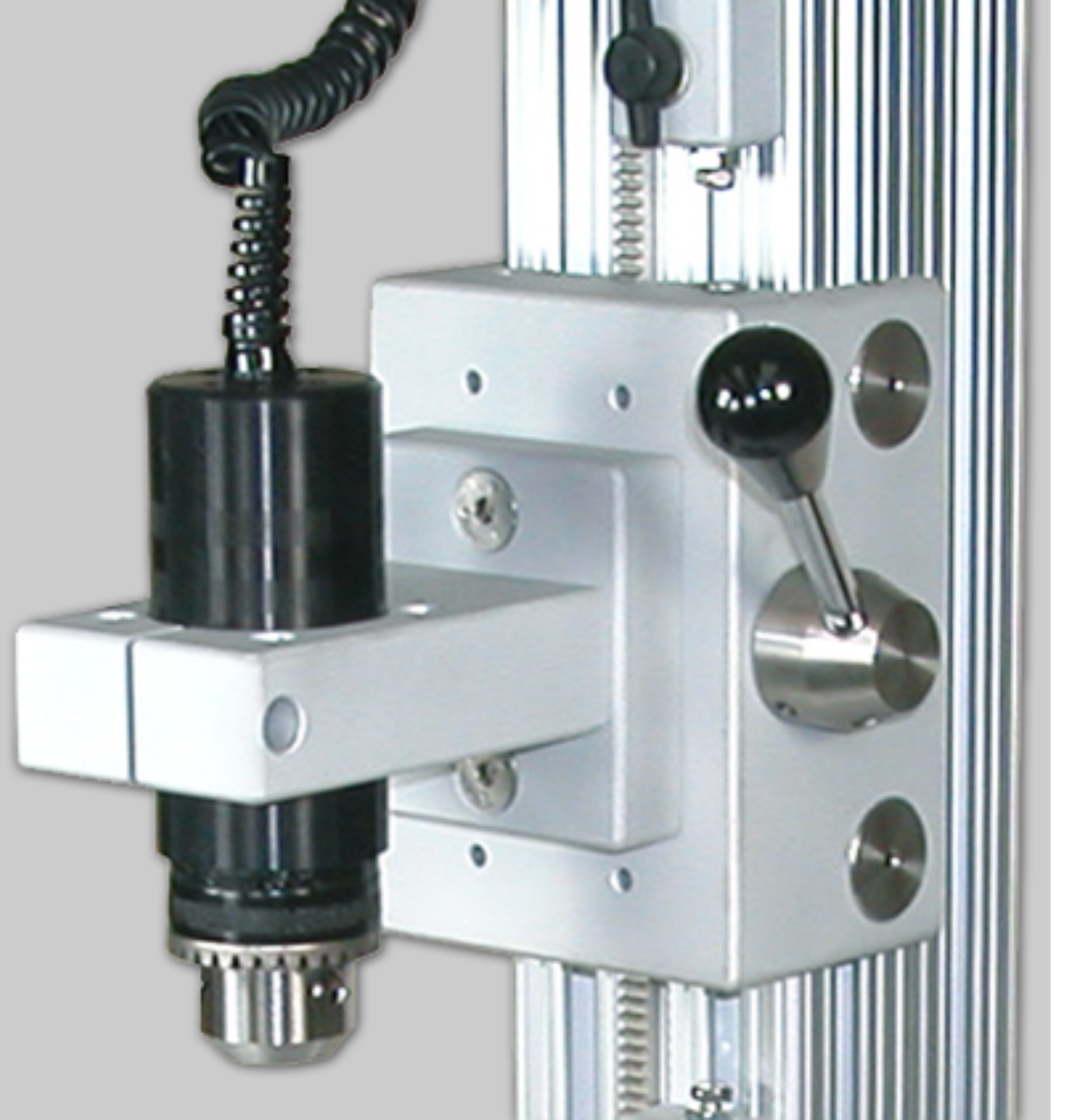

Measure bi-directional torque for a wide variety of applications. Contains a chuck for samples up to 1/2" (12.7 mm) diameter, depending on capacity. The sensor can be used as a hand held device, or mounted to a torque test stand. Capacities available from 10 ozFin to 100 lbFin (7 to 1,150 Ncm).

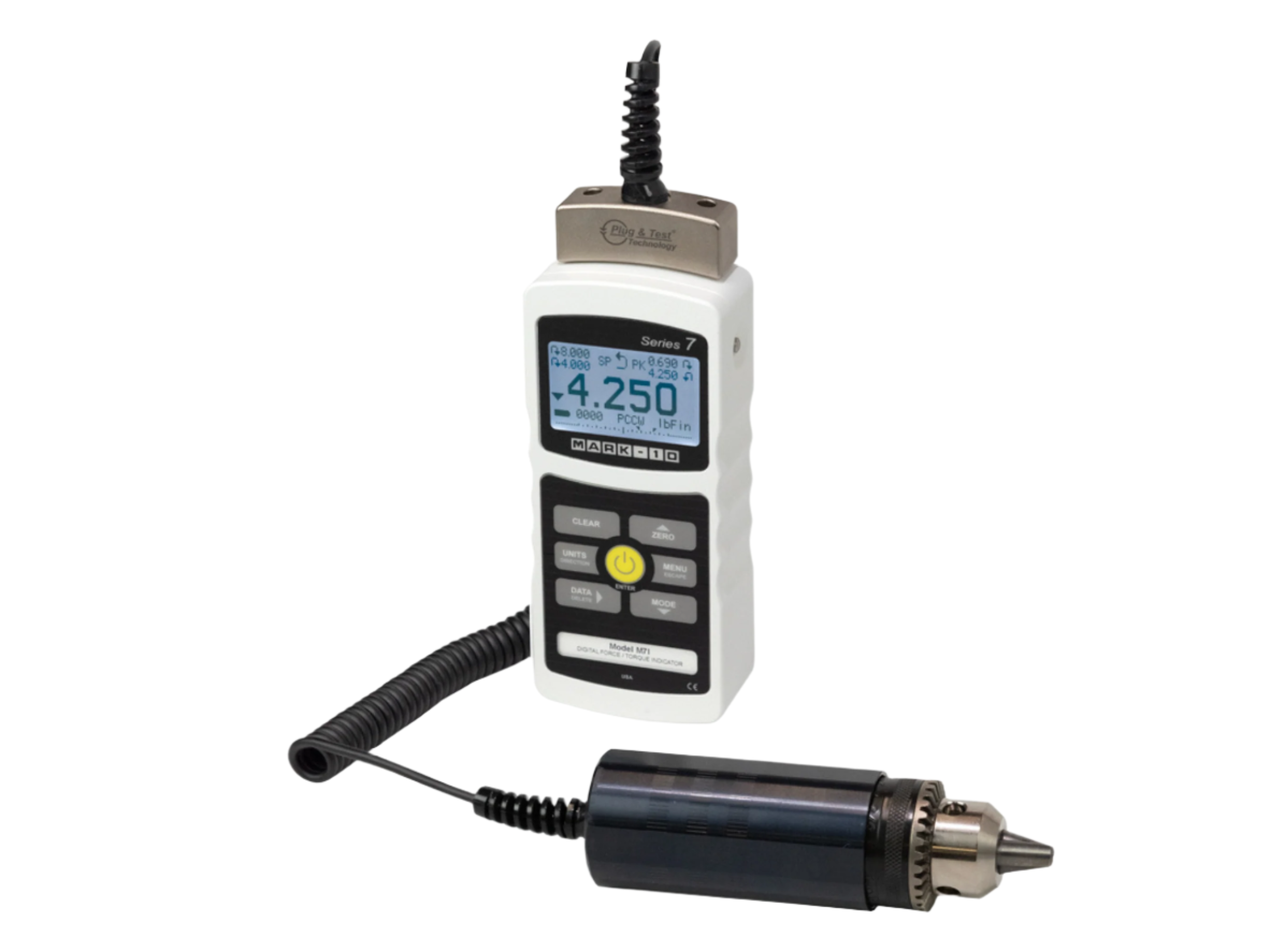

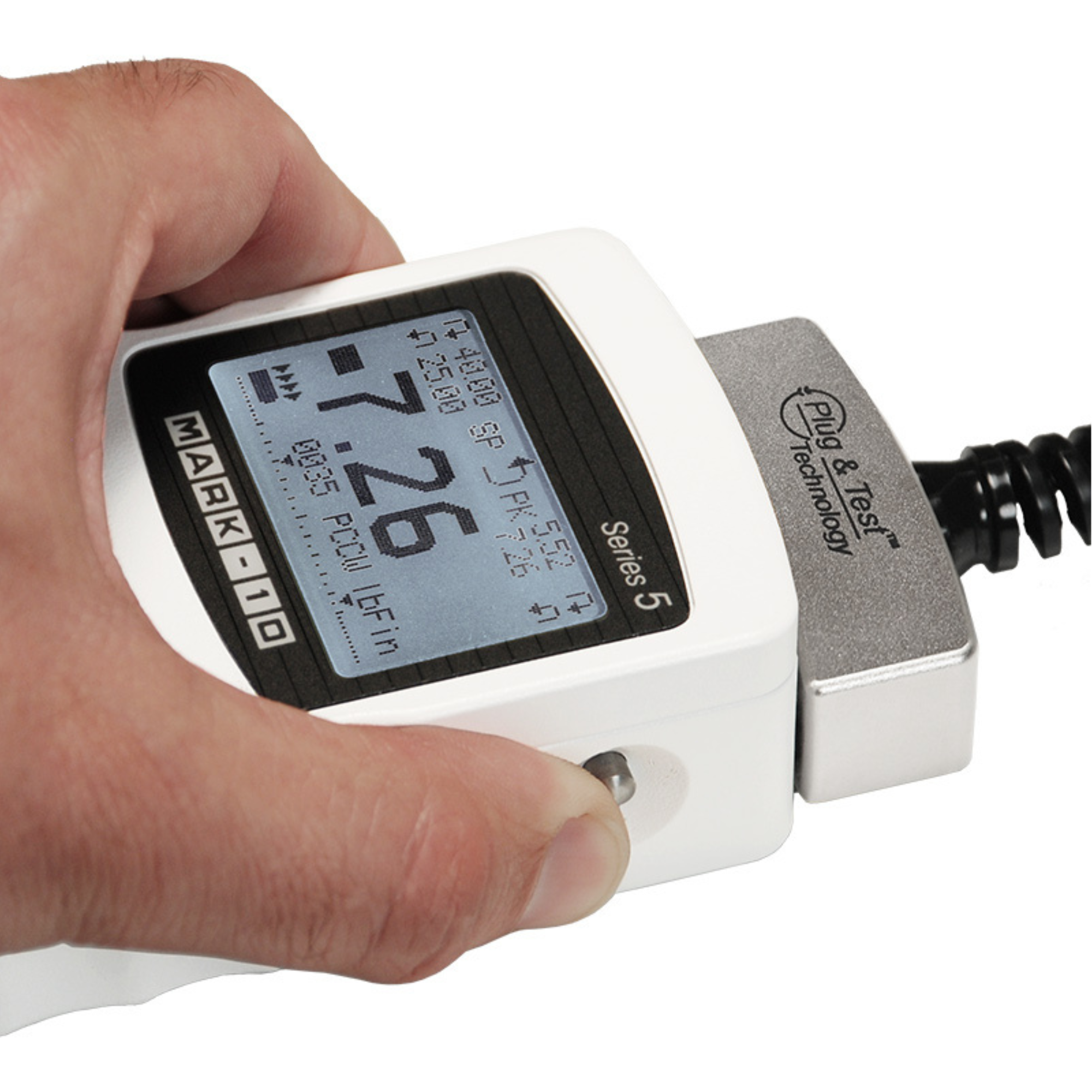

Requires a Mark-10 indicator, available separately.

Features

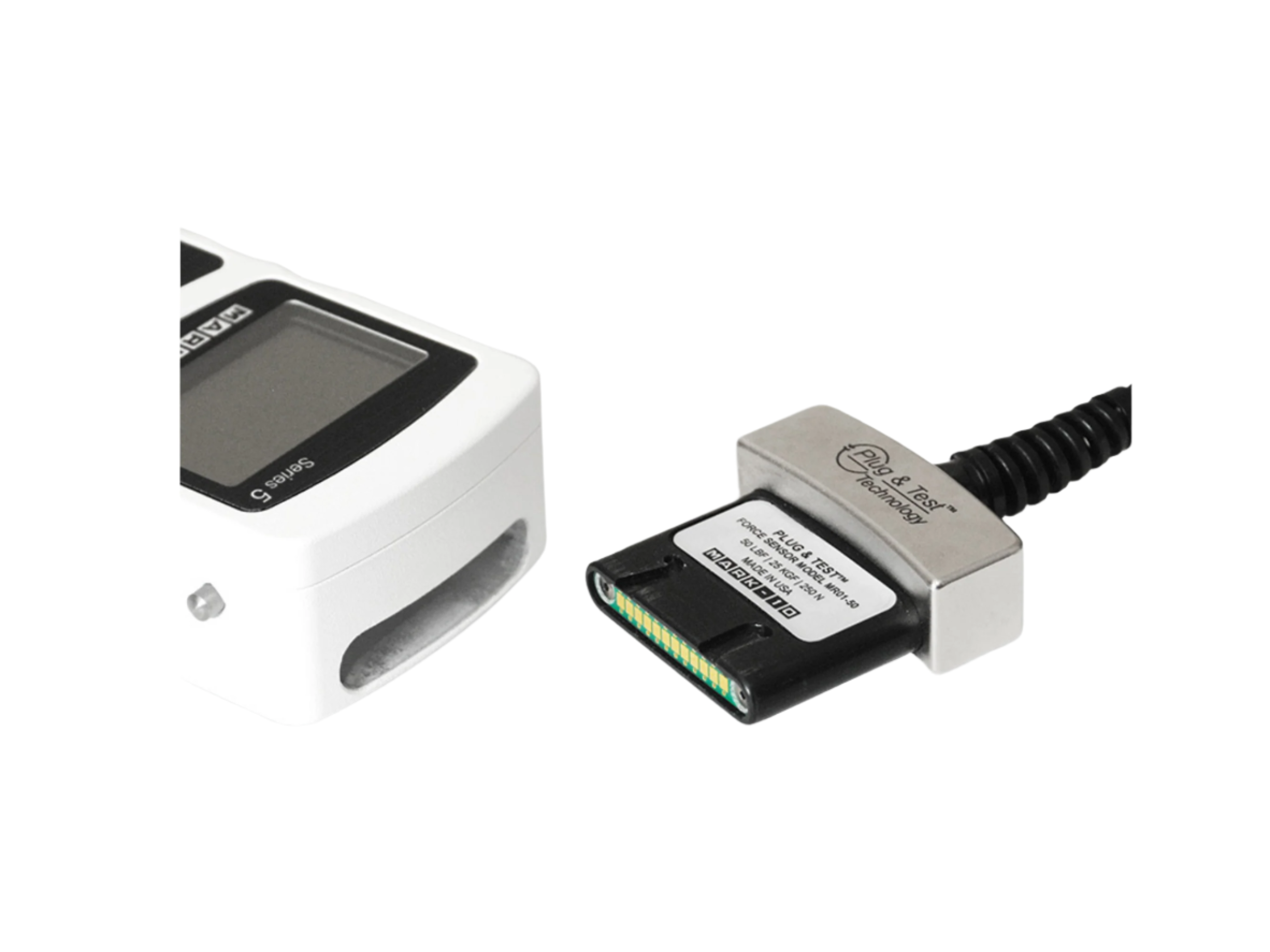

• Member of the Plug & Test^® family of interchangeable sensors and indicators
• Rugged aluminum housing
• NIST-traceable certificate of calibration with data is included. If the sensor is ordered with an indicator, a certificate for the set (indicator + sensor) can be supplied upon request, at no additional charge.
• Warranty: 3 years

All images are for representation only.
