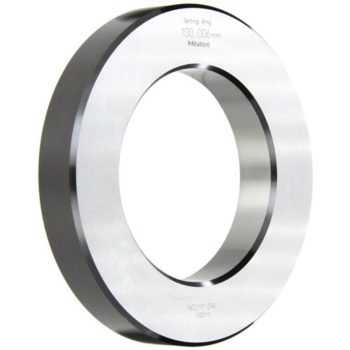

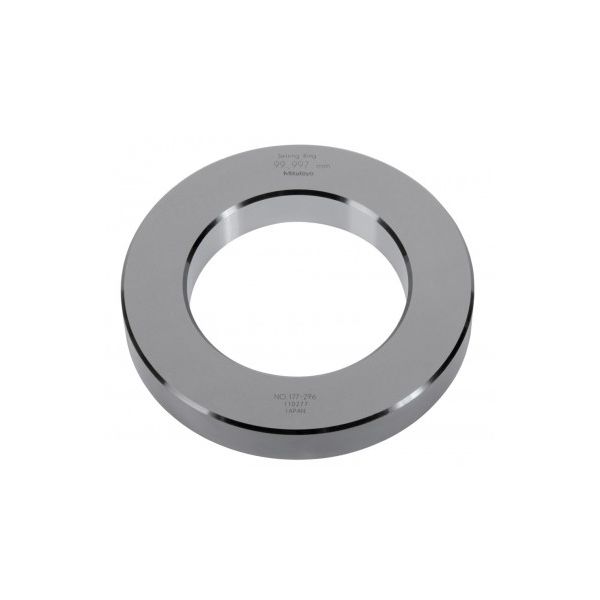

Setting Ring 100mm 177-296

Name: Setting Ring 100mm 177-296
Brand: Mitutoyo
SKU: 177-296
Price: 337.4 GBP
Availability: InStock

MitutoyoSKU: 177-296

All prices exclude VAT, which will be added at checkout.

Price:

£337.40 £482.00

Quantity:

The Mitutoyo 177-296 Steel Setting Ring has the following specifications:

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	177-296
Measuring Range	100mm
Material	Steel
Size	100mm
Roundness	2µm
Size Warranted Calibration Surface K(mm)	27.5mm
Distance From the Side Face H	4.2mm
Uncertainty of Marked Diameter Value µm	±1.5µm
Tolerance Between Nominal size and Actual Diameter	±20µm
Thickness	25mm
Calibration Code	CAL37 B3

Description
