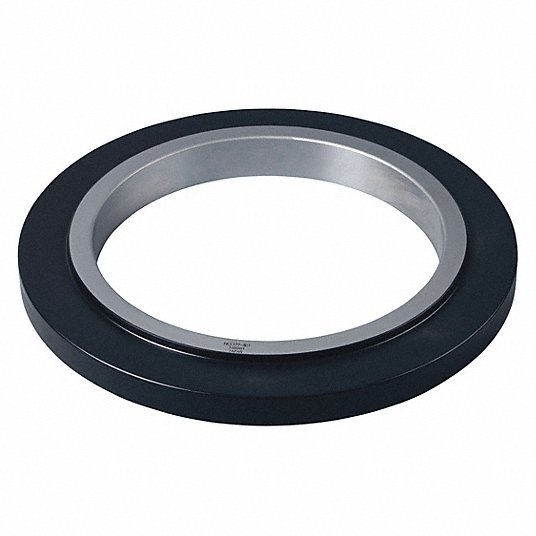

Setting Ring 12" 177-313

Name: Setting Ring 12" 177-313
Brand: Mitutoyo
SKU: 177-313
Price: 2270.0 GBP
Availability: InStock

MitutoyoSKU: 177-313

List price: £3,110.00 Offer price: £2,270.00 Excluding VAT

Quantity:

Optional Services

UKAS Accredited Calibration +£25.00 Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.

Professional Laser Marking by Automator Lasers Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Number of items to be laser marked

Overview Technical Information Applications Videos & Documents

The Mitutoyo 177-313 Steel Setting Ring has the following specifications:

Type: B
Nominal Size: 12?
Tolerance Between Nominal and Actual Diameter: +/- .0008?
Uncertainty of Marked Diameter Value: +/- .0001?
Roundness/Cylindricity: .00012?
Distance from the Side Face (H): 5.00mm
Side of Warranted Calibration Surface (K): 28.10mm
Outside Diameter: 438.00mm
E Dimension for Type B: 340.00mm
Thickness: 38.1m/25.4mm

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Setting Ring 12" 177-313 Click to open the PDF document
