Setting Ring 12mm 177-425 Ceramic

Name: Setting Ring 12mm 177-425 Ceramic
Brand: Mitutoyo
SKU: 177-425
Price: 193.0 GBP
Availability: InStock

MitutoyoSKU: 177-425

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£193.00 £264.00

Quantity:

All prices exclude VAT, which will be added at checkout.

Used for quick and accurate setting of 2-Point Inside Measuring Instruments and 2-Point/3-Point Inside Micrometers
Nominal diameter is marked in 0,001 mm increments
Steel Setting Rings are available from 1 mm up to 300 mm and Ceramic Setting Rings from 4 mm up to 45 mm

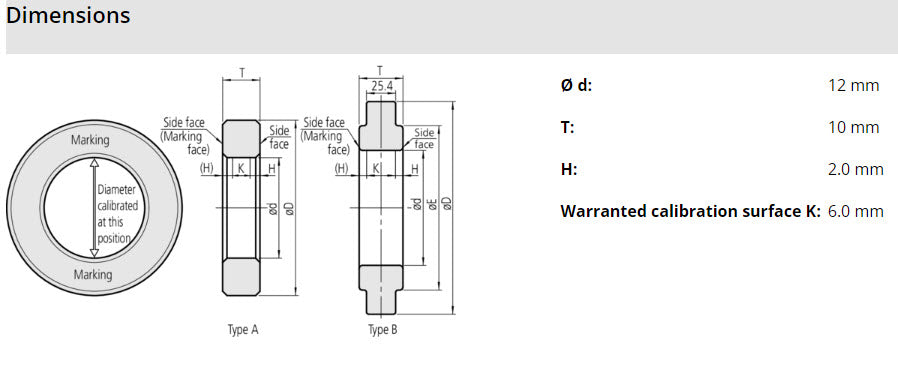

Inch-Metric:	Metric
Nominal size ød:	12 mm
Type:	A
Material:	Ceramic
Delivered:	Without certificate of inspection
Tolerance nominal size / marked diameter:	±10.0 µm
Uncertainty of marked diameter:	1.5 µm
Roundness / Cylindricity:	1.0 µm
