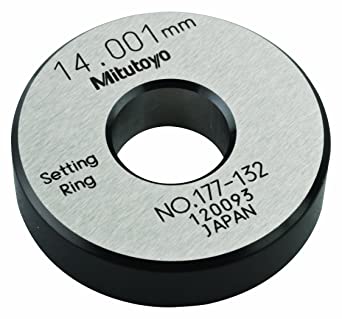

Setting Ring 14mm 177-132

Name: Setting Ring 14mm 177-132
Brand: Mitutoyo
SKU: 177-132
Price: 89.0 GBP
Availability: InStock

MitutoyoSKU: 177-132

List price: £122.00 Offer price: £89.00 Excluding VAT

Quantity:

Optional Services

UKAS Accredited Calibration +£40.00 Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.

Professional Laser Marking by Automator Lasers Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Number of items to be laser marked

Overview Technical Information Applications Videos & Documents

The Mitutoyo 177-132 Steel Setting Ring has the following specifications:

Nominal Size: 14mm
Tolerance Between Nominal and Actual Diameter: +/- .010mm
Uncertainty of Marked Diameter Value: +/- .0015mm
Roundness/Cylindricity: .001mm
Distance from the Side Face (H): 2mm
Side of Warranted Calibration Surface (K): 6mm
Outside Diameter: 38mm
E Dimension for Type B: N/A
Thickness: 10mm
Type: A

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Setting Ring 14mm 177-132 Click to open the PDF document
