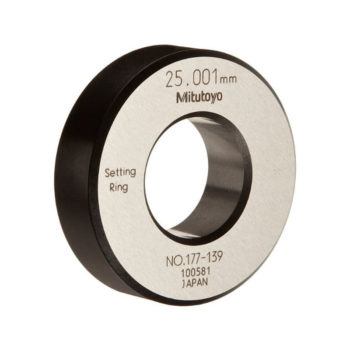

Setting Ring 25mm 177-139 Steel

Name: Setting Ring 25mm 177-139 Steel
Brand: Mitutoyo
SKU: 177-139
Price: 104.0 GBP
Availability: InStock

MitutoyoSKU: 177-139

List price: £142.00 Offer price: £104.00 Excluding VAT

Quantity:

Optional Services

UKAS Accredited Calibration +£25.00 Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.

Professional Laser Marking by Automator Lasers Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Number of items to be laser marked

Overview Technical Information Applications Videos & Documents

177-139 Mitutoyo Steel Setting Ring – 25mm

The Mitutoyo 177-139 Steel Setting Ring has the following specifications:

Nominal Size: 25mm
Tolerance Between Nominal and Actual Diameter: +/- .010mm
Uncertainty of Marked Diameter Value: +/- .0015mm
Roundness/Cylindricity: .001mm
Distance from the Side Face (H): 3.2mm
Side of Warranted Calibration Surface (K): 8.6mm
Outside Diameter: 53mm
E Dimension for Type B: N/A
Thickness: 15mm
Type: A

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Setting Ring 25mm 177-139 Steel Click to open the PDF document
