Setting Ring 25mm 177-430 Ceramic
Setting Ring 25mm 177-430 Ceramic
Setting Ring 25mm 177-430 Ceramic
Roll over image to zoom in Click on image to zoom
Setting Ring 25mm 177-430 CeramicSetting Ring 25mm 177-430 CeramicSetting Ring 25mm 177-430 Ceramic

Setting Ring 25mm 177-430 Ceramic

MitutoyoSKU: 177-430
List price: £312.00 Offer price: £228.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item
  • Used for quick and accurate setting of 2-Point Inside Measuring Instruments and 2-Point/3-Point Inside Micrometers
  • Nominal diameter is marked in 0,001 mm increments
  • Steel Setting Rings are available from 1 mm up to 300 mm and Ceramic Setting Rings from 4 mm up to 45 mm
Features
Inch-Metric:
Metric

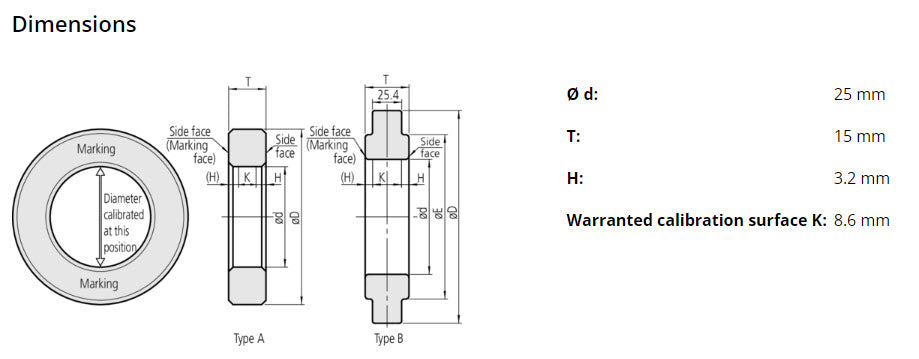

Nominal size ød:
25 mm
Type:
A
Material:
Ceramic
Delivered:
Without certificate of inspection
Tolerance nominal size / marked diameter:
±10.0 µm
Uncertainty of marked diameter:
1.5 µm
Roundness / Cylindricity:
1.0 µm

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document 1 Setting Ring 25mm 177-430 Ceramic Click to open the PDF document
Product Document 2 Setting Ring 25mm 177-430 Ceramic Click to open the PDF document
