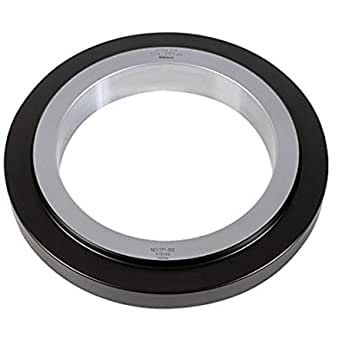

Setting Ring 300mm 177-312

Name: Setting Ring 300mm 177-312
Brand: Mitutoyo
SKU: 177-312
Price: 2270.0 GBP
Availability: InStock

MitutoyoSKU: 177-312

List price: £3,110.00 Offer price: £2,270.00 Excluding VAT

Quantity:

Optional Services

UKAS Accredited Calibration +£25.00 Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.

Professional Laser Marking by Automator Lasers Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Number of items to be laser marked

Overview Technical Information Applications Videos & Documents

The Mitutoyo 177-312 Steel Setting Ring has the following specifications:

Type: B
Nominal Size: 300mm
Tolerance Between Nominal and Actual Diameter: +/- .02mm
Uncertainty of Marked Diameter Value: +/- .0025mm
Roundness/Cylindricity: .003mm
Distance from the Side Face (H): 5.3mm
Side of Warranted Calibration Surface (K): 27.7mm
Outside Diameter: 438mm
E Dimension for Type B: 340mm
Thickness: 38.1mm/25.4mm

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Setting Ring 300mm 177-312 Click to open the PDF document
