Setting Ring 45mm 177-178

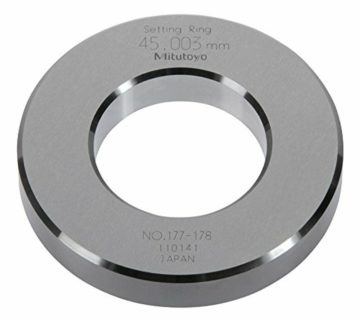

177-178 Mitutoyo Steel Setting Ring – 45mm

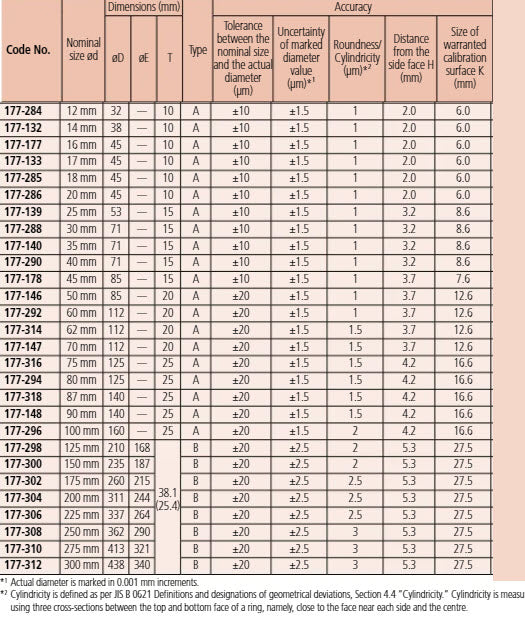

The Mitutoyo 177-178 Steel Setting Ring has the following specifications:

• Nominal Size: 45mm
• Tolerance Between Nominal and Actual Diameter: +/- .010mm
• Uncertainty of Marked Diameter Value: +/- .0015mm
• Roundness/Cylindricity: .001mm
• Distance from the Side Face (H): 3.7mm
• Side of Warranted Calibration Surface (K): 7.6mm
• Outside Diameter: 85mm
• E Dimension for Type B: N/A
• Thickness: 15mm
• Type: A
