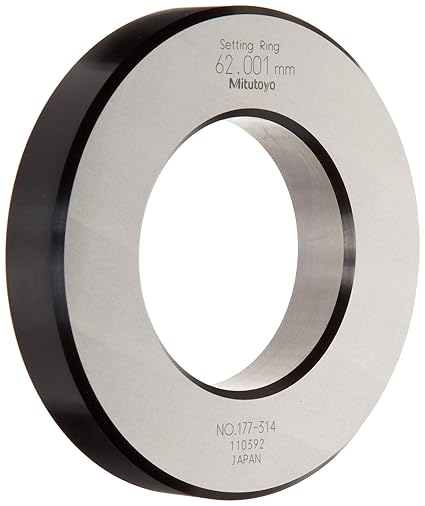

Setting Ring 62mm 177-314

Name: Setting Ring 62mm 177-314
Brand: Mitutoyo
SKU: 177-314
Price: 199.0 GBP
Availability: InStock

MitutoyoSKU: 177-314

List price: £273.00 Offer price: £199.00 Excluding VAT

Quantity:

Optional Services

UKAS Accredited Calibration +£30.00 Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.

Professional Laser Marking by Automator Lasers Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Number of items to be laser marked

Overview Technical Information Applications Videos & Documents

The Mitutoyo 177-314 Steel Setting Ring has the following specifications:

Nominal Size: 62mm
Tolerance Between Nominal and Actual Diameter: +/- .020mm
Uncertainty of Marked Diameter Value: +/- .0015mm
Roundness/Cylindricity: .0015mm
Distance from the Side Face (H): 3.7mm
Side of Warranted Calibration Surface (K): 12.6mm
Outside Diameter: 112mm
E Dimension for Type B: N/A
Thickness: 20mm
Type: A

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Setting Ring 62mm 177-314 Click to open the PDF document
