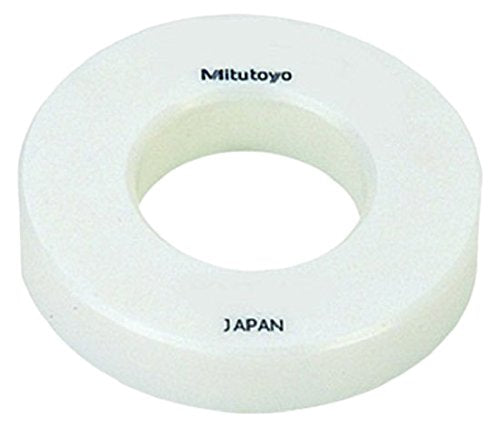

Setting Ring 6mm 177-420 Ceramic

Name: Setting Ring 6mm 177-420 Ceramic
Brand: Mitutoyo
SKU: 177-420
Price: 179.0 GBP
Availability: InStock

MitutoyoSKU: 177-420

All prices exclude VAT, which will be added at checkout.

Price:

£179.00 £263.00

Quantity:

Used for quick and accurate setting of 2-Point Inside Measuring Instruments and 2-Point/3-Point Inside Micrometers
Nominal diameter is marked in 0,001 mm increments

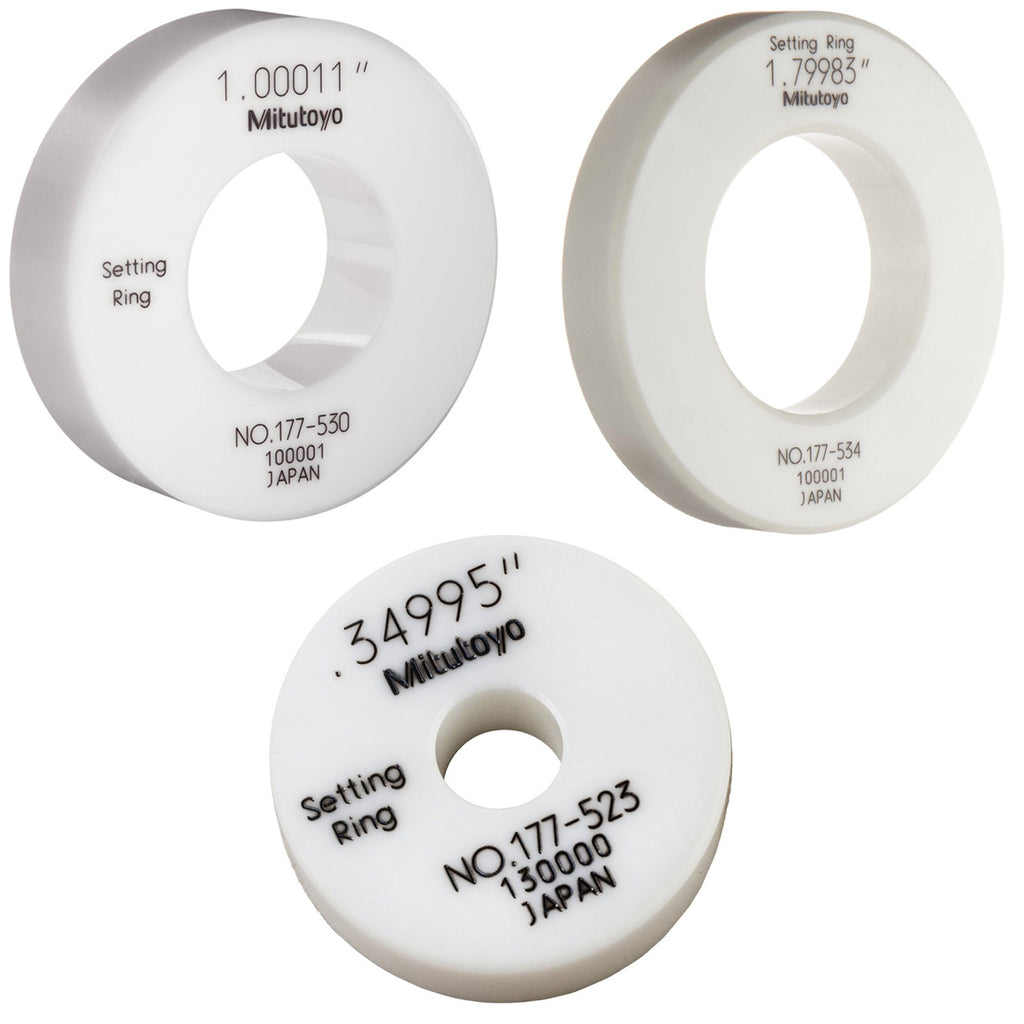

Steel Setting Rings are available from 1 mm up to 300 mm and Ceramic Setting Rings from 4 mm up to 45 mm

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

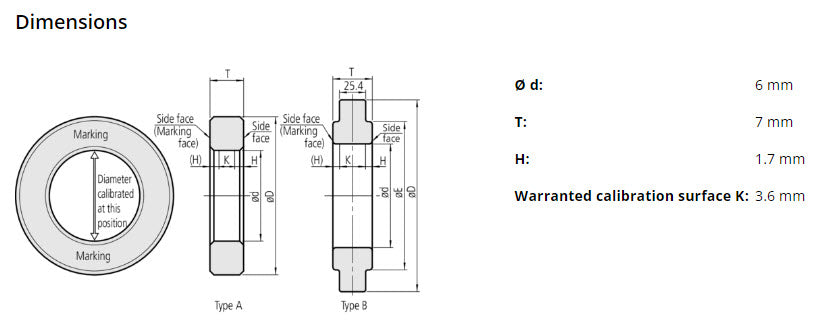

Inch-Metric:	Metric
Nominal size ød:	6 mm
Type:	A
Material:	Ceramic
Delivered:	Without certificate of inspection
Tolerance nominal size / marked diameter:	±10.0 µm
Uncertainty of marked diameter:	1.5 µm
Roundness / Cylindricity:	1.0 µm

Description
