Sheet Metal Micrometer 0-1", Flat Anvil/Spindle, 12" Throat 118-107

Roll over image to zoom in Click on image to zoom

Sheet Metal Micrometer 0-1", Flat Anvil/Spindle, 12" Throat 118-107

Name: Sheet Metal Micrometer 0-1", Flat Anvil/Spindle, 12" Throat 118-107
Brand: Mitutoyo
SKU: 118-107
Price: 216.3 GBP
Availability: InStock

MitutoyoSKU: 118-107

All prices exclude VAT, which will be added at checkout.

Price:

£216.30 £309.00

Quantity:

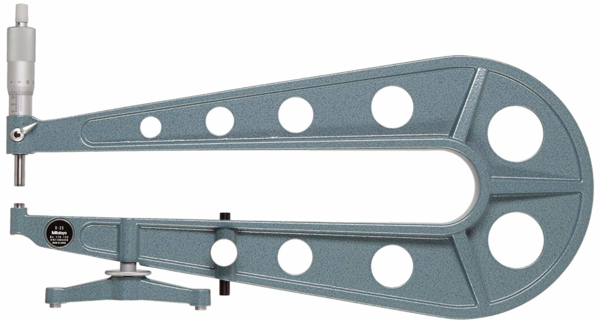

A Mitutoyo non-digital micrometer provided with a deep frame to enable measurement of sheet metal thickness farther from the edge of a sheet than is possible with a standard micrometer. A ratchet stop guarantees repeatable measurement.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	118-107
Measuring Range	0-1"
Graduation	.001"
Accuracy	+/-.00025"
Unit of Measurement	Inch
Measuring Force	8+/-0.8N
Type	Sheet Metal
Constant Force Device	Ratchet Stop
Flatness	.000024"
Parallelism	.00016"
Anvils & Spindle Design	Flat Anvil & Flat Spindle Type A (F-F)
Calibration Code	CAL9 B1

Digital/Analog:	Analog
Delivered:	Including box, spanner
Inch-Metric:	Inch
Range:	0 - 1 "
Graduation:	0,001"
Max. Permissible Error J MPE:	±0,00025"
Parallelism:	0,00012"
Measuring face:	Carbide-tipped, micro-lap finish
Anvil / Spindle:	Type A, flat/flat
Measuring spindle:	With spindle lock, throat depth ≤ 150 mm : ø6,35 mm throat depth =300 mm : ø8 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø21 mm
Measuring force:	10 - 14 N
Delivered:	Including box, key, setting standard (from 25 mm upward)
Mass:	2650 g
