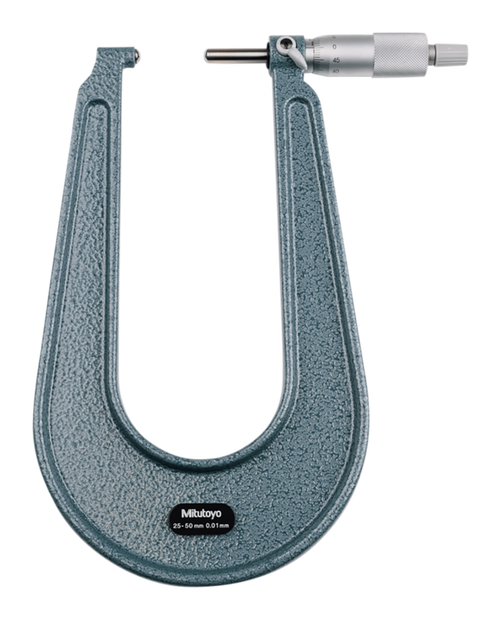

Sheet Metal Micrometer 25-50mm, Flat Anvil/Spindle, 150mm" Throat 118-126 Type C (S-S)

MitutoyoSKU: 118-126

List price: Regular price£269.00 Offer price: Sale price£188.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Calibration Micrometer Setting Rod ≤ 100mm
£10.00 per setting standard
The setting standard is calibrated separately from the micrometer.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Please check before engraving: New gauges engraved to your requirements cannot be returned for credit if ordered incorrectly or no longer required. Please confirm the gauge specification and marking details before ordering. This does not affect your rights if the goods are faulty or incorrectly supplied.

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10
Part number: 156-101-10  → View product
Mitutoyo Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10
Part number: 156-105-10  → View product
MMI-10 Micrometer Checker Metric 10-piece Set 2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2,22.8 & 25.0 mm
Part number: MMI-10  → View product
MMI-8 Micrometer Checker Metric Metric 8-pieces set 3.1, 6.5, 9.7, 12.5, 15.8, 19.0, 21.9 & 25.0 mm
Part number: MMi-8  → View product
Mitutoyo 516-106-10 10 Blocks Micrometer Inspection Gauge Block Set Grade 0
Part number: 516-106-10  → View product

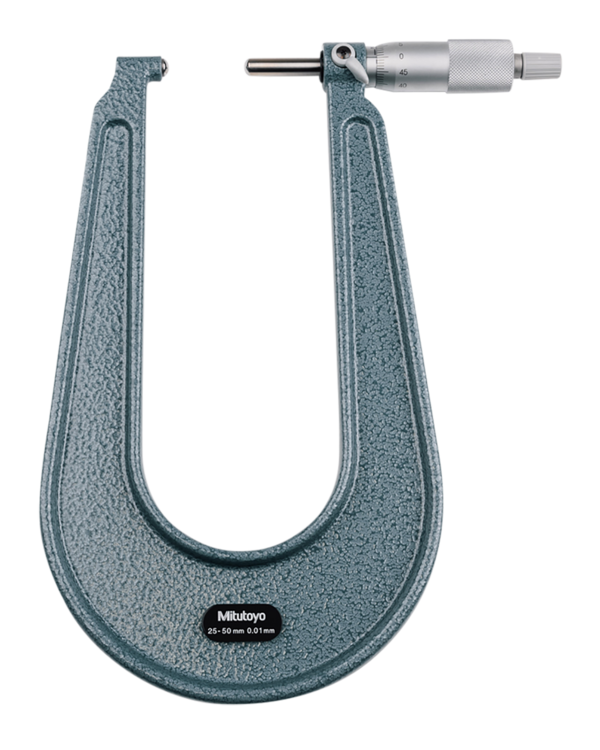

Sheet Metal Micrometer

A Mitutoyo non-digital micrometer provided with a deep frame to enable measurement of sheet metal thickness farther from the edge of a sheet than is possible with a standard micrometer. A ratchet stop guarantees repeatable measurement.

  • Range: 25-50mm
  • Resolution: 0.01mm
  • Accuracy: ± 0.004mm
  • Flatness: 0.0006mm
  • Parallelism: 0.003mm
  • Measuring force: 8N or less
  • Anvil Type: C, Spherical/spherical
  • Throat depth: 150mm
  • Measuring face: Carbide-tipped, micro-lap finish
  • Thimble and Sleeve scale satin chrome finish ø18mm
  • With spindle lock: 6.35mm diameter, spindle pitch 0.5 mm
  • Ratchet Stop

No technical information is currently available.

No application information is currently available.
