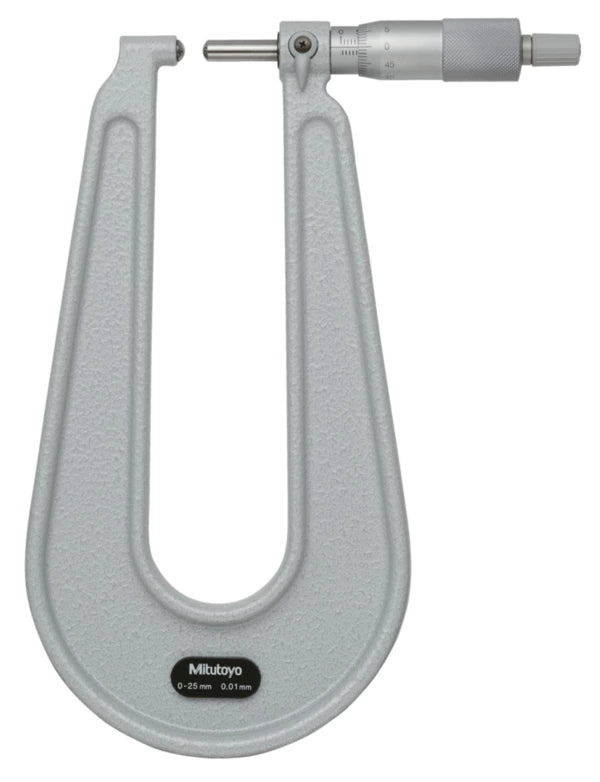

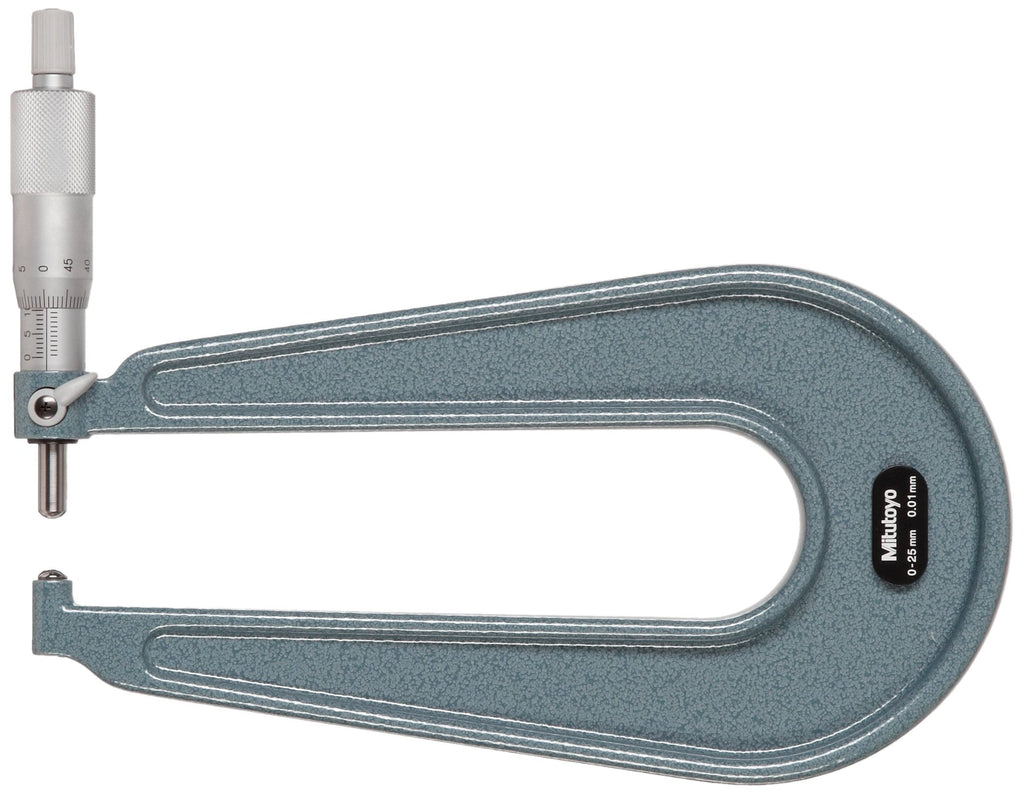

Sheet Metal Micrometer 0-25mm, Spherical Anvil/Spindle, 6" Throat 118-118 Type C (S-S)

Roll over image to zoom in Click on image to zoom

Sheet Metal Micrometer 0-25mm, Spherical Anvil/Spindle, 6" Throat 118-118 Type C (S-S)

Name: Sheet Metal Micrometer 0-25mm, Spherical Anvil/Spindle, 6" Throat 118-118 Type C (S-S)
Brand: Mitutoyo
SKU: 118-118
Price: 169.4 GBP
Availability: InStock

MitutoyoSKU: 118-118

All prices exclude VAT, which will be added at checkout.

Price:

£169.40 £242.00

Quantity:

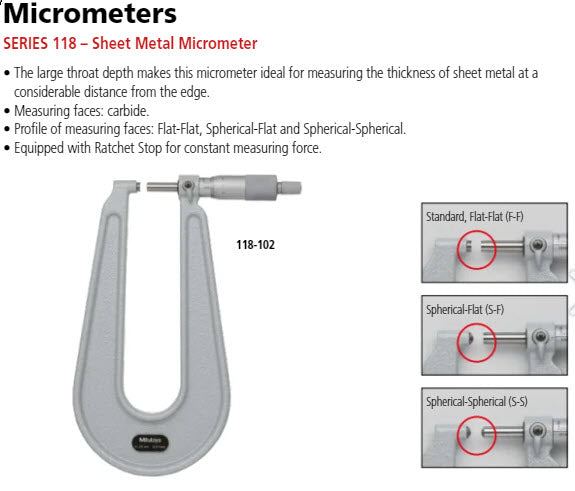

A Mitutoyo non-digital micrometer provided with a deep frame to enable measurement of sheet metal thickness farther from the edge of a sheet than is possible with a standard micrometer. A ratchet stop guarantees repeatable measurement.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

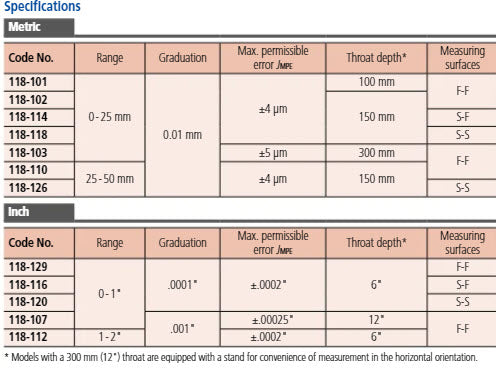

Product Information
Part Number	118-118
Measuring Range	0-25mm
Graduation	.01mm
Unit of Measurement	Metric
Measuring Force	8+/-0.8N
Type	Sheet Metal
Constant Force Device	Ratchet Stop
Flatness	.0006mm/.000024"
Parallelism	.003mm/.00012"

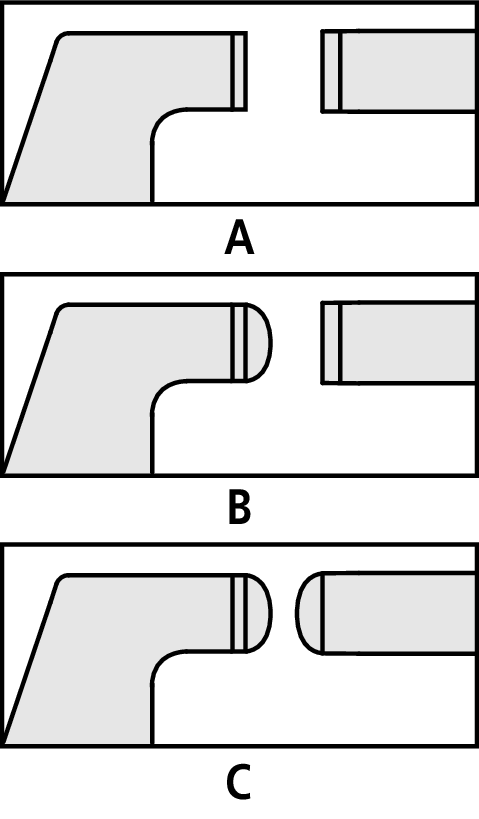

Anvils & Spindle Design	Spherical Anvil & Spherical Spindle Type C (S-S)
Calibration Code	CAL9 B1

Digital/Analog:	Analog

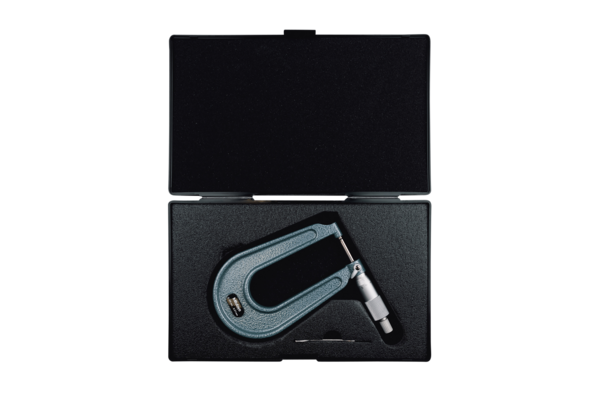

Delivered:	Including box, spanner
Inch-Metric:	Metric
Range:	0 - 25 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±4 µm
Flatness:	0,6 µm
Parallelism:	3 µm
Measuring face:	Carbide-tipped, micro-lap finish
Anvil / Spindle:	Type A, flat/flat
Measuring spindle:	With spindle lock, throat depth ≤ 150 mm : ø6,35 mm throat depth =300 mm : ø8 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	3 - 8 N
Delivered:	Including box, key, setting standard (from 25 mm upward)
Mass:	445 g
