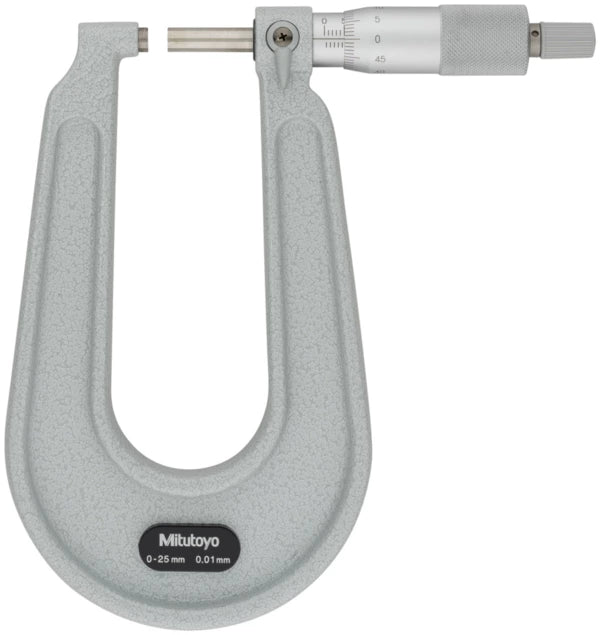

- Range: 0-25mm
- Resolution: 0.01mm
- Accuracy: ± 0.004mm
- Flatness: 0.0006mm
- Parallelism: 0.003mm
- Measuring force: 8N or less
- Anvil Type: A – Flat, Flat

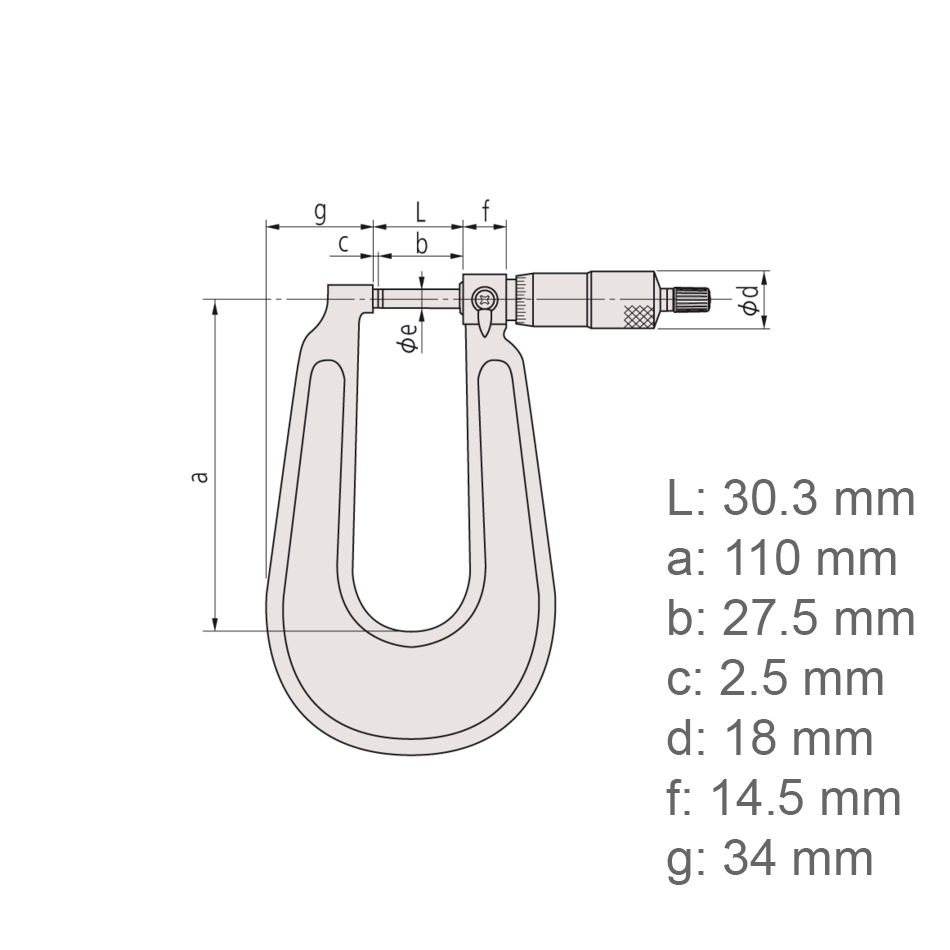

- Throat depth: 100mm
- Measuring face: Carbide-tipped, micro-lap finish
- Thimble and Sleeve scale satin chrome finish ø18mm
- With spindle lock: 6.35mm diameter, spindle pitch 0.5mm
- Ratchet Stop
