Welcome to MQS-Shop, your one-stop online store for metrology products and a UKAS accredited calibration laboratory No. 0373.

Sheet Metal Micrometer 0-25mm, Flat Anvil/spindle, 300mm Throat 118-103

Roll over image to zoom in Click on image to zoom

Sheet Metal Micrometer 0-25mm, Flat Anvil/spindle, 300mm Throat 118-103

Name: Sheet Metal Micrometer 0-25mm, Flat Anvil/spindle, 300mm Throat 118-103
Brand: Mitutoyo
SKU: 118-103
Price: 242.2 GBP
Availability: InStock

MitutoyoSKU: 118-103

All prices exclude VAT, which will be added at checkout.

Price:

£242.20 £346.00

Quantity:

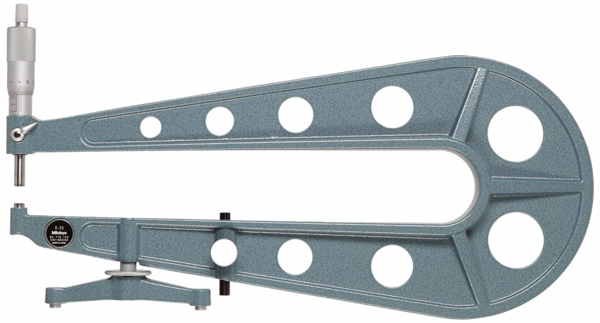

A Mitutoyo non-digital micrometer provided with a deep frame to enable measurement of sheet metal thickness farther from the edge of a sheet than is possible with a standard micrometer. A ratchet stop guarantees repeatable measurement.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	118-103
Measuring Ranges	0-25mm
Graduation	.01mm
Accuracy	+/-.005mm
Unit of Measurement	Metric
Measuring Force	8+/-0.8N
Type	Sheet Metal
Constant Force Device	Ratchet Stop
Flatness	.0006mm
Parallelism	4µm
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Delivered:	Including box, spanner
Inch-Metric:	Metric
Range:	0 - 25 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±5 µm
Flatness:	1 µm
Parallelism:	3 µm
Measuring face:	Carbide-tipped, micro-lap finish

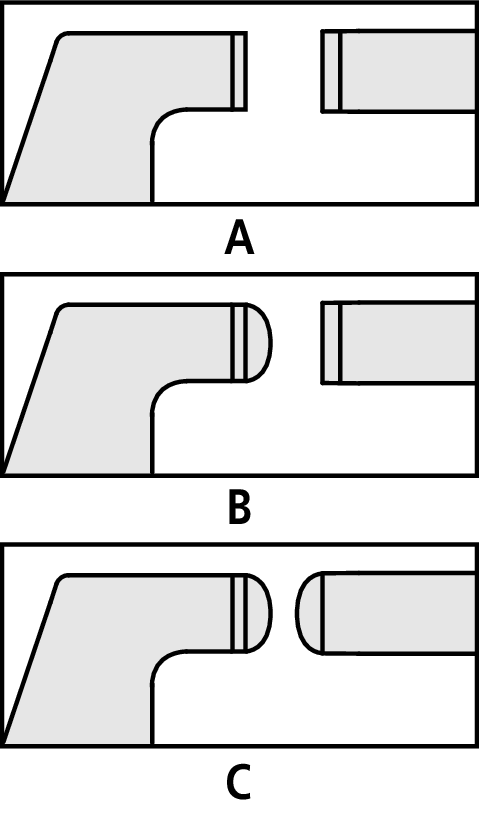

Anvil / Spindle:	Type A, flat/flat
Measuring spindle:	With spindle lock, throat depth ≤ 150 mm : ø6,35 mm throat depth =300 mm : ø8 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø21 mm
Measuring force:	10 - 14 N
Delivered:	Including box, key, setting standard (from 25 mm upward)
Mass:	2650 g
