MitutoyoSKU: 118-112
List price: £252.00 Offer price: £184.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

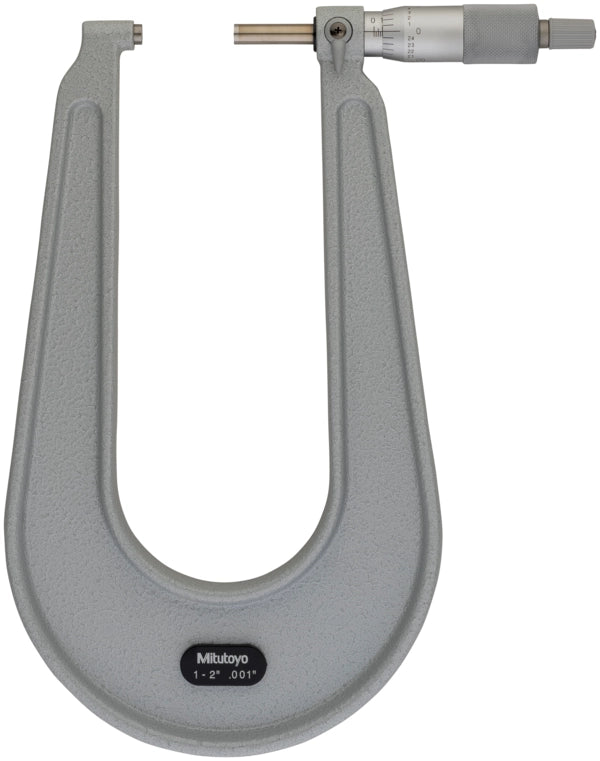

A Mitutoyo non-digital micrometer provided with a deep frame to enable measurement of sheet metal thickness farther from the edge of a sheet than is possible with a standard micrometer. A ratchet stop guarantees repeatable measurement.
Specification
Digital/Analog:
Analog
Delivered:

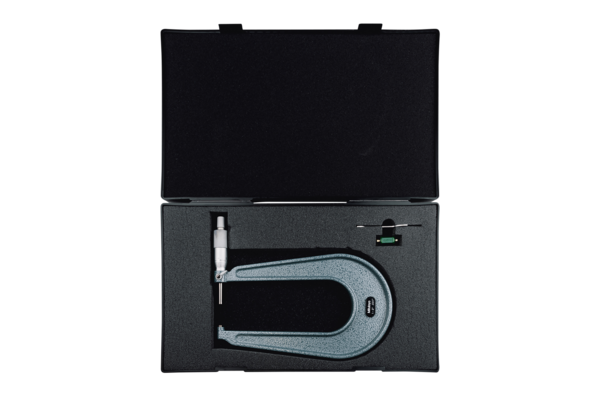

Including box, spanner, setting standard
Inch-Metric:
Inch
Range:
1 - 2 "
Graduation:
0,001"
Max.
Permissible Error
J MPE:
±0,0002"
Parallelism:
0,00012"
Measuring face:
Carbide-tipped, micro-lap finish

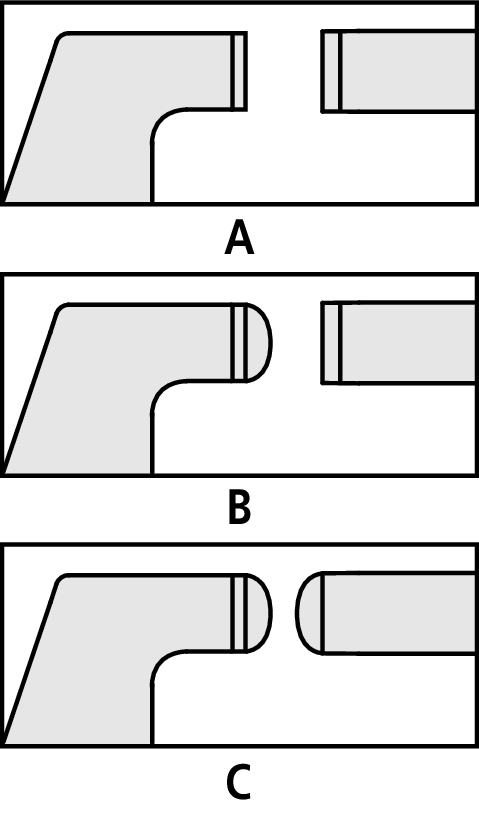

Anvil / Spindle:
Type A, flat/flat
Measuring spindle:
With spindle lock, throat depth ? 150 mm : ø6,35 mm
throat depth =300 mm : ø8 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
3 - 8 N
Delivered:
Including box, key, setting standard (from 25 mm upward)
Mass:
820 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Sheet Metal Micrometer 1-2", Flat Anvil & Spindle, 6"Throat 118-112 Type A (F-F) Click to open the PDF document
