Standard DTI, Lug Back, ISO Type, Shockproof, 5mm, 0,01mm 2044A-09

Roll over image to zoom in Click on image to zoom

Standard DTI, Lug Back, ISO Type, Shockproof, 5mm, 0,01mm 2044A-09

Name: Standard DTI, Lug Back, ISO Type, Shockproof, 5mm, 0,01mm 2044A-09
Brand: Mitutoyo
SKU: 2044A-09
Price: 54.0 GBP
Availability: InStock

MitutoyoSKU: 2044A-09

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£54.00 £74.10

Quantity:

All prices exclude VAT, which will be added at checkout.

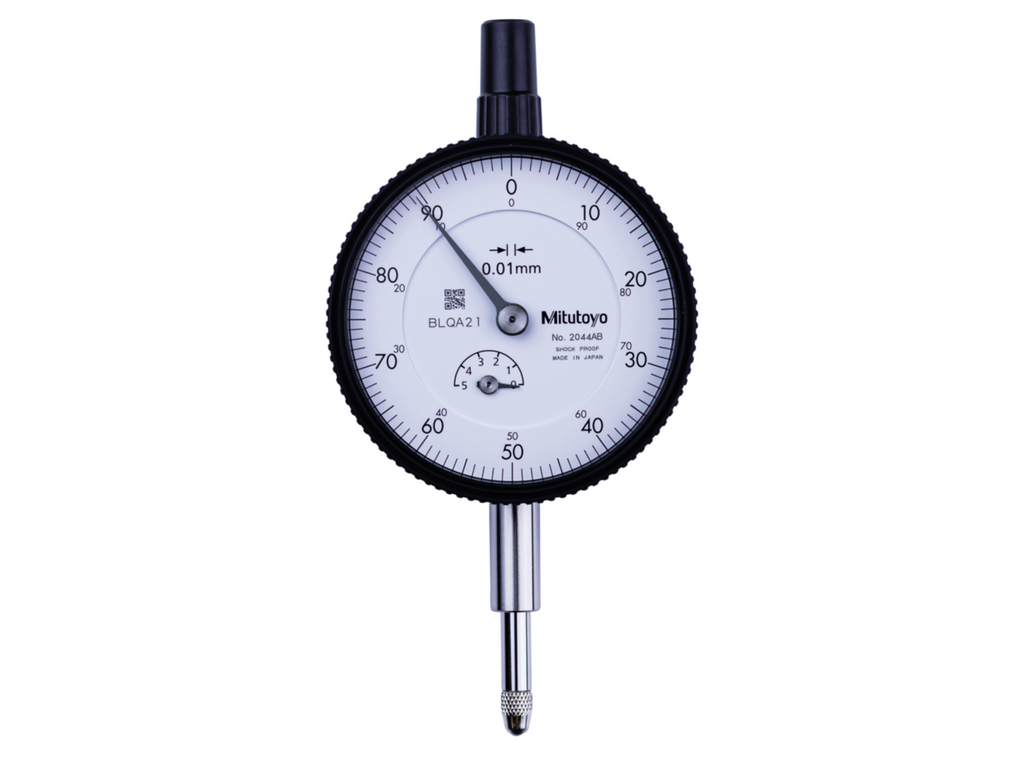

This is a standard dial indicator. It offers you the following benefits:

Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
No through screw holes on the frame and secure adhesion between the bezel and the crystal as well as the use of an O-ring prevents water or oil penetration.

Product Information
Part Number	2044A-09
Measuring Ranges	5mm
Graduation	.01mm
Accuracy	.012mm
Unit of Measurement	Metric
Measuring Force	≤1.4N
Type	Lug Back
Repeatability	.003mm
Dial Reading	+/-0-100
Dial Face Size Ø	57mm
Hysteresis	.003mm
Stem	8mm
Stem Diameter	8mm
Back	Centre Lug Back
Range Per Rev	1mm
Scale	±0-100
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Inch-Metric:	Metric
Functions:	ISO type
Delivered:	With certificate of inspection
Range:	5 mm
Range per rev.:	1 mm
Dial reading:	±0-100
Graduation:	0.01 mm
Measuring force:	0,4 - 1,4 N
MPE any 1/10 revolution:	5 µm
MPE any 1/2 revolution:	9 µm
MPE any 1 revolution:	10 µm
MPE measuring range:	12 µm
H MPE (Hysteresis):	3 µm
R MPE (Repeatability):	3 µm
Mass:	147 g
Stem:	8 mm
Contact point:	Carbide tipped, thread: M 2.5 x 0.45 mm
Continuous dial:	Yes
Shockproof:	Yes
