The 811-110 is a basic standard Rockwell hardness tester
Direct reading of Rockwell scales HRA,HRB,HRC
Accuracy conforms to EN-ISO 6508 and ASTM E-18
Easy load force selection by robust dial knob
Standard delivery includes
Diamond/Ball indenters
Test blocks HRC x 2, HRB
Flat anvils 60 &150mm and 40mm v-anvil
Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.
Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, and other materials harder than B100.
Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.
Direct reading of Rockwell scales HRA,HRB,HRC
Accuracy conforms to EN-ISO 6508 and ASTM E-18
Easy load force selection by robust dial knob
Standard delivery includes
Diamond/Ball indenters
Test blocks HRC x 2, HRB
Flat anvils 60 &150mm and 40mm v-anvil
Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.
Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, and other materials harder than B100.
Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.

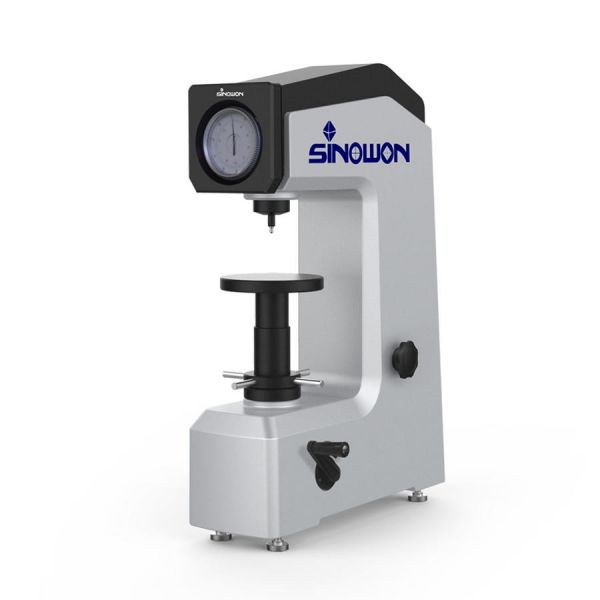

Sinowon 811-110 Analogue Rockwell Hardness Tester
| Product Name | Manual Rockwell Hardness Tester |
| Model | DigiRock HR1 |
| Code# | 811-110 |
| Rockwell Scales | HL,HRC ,HRB, HRA, HV,HB,HS |
| Preliminary Test Force | 10kgf(98N) Permitted Error：±2.0% |
| Addtional Test Fore | 60Kgf(558.4N),100Kgf(980.7N),150Kgf(1471N) |
| Dwell Time | Adjustable 1-60s |
| Hardness Indication | Analogue Display |
| Resolution | 0.5HR |
| Loading Control |
Manual |
| Max. Height Of Specimen | 175mm |
| Instrument Throat | 165mm |
| Power supply | No Electronic |
| Dimension(LxWxH) | 546x182x755mm |
| Packing Dimension | 620x460x870mm |
| Gross/Net Weight | 120Kg/90Kg |
| Execution Standard | ISO 6508，ASTM E18，GB/T230 |
