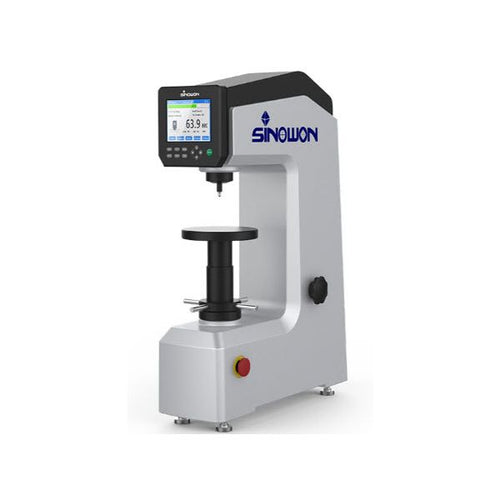

The Touch Screen Digital Rockwell Hardness Tester is equipped with a newly-designed large display screen with good reliability, excellent operation and intuitive reading, thus it is a high-tech product combining the mechanic and electric features. Its main function is as follows:
- Available to test all Rockwell scales.
- Plastic Rockwell scales (optional).
- Hardness conversion among different hardness scales.
- Test data reviewing and analysis.
- Optional wireless printer to print test data.
Application
Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.
Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, and other materials harder than B100.
Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.
Technical Data
Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.
Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, and other materials harder than B100.
Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.
Technical Data
| Product Name | Color Touch Screen Digital Rockwell Hardness Tester |
| Model | DigiRockDR3 |
| Code# | 811-130 |
| Rockwell Scales | HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK, HRL,HRM,HRP,HRR,HRS,HRV |
| Preliminary Test Force | 10Kgf(98.07N) Permitted Error:±2.0% |
| Test Force | 60Kgf(588.4N),100Kgf(980.7N),150Kgf(1471N) Permitted Error:±1.0% |
| Dwell Time | Adjustable 1-60s |
| Hardness Indication | 5.2" Touch Screen, Resolution:640x480 |
| Resolution | 0.1HR |
| Loading Control | Auto Loading/Dwell/Unloading |
| Hardness Conversion | HRC,HV,HBS,HBW,HK,HRA,HRD,HR15N,HR30N, HR45N,HS,HRF,HR15T,HR30T,HR45T,HRB |
| Conversion Standards | ASTM,DIN |
| Language Option | Chinese, English, German, Portuguese, Turkish, Czech, Korean |
| Correction Range | -3.0HR to +3.0HR, Step 0.1HR |
| Data Memory | 2000 Single Measuring Result, Curve Analysis, Results Reviewing And Analysis |
| Data Output | Optional Blue Tooth Mini Printer |
| Max. Height Of Specimen | 175mm |
| Instrument Throat | 165mm |
| Power supply | AC220V/50Hz;AC110V/60Hz |
| Dimension(LxWxH) | 546x182x755mm |
| Packing Dimension | 620x460x870mm |
| Gross/Net Weight | 120Kg/90Kg |
| Execution Standard | GB/T230.2, JJS Z2245, EN-ISO6508, ASTME-18 |
