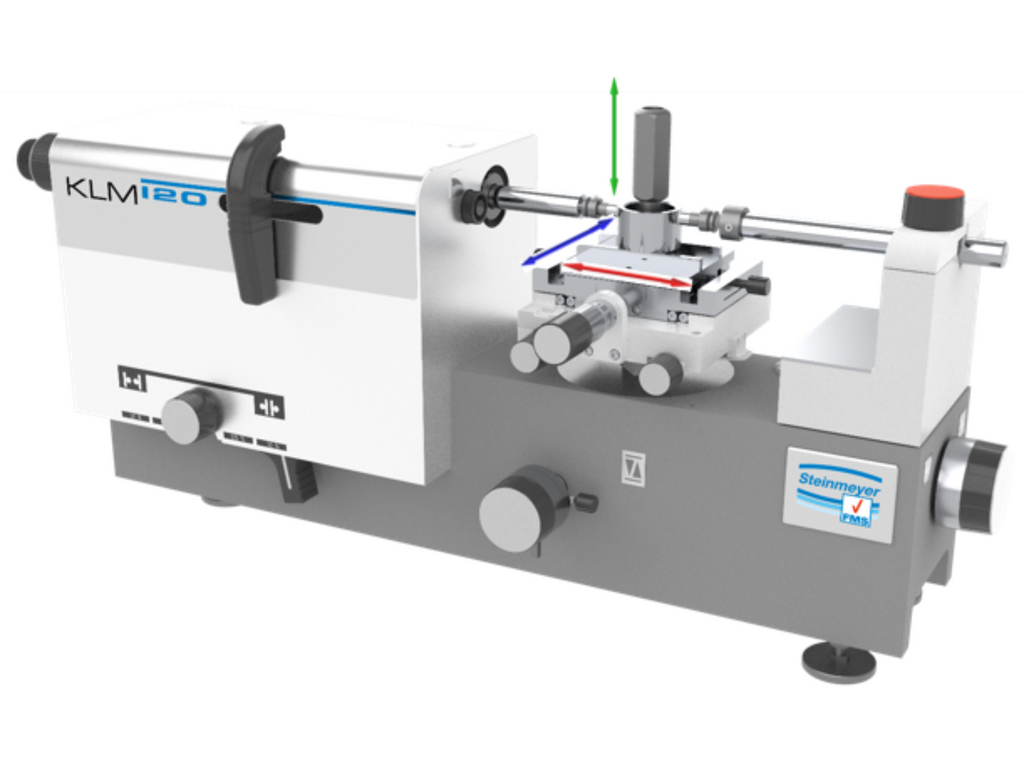

Small Universal Length Measuring Machine KLM 120

The small universal length measuring machine KLM 120 is a precision measuring device for external and internal measurements with a measuring range of up to 160mm.

View Data Sheet

Contact our Sales Department for a demonstration or quotation.

System description

• The KLM 120 has a measuring table with 3-axis adjustment and additional tilt and rotation functions and can be loaded up to 3 kg.
• A floating table enables the moment-free positioning of the measuring object.
• The separate PU41 interface unit with USB connection transmits the measurement data of the X, Y, and Z axes to the PC.
• The intelligent measured value processing with the IQ-Basis software from AHP or QM-Soft offer standard-compliant, ready-made test programs and provide a final test report that can be individually adapted if required.
• With the extensive range of standard accessories, a large part of all measuring tasks can be realized immediately. In addition, special accessories such as floating tables or quick-clamping elements as well as thread testing sets are available to expand the range of applications - for simple and economical calibration.

The following measurements can be done with the measuring device:

External measurements

• Measurement of measuring objects with parallel plane measuring surfaces
• Measurement of measuring objects with spherical measuring surfaces Measurement of measuring objects with cylindrical measuring surfaces
• Measurement of external threads

Internal measurements

• Measurements of bores
• Measurement of parallel internal contours
• Measurement of internal threads

Technical data

• Application range internal measurement (up to max.) 135 mm
• Application range external measurement (up to max.) 160 mm
• Direct measurement range 60 mm
• Resolution 0,01 µm / 0,1 µm / 1,0 µm
• Repeatability (range) internal measurement < 0,20 µm
• Repeatability (range) external measurement < 0,1 µm
• Measuring force with additional weight up to 2,5 N / optional 12 N
• Measuring uncertainty internal measurement ± 0,15 µm + 1 * 10-6 * L
• Measuring uncertainty external measurement ± 0,08 µm + 1 * 10-6 * L

Benefits

• Compact, high-precision length measuring machine with measuring x, y, and z axis
• Specifically developed to measure small bores,ring gauges, plug gauges, snap gauges, thread gauges and thread rings, dial gauges, and precision parts.
• Specifically suited to measure precision parts close to production and workshop thanks to robust design.
• The applied measuring system of the x-axis is based on quartz glass with an infinitesimal coefficient of expansion.
• Application range 160 mm (OD), direct measuring range 60 mm, measuring force 0.5 N – 2.5 N (additional weight) optional up to 12 N.
• Adherence to Abbe‘s comparator principle to achieve the highest measuring precision, measuring distance and measuring system are on the same axis.
• Measuring stage with x, y, z axis adjustment, y, and z axis with measuring system. Additional with tilt and rotation function; loadable up to 3 kg.
• Floating stage for torque-free positioning of the measuring object.
• Seperate interface, unit PU41 with USB interface for data transmission to PC and testing device software (QMSOFT, AHP, Calvin u.s.w.)
• Optional temperature sensors provide complete documentation.
• Wide range of accessories.
• The FMSplus - extensive accessories inclusive.
