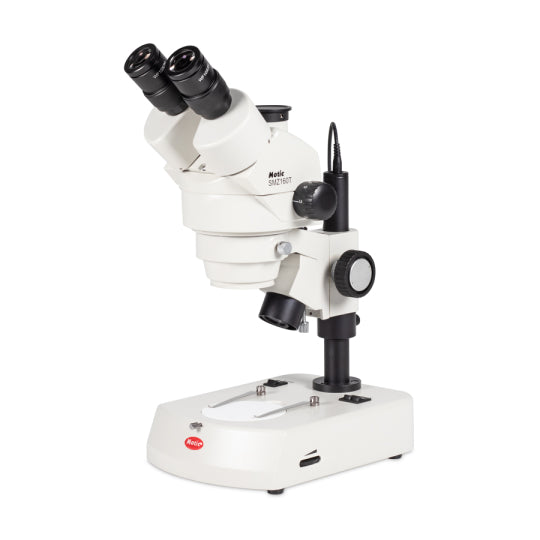

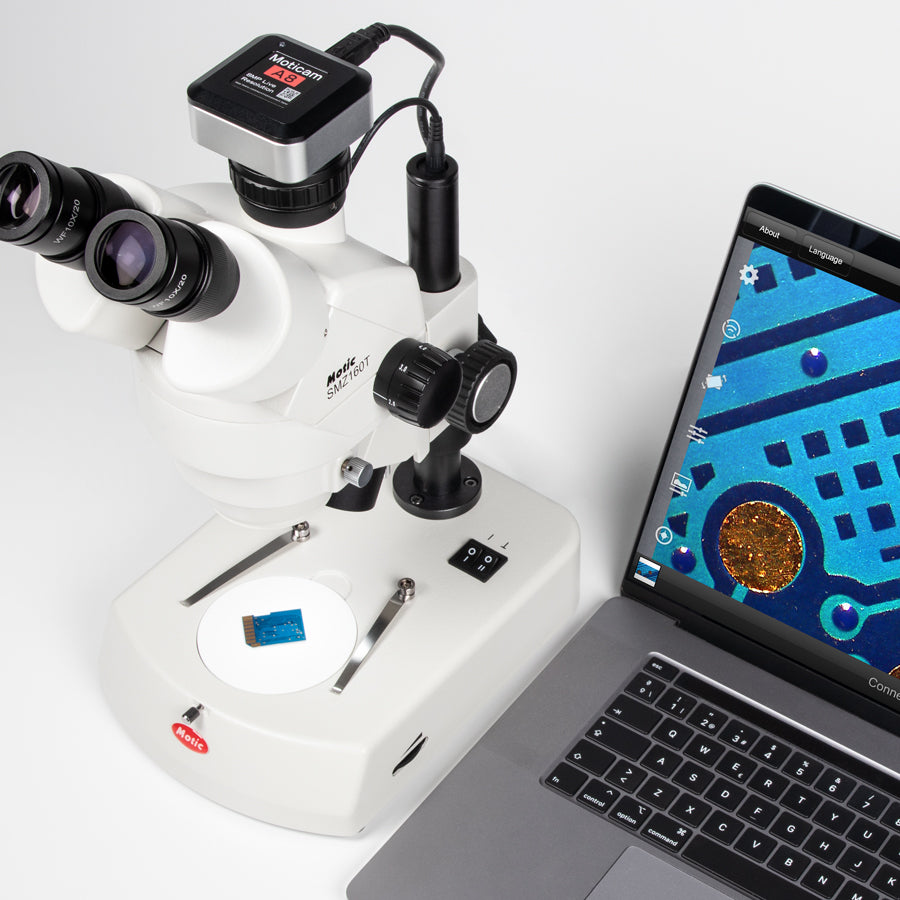

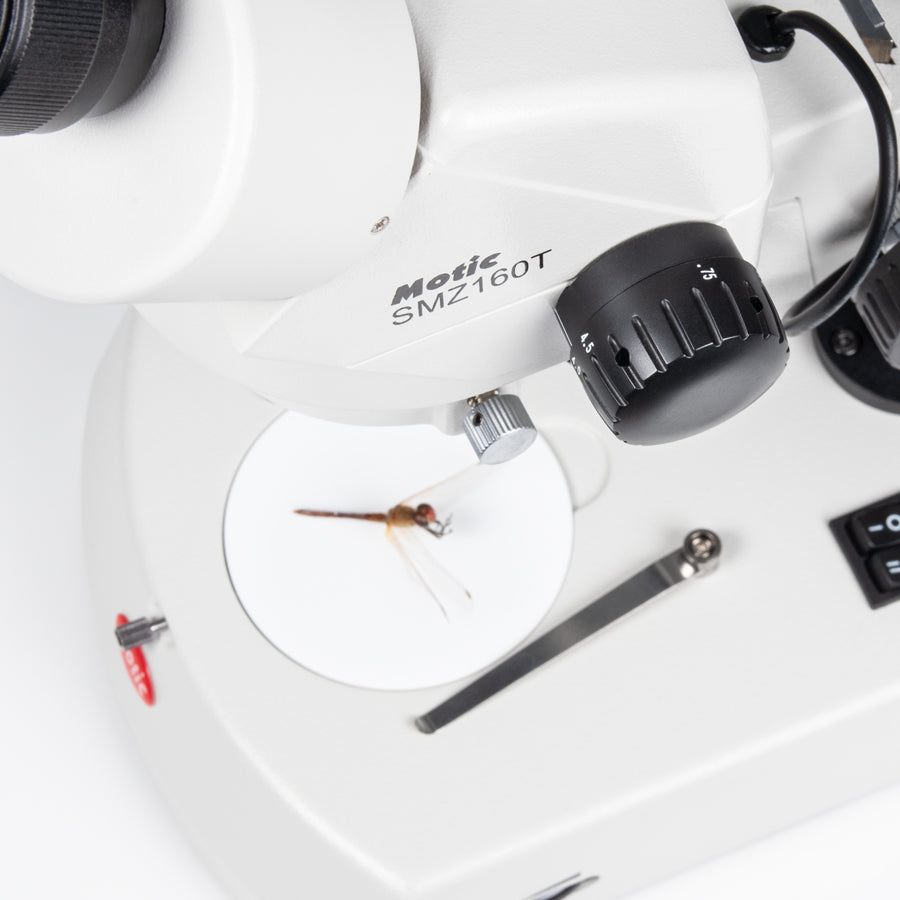

Trinocular stereo microscope for education work in university and High school, but also for documentation in a QC lab. The Greenough optical system delivers clear and distortion-free images in a zoom of 6:1, giving a magnification range of 7.5x-45x in standard outfit. The implemented click-stops allow precise reproduction of magnification. The photo port allows an adaption of a digital camera for measurements through software. Students and lab technician benefit from the package solution with integrated transmitted/incident LED illumination, ready to start.
| Observation tube | Trinocular head |
|---|---|
| Optical system | Greenough |
| Inclination | 45º inclined |
| Trinocular light split | Fixed 50:50 |
| Interpupillary distance | 50-75mm |
| Diopter adjustment | On both tubes, +/- 5 diopter |
| Eyepieces | Widefield WF10X/20mm |
| Objectives system | Zoom, ratio 6:1 |
| Objectives | 0.75X~4.5X |
| Working distance | 100mm |
| Stand type | Pole type stand with transmitted illumination |
| Head holder | For Ø 25mm column and Ø76mm head with incident illumination |
| Focus mechanism | Coarse focusing system with tension adjustment |
| Focusing stroke | 43mm |

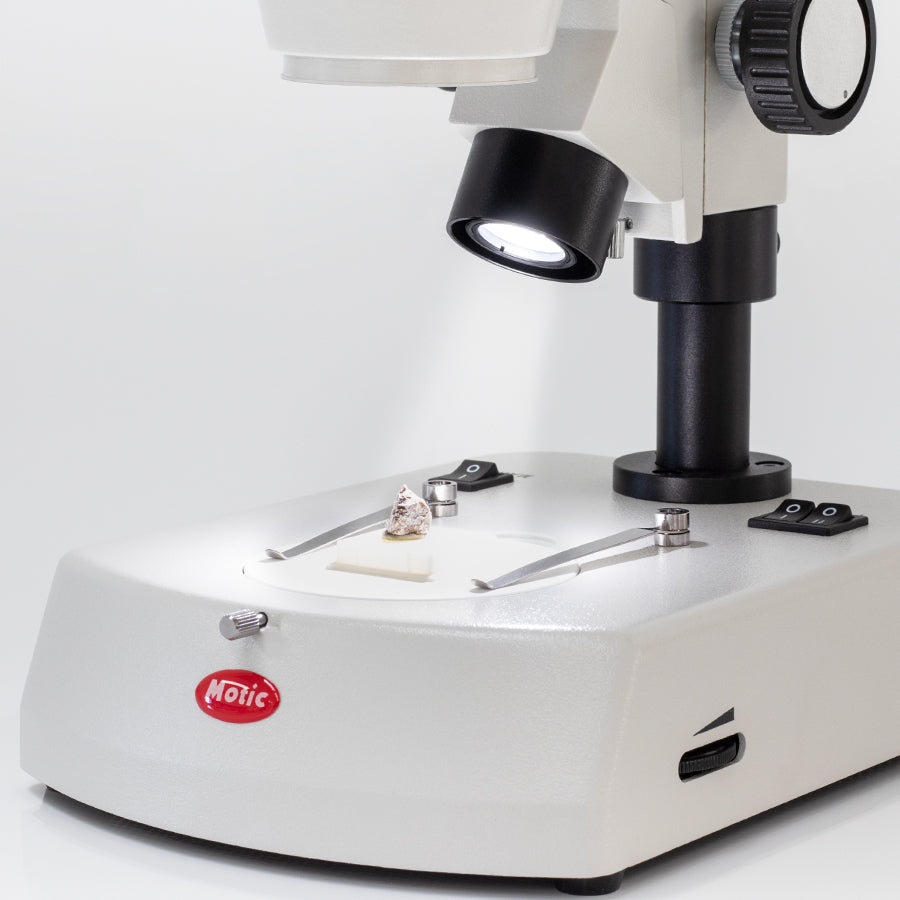

| Incident illumination | LED 3W with intensity control |
| Transmitted illumination | LED 3W with intensity control |
| Transformer | External |
| Power supply | 100-240V (CE) |
| Accessories included | Dust cover, black/white and frosted stage plates |
| Dimensions LxWxH | 237x170x398mm |
| Base | 237x170mm |
| Column/Arm | Height 205mm, Ø25mm |
| Weight Net | 3.7kg |
| Contrast techniques | |
| Standard contrast technique | Brightfield |
| Polarization | Optional add-on |
| Darkfield | Optional add-on |
