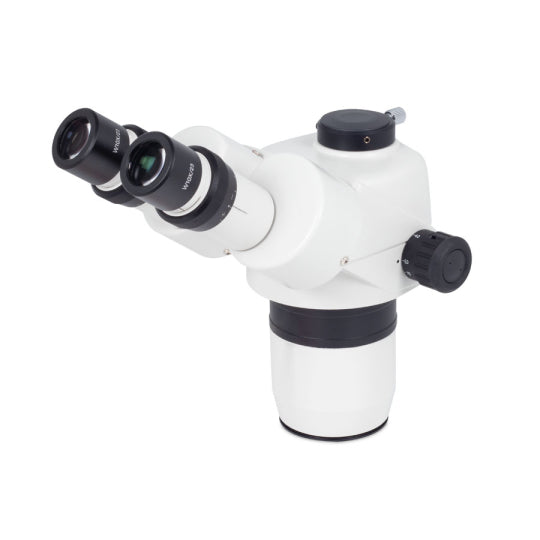

A Trinocular stereo microscope body with eyepieces, based on a Greenough optical system in a parfocal 6.7:1 zoom. The standard magnification range of 7.5X-50X allows multiple inspection and documentation work, depending on the combination of the optics with optional industrial stands and external light sources.
| Observation tube | 35º inclined head |
|---|---|
| Optical system | Greenough |
| Inclination | 35º inclined |
| Trinocular light split | 100:0/0:100 on left tube |
| Interpupillary distance | 54-76mm |
| Diopter adjustment | On both tubes, +/- 5 diopter |
| Eyepieces | Widefield WF10X/23mm |
| Objectives system | Zoom, ratio 6.7:1 |
| Objectives | 0.75X~5X |
| Working distance | 113mm |
| Accessories included | Dust cover |
| Dimensions LxWxH | 329x277x365mm |
| Weight Net | 2.2kg |
| Contrast techniques | |
| Standard contrast technique | Brightfield |
