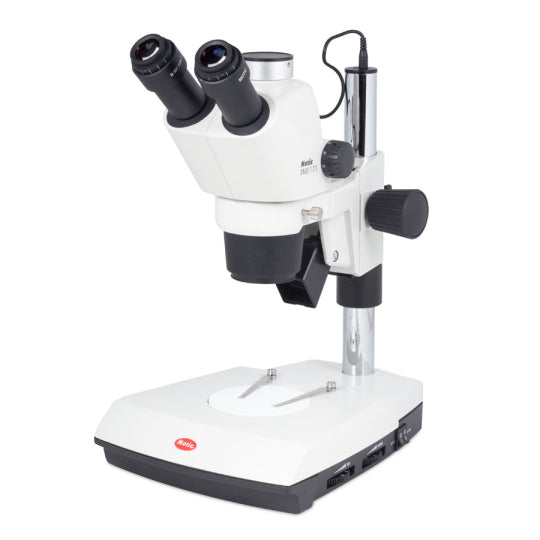

A flexible stereo microscope for advanced research work in biomedicine and industrial quality control. The Greenough optical system delivers impressive 3-D images in a zoom of 6.7:1, giving a magnification range of 7.5X-50X in the standard setup. The implemented click-stops allow precise reproduction of magnification. The photo port allows an adaption of a digital camera for measurements through software.

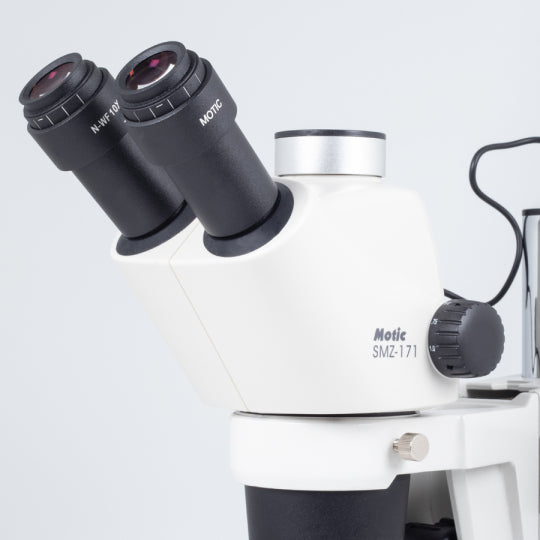

| Observation tube | Trinocular head |
|---|---|
| Optical system | Greenough |
| Inclination | 45º inclined |
| Trinocular light split | Fixed 50:50 |
| Interpupillary distance | 52-75mm |
| Diopter adjustment | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield N-WF10X/23mm with diopter adjustment |
| Objectives system | Zoom, ratio 6.7:1 |
| Objectives | 0.75X~5X |
| Working distance | 110mm |
| Stand type | Pole type stand with transmitted illumination |
| Head holder | For Ø32mm column and Ø76mm head |
| Focus mechanism | Coarse focusing system with tension adjustment |
| Focusing stroke | 49mm |

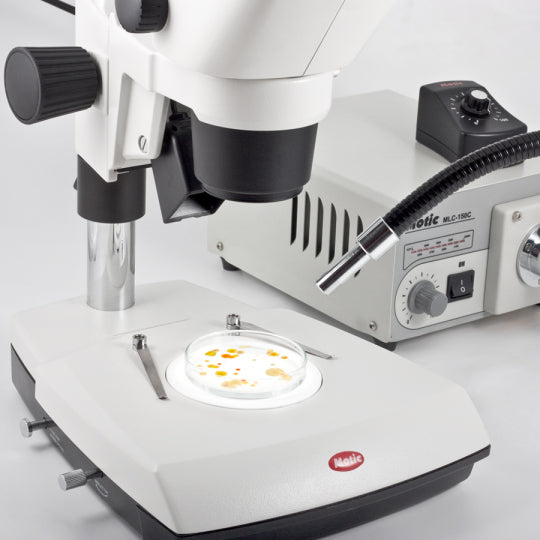

| Incident illumination | LED 3W with intensity control |

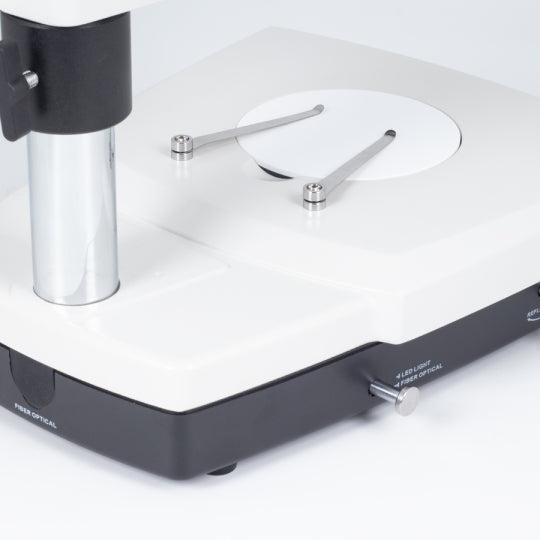

| Transmitted illumination | LED 3W with reflector and intensity control |
| Illumination features | Transmitted light with tilting reflector for oblique illumination |
| Transformer | External |
| Power supply | 100-240V (CE) |
| Accessories included | Dust cover, black/white and frosted stage plates |
| Dimensions LxWxH | 303x239x405mm |
| Base | 303x239mm |
| Column/Arm | Height 232mm, Ø32mm |
| Weight Net | 6.2kg |
| Contrast techniques | |
| Standard contrast technique | Brightfield |
| Polarization | Optional add-on |
| Darkfield | Optional add-on |
