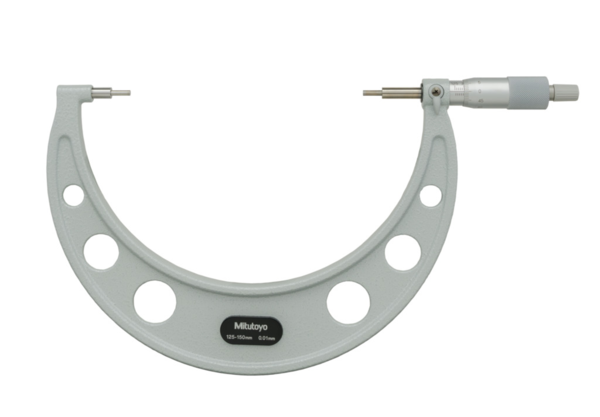

Spline Micrometer 125-150mm, 3mm Measuring Face 111-120

Roll over image to zoom in Click on image to zoom

Spline Micrometer 125-150mm, 3mm Measuring Face 111-120

Name: Spline Micrometer 125-150mm, 3mm Measuring Face 111-120
Brand: Mitutoyo
SKU: 111-120
Price: 282.0 GBP
Availability: InStock

MitutoyoSKU: 111-120

List price: £386.00 Offer price: £282.00 Excluding VAT

Quantity:

Optional Accessories

Select any accessories you require. Click a part number to view the accessory details.

Micrometer Stand, Adjustable Angle Type 156-101-10 +£41.00 Part number: 156-101-10 → View product

Mitutoyo Micrometer Stand, 45° Angle Type for Micrometer 0-50mm/0-2" 156-105-10 +£31.00 Part number: 156-105-10 → View product

Mitutoyo 516-106-10 10 Blocks Micrometer Inspection Gauge Block Set Grade 0 +£492.00 Part number: 516-106-10 → View product

MMI-10 Micrometer Checker on a stand Metric 10-piece Set 2.5, 5.1, 7.7, 10.3, 12.9, 15.0, 17.6, 20.2,22.8 & 25.0 mm +£595.00 Part number: MM1-10 → View product

MMI-8 Micrometer Checker on a stand Metric Metric 8-pieces set 3.1, 6.5, 9.7, 12.5, 15.8, 19.0, 21.9 & 25.0 mm +£495.00 Part number: MM1-8 → View product

Optical Parallels Set, Metric 0-25mm 157-903 +£347.00 Part number: 157-903 → View product

Optional Services

UKAS Accredited Calibration +£20.00 Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.

Add UKAS calibration of setting standard Calibration Micrometer Setting Rod 100-300mm
£12.00 per setting standard
The setting standard is calibrated separately from the micrometer.

Professional Laser Marking by Automator Lasers Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Number of items to be laser marked

Overview Technical Information Applications Videos & Documents

Spline Micrometer with 3mm Measuring Face

This Spline Micrometer makes it easy for you to measure grooves and shaped parts.
It offers you the following benefits:

Stepped measuring surfaces.
Suitable for measuring grooves, splined shafts, recesses, shaped parts, etc.

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Spline Micrometer 125-150mm, 3mm Measuring Face 111-120 Click to open the PDF document

Why Buy From MQS?

Over 40 years supplying precision measuring equipment throughout the UK and Ireland.

🎓

Expert Advice

Experienced engineers helping you select the correct measuring solution.

✔️

UKAS Calibration

Full UKAS accredited calibration laboratory with nationwide support.

🔧

Installation & Training

Installation, commissioning and operator training available.

🤝

After Sales Support

Technical support, servicing, repairs and ongoing customer care.

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric
Range:	125 - 150 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±4 µm
Flatness:	0,3 µm
Parallelism:	3 µm
Measuring face:	Carbide-tipped, micro-lap finish, stepped
Anvil / Spindle:	Type A, D=3 mm
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	710 g
