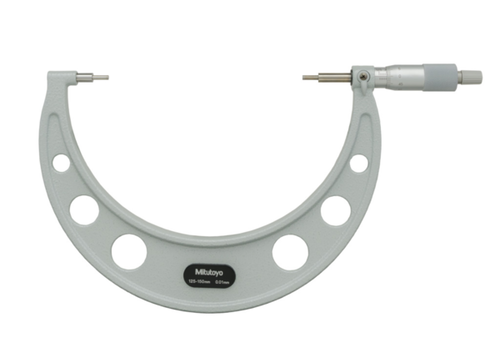

Spline Micrometer 125-150mm, 3mm Measuring Face 111-120

MitutoyoSKU: 111-120
List price: £386.00 Offer price: £282.00 Excluding VAT

Optional Services

Add UKAS-accredited calibration with certificate.
Please allow an additional 7–10 working days for calibration.
Calibration Micrometer Setting Rod 100-300mm
£20.00 per setting standard
The setting standard is calibrated separately from the micrometer.
Price is per item. Add your Gauge ID, asset number or company name.
£10.00 per item

Spline Micrometer with 3mm Measuring Face

This Spline Micrometer makes it easy for you to measure grooves and shaped parts.
It offers you the following benefits:
  • Stepped measuring surfaces.
  • Suitable for measuring grooves, splined shafts, recesses, shaped parts, etc.
Specification
Digital/Analog:
Analog
Delivered:
Including box, spanner, setting standard
Inch-Metric:
Metric
Range:
125 - 150 mm
Graduation:
0,01 mm
Max.
Permissible Error
J MPE:
±4 µm
Flatness:
0,3 µm
Parallelism:
3 µm
Measuring face:
Carbide-tipped, micro-lap finish, stepped
Anvil / Spindle:
Type A, D=3 mm
Measuring spindle:
With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:
Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:
5 - 10 N
Delivered:
Including box, setting standard (from 25 mm upward), key
Mass:
710 g

No technical information is currently available.

No application information is currently available.

Product Documents

Product Document Spline Micrometer 125-150mm, 3mm Measuring Face 111-120 Click to open the PDF document
