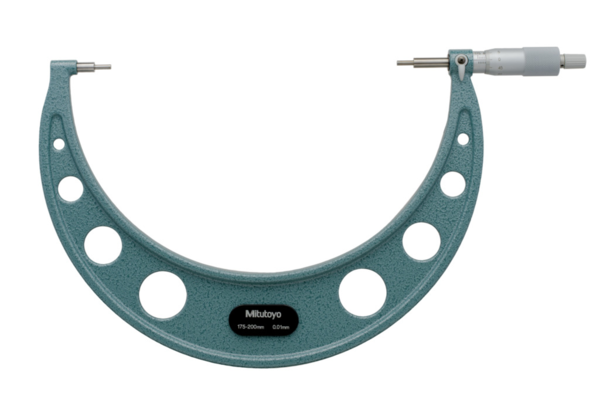

Spline Micrometer 175-200mm, 3mm Measuring Face 111-122

Name: Spline Micrometer 175-200mm, 3mm Measuring Face 111-122
Brand: Mitutoyo
SKU: 111-122
Price: 308.0 GBP
Availability: InStock

MitutoyoSKU: 111-122

All prices exclude VAT, which will be added at checkout.

Price:

£308.00 £440.00

Quantity:

This Spline Micrometer makes it easy for you to measure grooves and shaped parts.
It offers you the following benefits:

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric
Range:	175 - 200 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±5 µm
Flatness:	0,3 µm
Parallelism:	4 µm
Measuring face:	Carbide-tipped, micro-lap finish, stepped
Anvil / Spindle:	Type A, D=3 mm
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	1040 g
