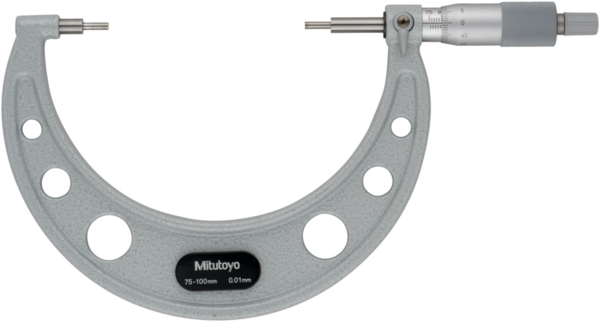

Spline Micrometer 75-100mm, 3mm Measuring Face 111-118

Roll over image to zoom in Click on image to zoom

Spline Micrometer 75-100mm, 3mm Measuring Face 111-118

Name: Spline Micrometer 75-100mm, 3mm Measuring Face 111-118
Brand: Mitutoyo
SKU: 111-118
Price: 170.1 GBP
Availability: InStock

MitutoyoSKU: 111-118

All prices exclude VAT, which will be added at checkout.

Price:

£170.10 £243.00

Quantity:

A Mitutoyo non-digital micrometer provided with a spindle and anvil reduced in diameter to enable measurement within slotted features, such as keyways. A ratchet stop guarantees repeatable measurement.

Free Shipping

Free shipping on orders over £250 (Subject to Terms & Conditions)

Satisfied or refunded

If your not fully satisfied with your purchase return the item with in 14 days for a full refund (Subject to Terms & Conditions)

Customer Support

Contact our customer support team via email or call our hotline number

Secure payments

We offer multiple secure payment options

Product Information
Part Number	111-118
Measuring Ranges	75-100mm
Graduation	.01mm
Accuracy	+/-.004mm
Unit of Measurement	Metric
Display Type	Analogue
Measuring Force	5-10N
Type	Spline
Constant Force Device	Ratchet Stop
Flatness	.0003mm
Parallelism	3µm
Manufacturer	Mitutoyo

Digital/Analog:	Analog
Delivered:	Including box, spanner, setting standard
Inch-Metric:	Metric
Range:	25 - 50 mm
Graduation:	0,01 mm
Max. Permissible Error J MPE:	±3 µm
Flatness:	0,3 µm
Parallelism:	2 µm
Measuring face:	Carbide-tipped, micro-lap finish, stepped
Anvil / Spindle:	Type A, D=3 mm
Measuring spindle:	With spindle lock, ø6,35 mm, spindle pitch 0,5 mm
Scale:	Thimble and sleeve satin chrome finish, ø18 mm
Measuring force:	5 - 10 N
Delivered:	Including box, setting standard (from 25 mm upward), key
Mass:	305 g
