Standard Indicator, Lug Back, ISO Type, 10mm, 0,01mm 2046S-15 Low Force 0.4-1.4N

MitutoyoSKU: 2046S-15
Price:
£32.00 £44.50
.specification-table h2, .specification-table h3, .specification-table__title, .specs-compare-title { display: none !important; }

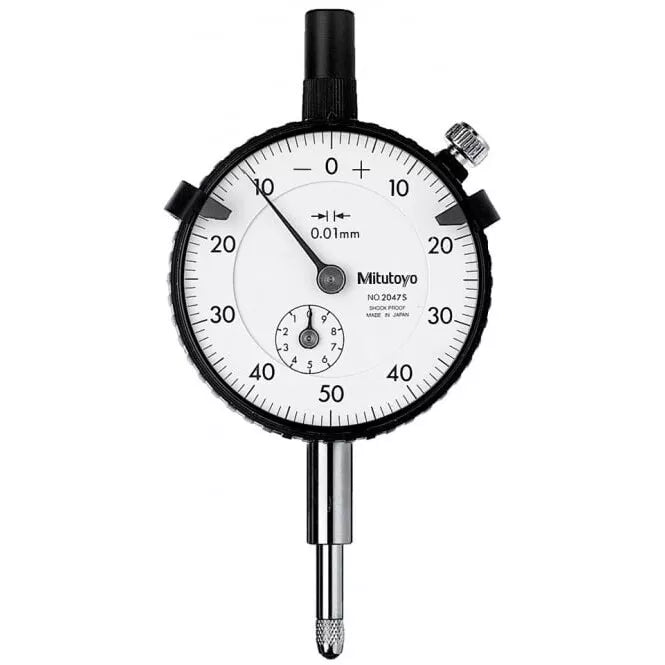

Standard Type, 10 mm Range, 0,01 mm Graduation

This is a standard dial indicator. It offers you the following benefits:
  • Bezel clamp and lifting lever (optional) can be attached to either right or left side. They can be easily installed and removed without tools.
  • No through screw holes on the frame as well as the use of an O-ring prevents water or oil penetration.
Features
Digital/Analog:
Analog
Inch-Metric:
Metric
Functions:
ISO type
Delivered:
With certificate of inspection
Range:
10 mm
Range
per rev.:
1 mm
Dial reading:
±0-100
Graduation:
0.01 mm
Measuring force:
0,4 - 1,4 N
MPE any 1/10
revolution:
5 µm
MPE any 1/2
revolution:
9 µm
MPE any 1
revolution:
10 µm
MPE measuring range:
13 µm
H MPE
(Hysteresis):
3 µm
R MPE
(Repeatability):
3 µm
Mass:
144 g
Stem:
8 mm
Contact point:
Carbide tipped, thread: M 2.5 x 0.45 mm
Continuous dial:
Yes
