- Specifications
- Made in America: Yes
- Micrometer Type: Electronic Interchangeable Anvil Outside Micrometer
- Range (in): 9-12''
- Range (mm): 225 - 305mm
- Resolution (in): .0001
- Resolution (mm): 0.001mm
- Anvil/Spindle Material: Steel
- Anvil Type: Flat
- Spindle Type: Flat
- Lock Nut Type: Knurled Ring Type
- Thimble Type: Friction
- SPC Output: SPC Output

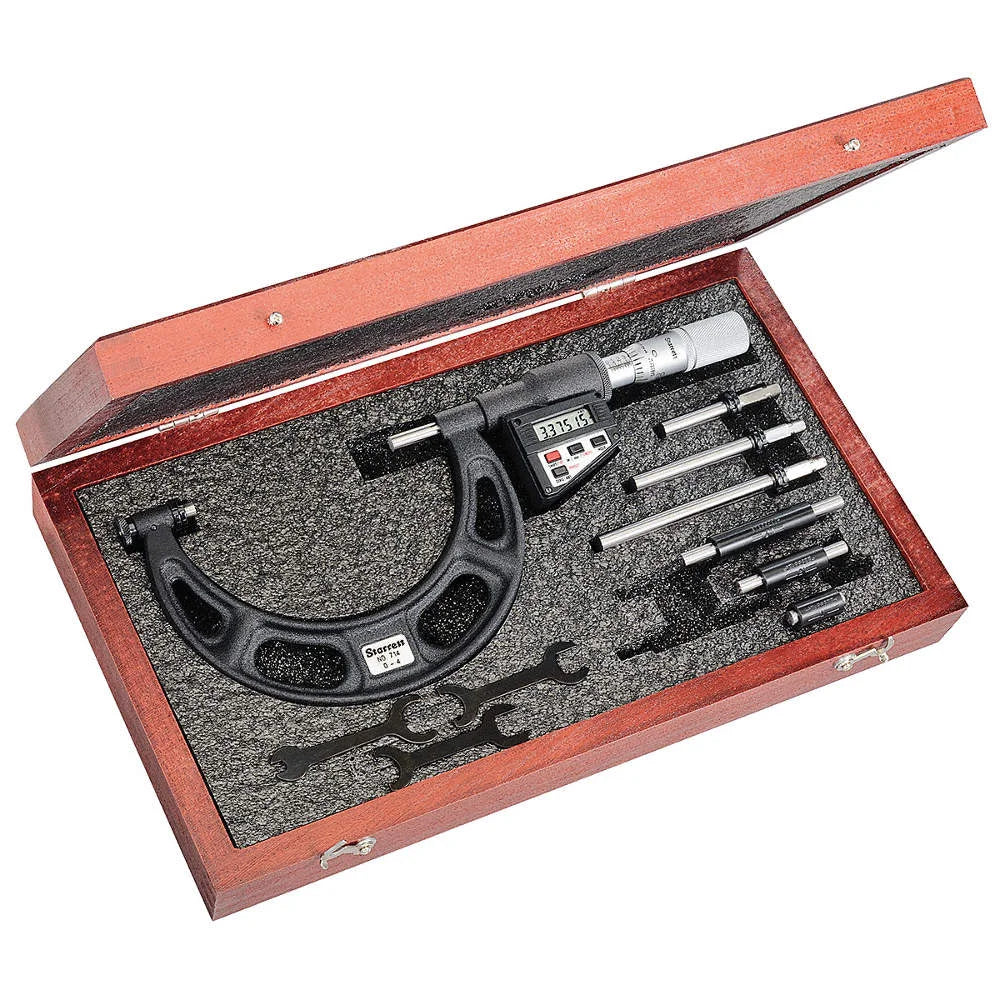

- Case Type: Wood case
- Accuracy (in): +/-.00025''
- Accuracy (mm): +/-.007mm
- Balanced frame and thimble design ensure easy handling and better readability
- Compatible with Starrett Datasure Wireless Data Collection Systems
- Advanced sleeve design with staggered lines and distinct figures for precise and easy readability
- Conventional inch or millimeter graduations standard
- Quick and easy adjustment
- Large, easy-to-read, high-contrast LCD digital readout
- Starrett No-glare satin chrome finish on thimble and sleeve minimizes annoying surface glare under bright lights indoors or filters out UV light
- No-glare black wrinkle finish on frame
- Hard and stable one-piece friction thimble permits one-hand operation of micrometer and uniform contact pressure
- Rigid and stable special cast iron frame with appropriate perforations for lightness and ribbed for strength and stability
- Ability to zero tool at any position as well as retain and return to the true zero reading of the micrometer
- Ring-type knurled lock nut for quick and sure locking
- Micro-lapped carbide measuring faces
- Interchangeable anvils
- One 3-volt battery included for extended usage
- Automatic OFF
- Measurement HOLD button
- SPC output capability
- Inch/millimeter metric conversion provides simple, universal, standardized unit of measurement at any position
- PRESET button to install any reading at any position
