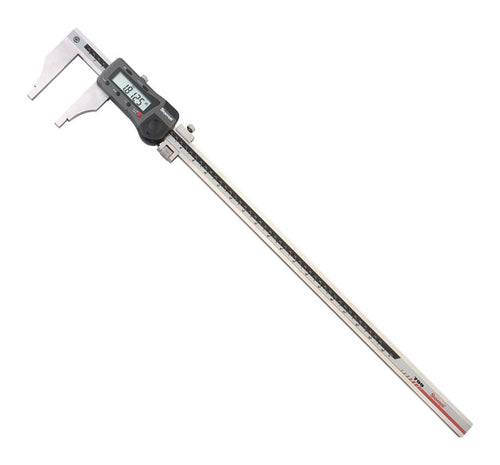

The Starrett 799AZ-40/1000 Extended Slide Electronic Caliper has the following specifications:
- Range: 0-40?/1000mm
- Resolution: .0005?/0.01mm
- Bottom Jaw Length: 6?/150mm
- SPC Output: No
- EDP: 11979
The EC799 Electronic Caliper is light, comfortable, easy-to-use, and constructed with features that have made Starrett slide calipers the machinists first choice for many years. Output now available on B models. The EC799 offers a slim, streamlined profile, a large, clear, easy-to-read LCD display, long battery life, and function buttons for zero and inch/mm.
Features:
- Equipped with an RS232 output ideal for use with DataSure Wireless Data Collection System
- Lightweight, ergonomic design
- Inch/metric conversion
- Easy access to the single, long-life battery
- Last measuring position retained when shut off
- Hardened stainless steel body for long life
- Fine adjustment thumb wheel
- Lock screw to hold the slide in position
- Zero at any position
- Protective case
- Preset and Hold Features
- Minimum and Maximum Limits set
- ID Jaw Dimension: .800?/20.32mm
- LCD Characters are .500? in Height
- Auto shut-off after 30 minutes of non-use
