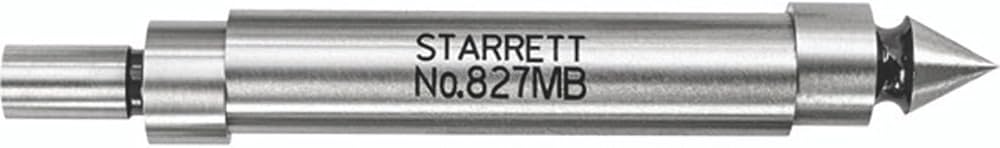

STARRETT 827MB FINDER, EDGE, DOUBLE ENDED, 10mm Body diameter, Contact diameter: 6mm Pointed

Roll over image to zoom in Click on image to zoom

STARRETT 827MB FINDER, EDGE, DOUBLE ENDED, 10mm Body diameter, Contact diameter: 6mm Pointed

Name: STARRETT 827MB FINDER, EDGE, DOUBLE ENDED, 10mm Body diameter, Contact diameter: 6mm Pointed
Brand: Starrett
SKU: 827MB
Price: 32.0 GBP
Availability: InStock

StarrettSKU: 827MB

- Free UK delivery on orders over £100

- Fast dispatch from UK stock (over 25,000 gauges in stock)

- UKAS calibration available on all gauges (allow 7 days for calibration)

Price:

£32.00 £38.00

Quantity:

All prices exclude VAT, which will be added at checkout.

Edge Finders
Work surfaces may be located easily quickly and accurately with the new Starrett Edge Finder.

Work with flat straight edges shoulders grooves round work studs dowels or centre points and scribed lines - all can be accurately located with this handy tool. Furnished in attractive protective case.

HOW TO USE:
Edge finders are easy to use. They are placed in a collet or chuck. The worktable is then traversed to obtain contact between the rotating edge finder and the work. Contact will shift to concentric position relative to the body and with very slight additional table adjustment, will move off centre with a decided wobble. At this point, the centre of the finder is exactly one-half the diameter of the contact from the work edge, permitting accurate location for other machining operations relative to the edge. For locating centre points and scribed lines, the pointed contact is used by putting a pencil or rule against the centre point and making it run concentrically. Then the point is brought down to the centre point or intersection of scribed lines and the table is adjusted so that when the tool barely touches the work, the line up with the point in question can be ascertained.

Product Information
Part Number	827MB
Unit of Measurement	Metric
Type	Edge Finder
Manufacturer	Starrett
