Starrett HB400 Shadowgraph 16"/ 400mm screen Horizontal bench-top profile projector. 16”x 6” X-Y travel workstage (400mm x 150mm)

Horizontal bench-top profile projector with significantly larger measuring capacity

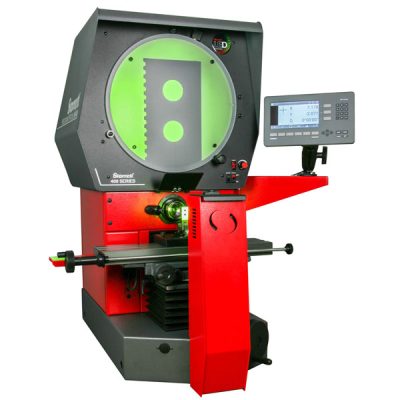

The Starrett HB400 is a horizontal shadowgraph built to the same high quality mechanical standards as expected by the Starrett brand. It has one of the largest measuring capacities of all Starrett optical comparators, with a 16”x 6” X-Y travel workstage (400mm x 150mm). The notably greater measuring travel in both the X and Y axis make the HB400 a very sought-after profile projector for industrial metrology requirements. With a 50kg workstage load capacity, most industrial components can be inspected using the Starrett HB400.

  Fully usable 400mm diameter hooded screen with on screen overlay clips
• Digital screen protractor for accurate angular measurements reading to one minute of arc, via Q axis on DRO
Description
Measurement by means of a linear encoder on both X and Y axis
top plate, 405mm lateral travel with free run and fine control, 152mm vertical travel
by hand wheel control and positive ± 15 degree workstage helix adjustment
• LED surface and profile illumination
• Collimating condenser with yellow/green filter and provision to mount further accessories

Digital Readout Optional Extra, Lenses Extra

Readout QA721

Lenses 10XHB, 20XHB, 50XHB, 100XHB
