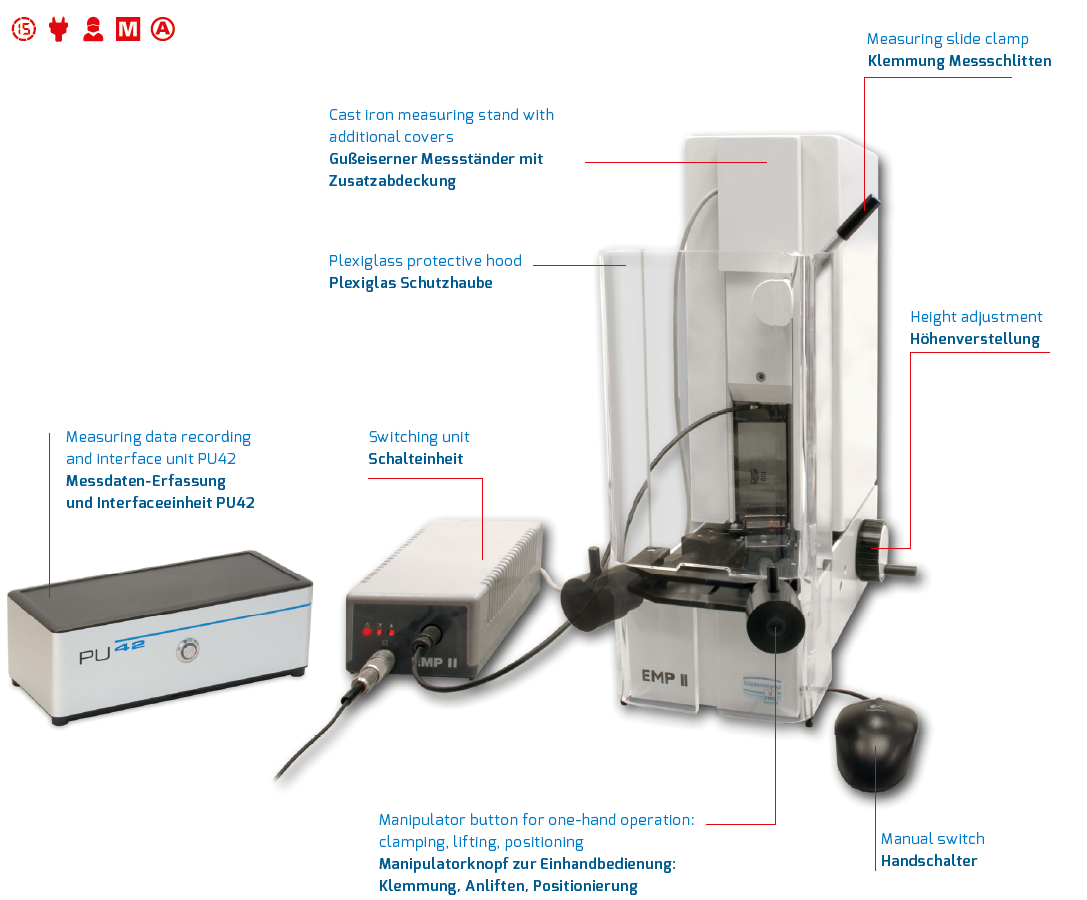

Steinmeyer Gauge block test station EMP II (Demonstration Model)

The innovative EMP II can test class 0, 1 and 2 gauge blocks. With a measuring range between 0.5 and 100 mm and a resolution of 0.0 1µm, it is always precise.

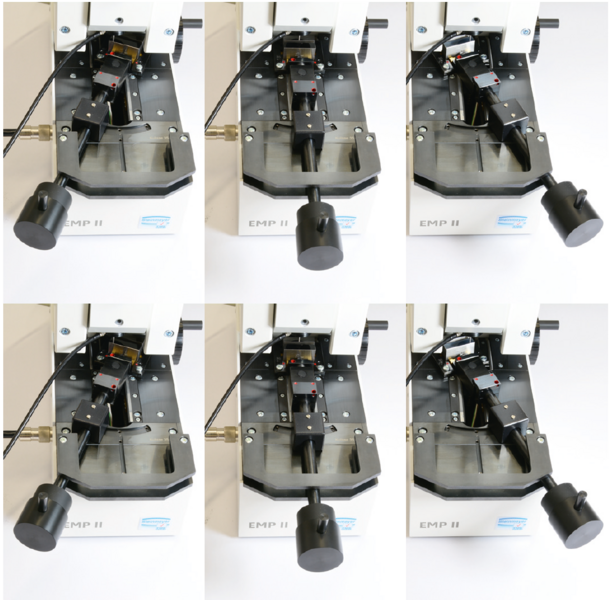

• Semi-automatic measuring, defined measuring points using a switching gate
• Local set-up for thermal decoupling
• Two opposite positioned encoders for differential measuring
• Comparative measurements against gauge block reference

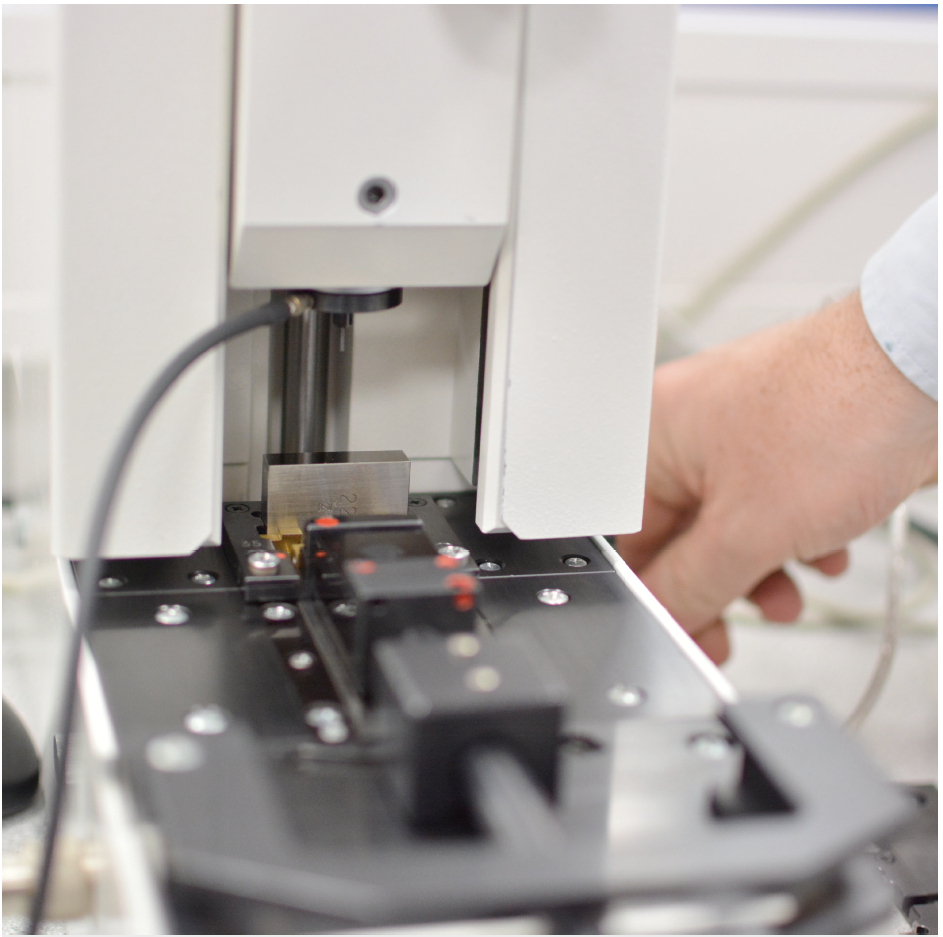

• Automatic lifting of gauge block while moving to points
• High reproducibility of measuring values
• Fast measuring thanks to safe one-hand mechanics, fast measuring data recording

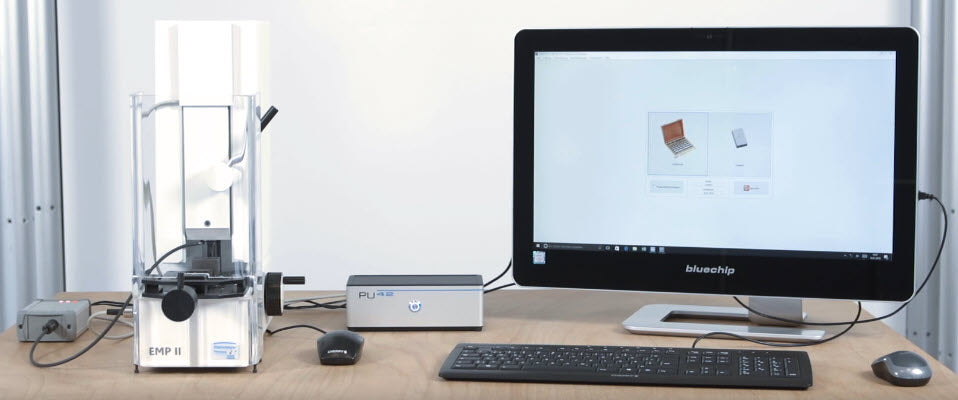

• Automatic transfer of all measuring values to downstream software (eg.: QMSOFT)
• Easy and safe to use thanks to ergonomic design
• Extra heavy design with cast body in portal design

For gauge block testing classes 0, 1 and 2:

• 0  - Gauge blocks to calibrate other gauges and measuring devices in an air-conditioned measuring laboratory
• 1 - Work standards in measuring chamber to check gauges and to adjust measuring devices
• 2 - Work standards in production process to check gauges and to adjust measuring devices

• Application range 0,5 - 100 mm
• Resolution 0,01 µm
• Measuring uncertainty (length difference D ≤ 10 µm) 0,03 µm + 0,002 * D
