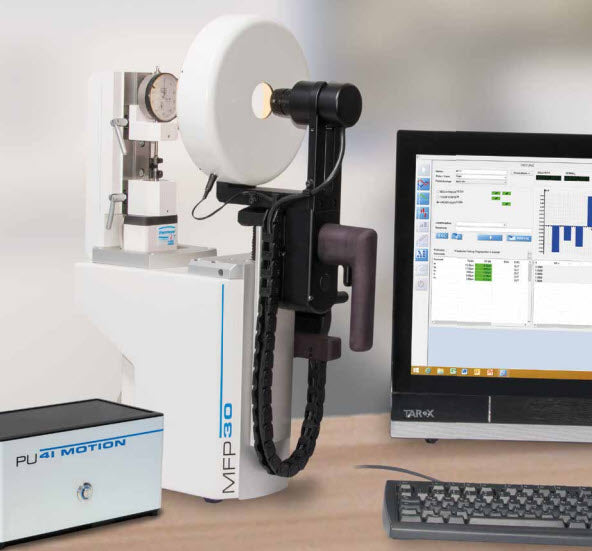

Steinmeyer MFP 50 / MFP 50 BV Dial Gauges and Indicator Testing Device
Fully automatic measuring of dials and precision display testing device for analogue and digital measuring dials, as well as all types of measuring probes with a measuring range of up to 50 mm. The measuring results are even more precise with image processing
View Data Sheet
Contact our Sales Department for a demonstration or quotation.

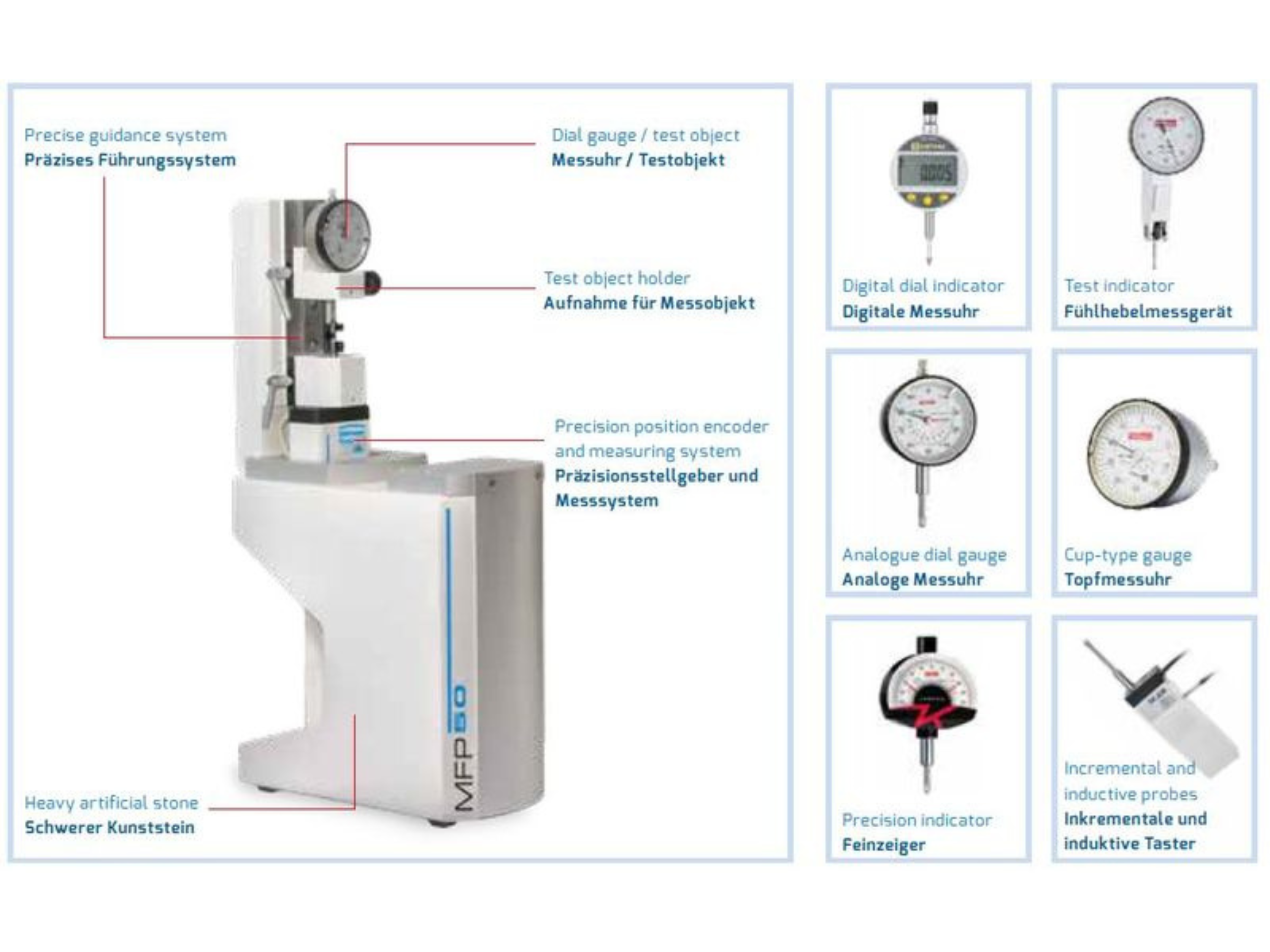

Testing of:
- Analogue & digital dial gauges
- Precision indicators
- Test indicator
- Inductive probes
- Incremental probes
- 2-point internal measuring devices
- Special measuring equipment such as edge sensors, electric probes, inverse and black scales

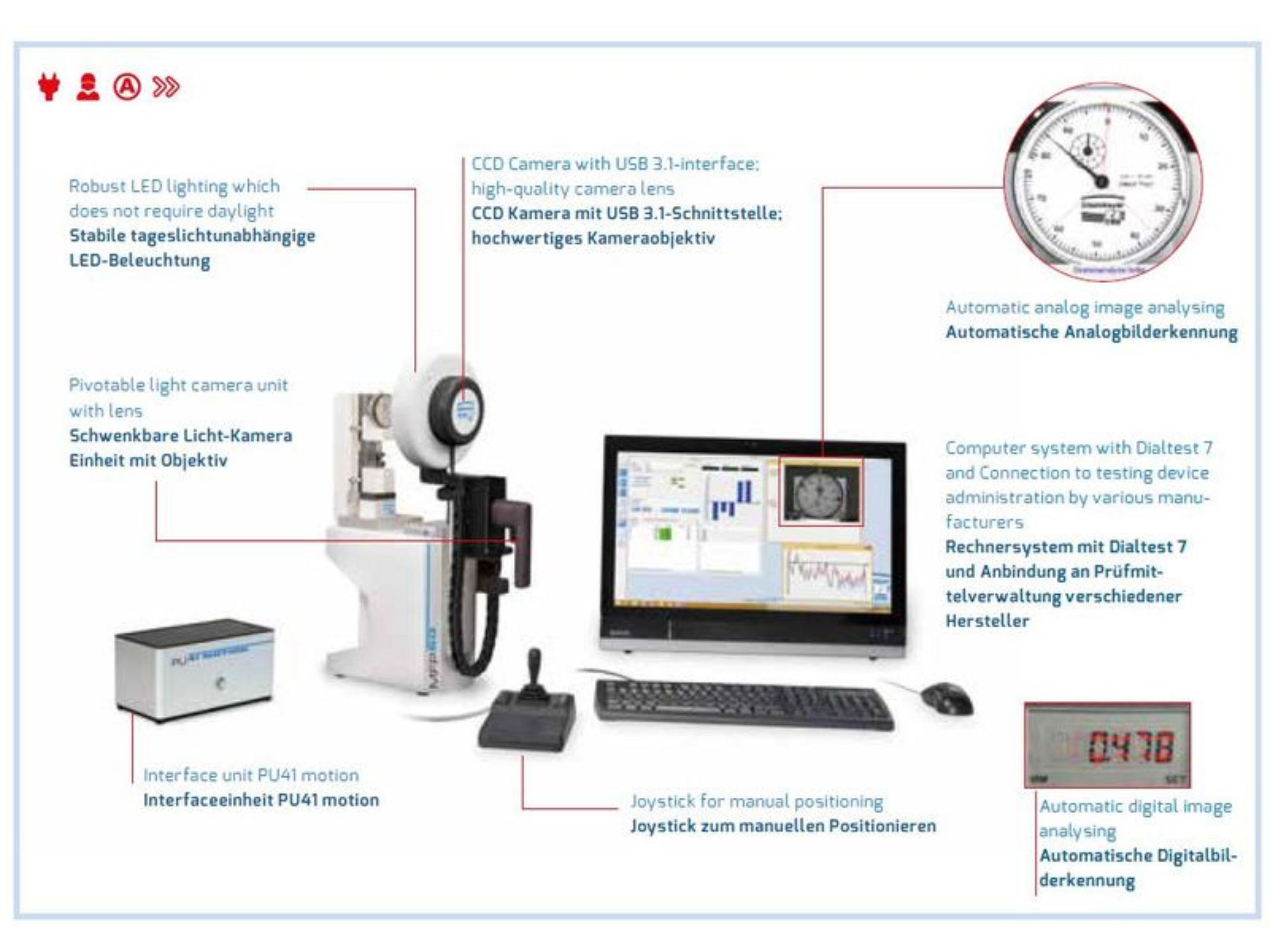

System description
The MFP 50 / 50 BV can test analogue and digital dial gauges quickly and economically even without an interface cable. The measuring results are processed, documented and transmitted automatically to different testing device management systems thanks to the innovative Dialtest 8 software.
The following parameters can be defined:
- Deviations in the overall measuring range, partial measuring range and for repeatability (range) tests in both directions (in/out)
- Testing of lever gauge measuring devices in both directions
- Measuring force testing (optional)
- Individual configuration of any measuring positions and parameter calculations
- Supports parameter calculations according to current national and international standards
- Analysis in consideration of measuring accuracies
Technical data
- Application range 0 - 30 mm
- Resolution 0,01 µm
- Reversal range < 0,15 µm
- Repeatability (range) < 0,1 µm
- Measuring uncertainty 0,08 µm + 1 * 10-6 * L
- Weight 25 kg (MFP 50), 27 kg (MFP 50 BV)
Benefits
- Semi- / full automatic testing system
- Suitable for analogue and digital dial gauges, precision indicators and lever gauge measuring devices as well as for any kind of electronic measuring probes
- Measuring range expansion by converting the dial gauge up to 100 mm is possible
- Adherence to Abbe‘s comparator principle to achieve the highest measuring precision
- Very sensitive positioning < 0.1 µm and high positioning speed ca. 2 mm/s
- Great scope for individual software adjustments for customer-specific tasks
- Dialtest software version 8 for customer specific testing plans
- A measuring force testing device allows to establish force measurements when the test item is fitted
- Easy to handle thanks to movable light-camera unit
- Compact design
- Full automatic test if test indicators
Further benefits of extended version MFP 30 BV
- Version BV with image processing: fully automatic testing
- Automatic BV-unit enables short testing times whilst precision is significantly greater compared to manual measurements
- Fast image processing using USB 3.1 camera
- The measuring process is based on automatic recognition of scaling and compares with target values
The FMSplus - extensive accessories inclusive
