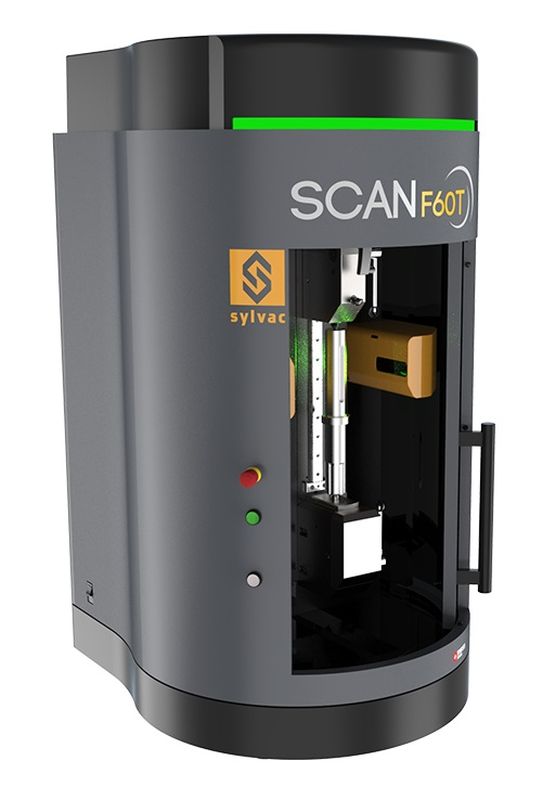

Features
- Cost Savings at Every Turn: Our non-contact machine is designed for the measurement of cylindrical parts, while preserving the integrity of your parts, eliminating the risk of damage during quality control. One of our machine can handle virtually all measurements on cylindrical parts up to 64mm wide and 300mm long. With a complete 2D part scan in a few seconds, you can reduce inspection time, minimize scrap, and increase overall productivity.
- Intuitive Operation: Enjoy easy operation right at your workplace with the new touch screen control panel. The dynamic LED indicator and intuitive Reflex SCAN+ concept provide real-time feedback on the measured part’s status (GO/NG) and operator messages. No prior programming is required—just a simple touch-button solution.

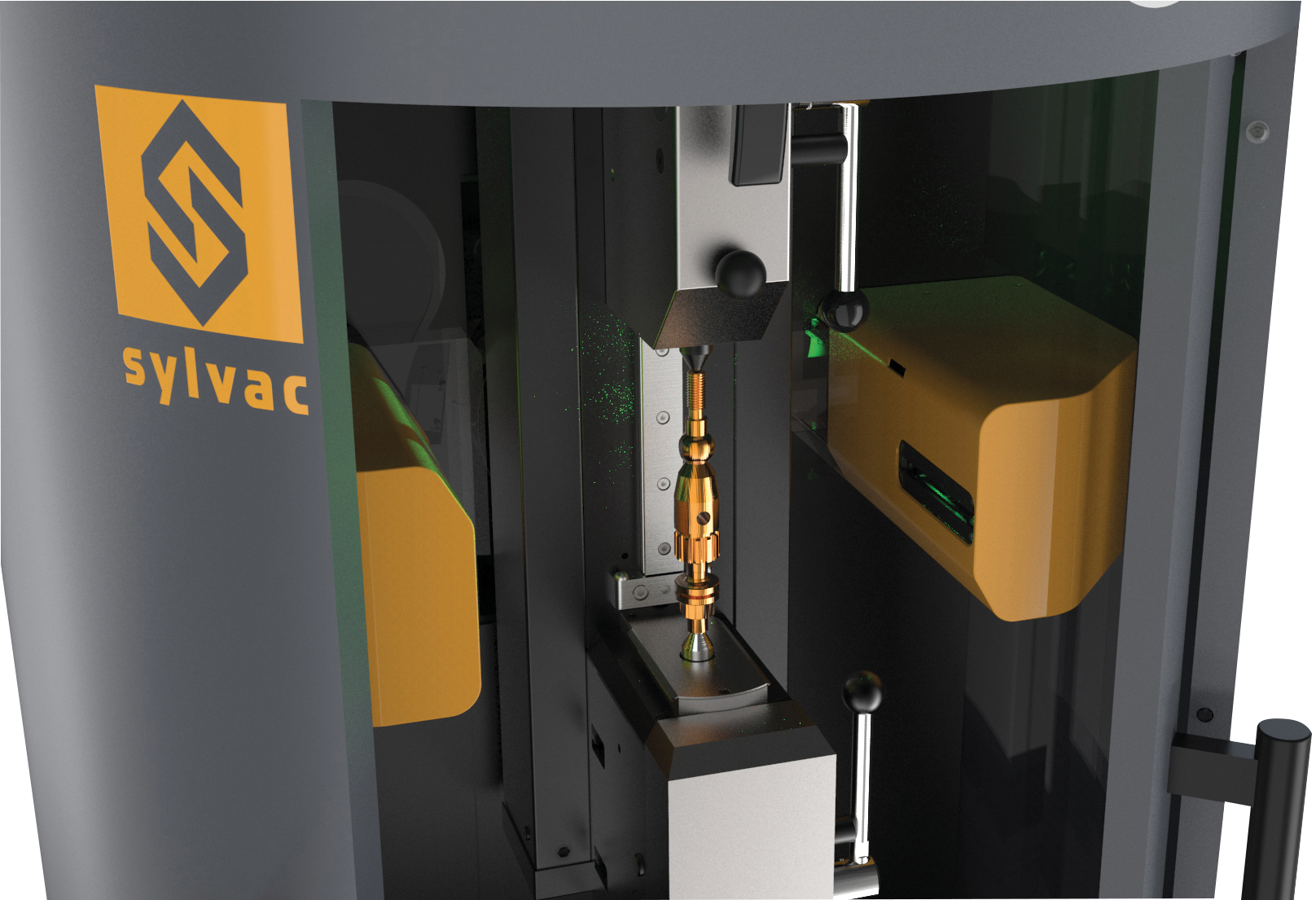

- Precision and Efficiency: Experience exceptional precision with our no-contact machine’s bi-telecentric optical system and high-resolution CMOS camera. It features a precision sliding headstock with an integrated and protected daily standard, as well as a quick and hassle-free accessory changing system. The machine also includes integrated temperature sensors.
- Seamless Integration: Our offering includes the Reflex SCAN+ software and a PC, empowering you to effortlessly measure a wide range of elements in an intuitive manner. Also available with ‘Automation Ready’ configuration upon request, to seamlessly integrate into your workflow.

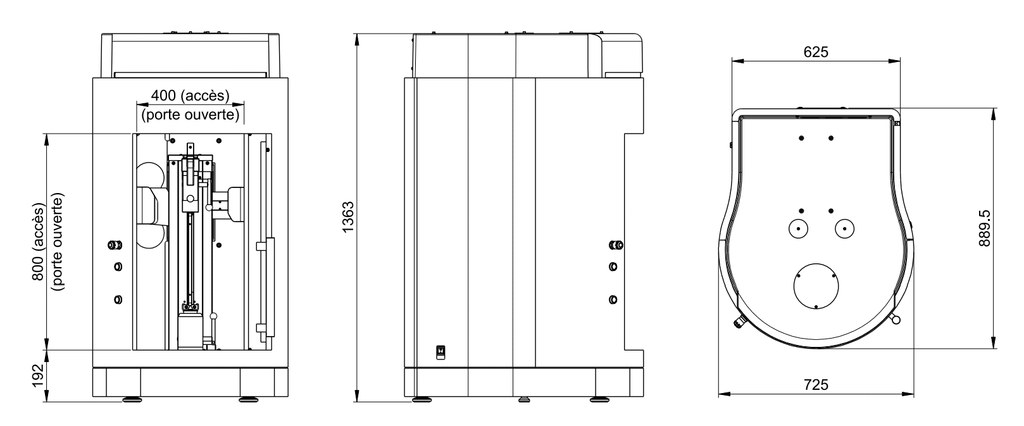

| 902-4060 | ||
| EAN | 7640125699449 | |
| Diameter | Length | |
| Measuring range (mm) | 64 | 300 |
| Resolution up to (mm) | 0.0001 | |
| Max. error (µm) | 1 + (D[mm]/100) ¹ | 3 + (L[mm]/200) ¹ |
| Repeatability 2? (µm) | 0.5 | 1.8 |
| Holding capacity (mm) | 120 | 315 |
| Headstock | Rotary headstock for dynamic measurements | |
| Tilting for thread measurement | – | |
| Axial move speed (mm/s) | Up to 100 | |
| Max. weight of part (kg) | 10 | |
| Machine’s weight (kg) | 265 | |
Applications
Diameter
Distance
Angle
Localisation
Form deviation
Industries
Automotive
Aeronautics
Fastening
Packaging
Machine tool
Medical device
