Using the latest Sylvac-Scan technology, this high resolution, high accuracy machine is ideal for rapid measurement of small cylindrical parts up to 26mm diameter and 200mn in length, such as, watch parts, dental implants, bone-screws, automotive, aerospace and general cylindrical parts where inspection time and accuracy matters.

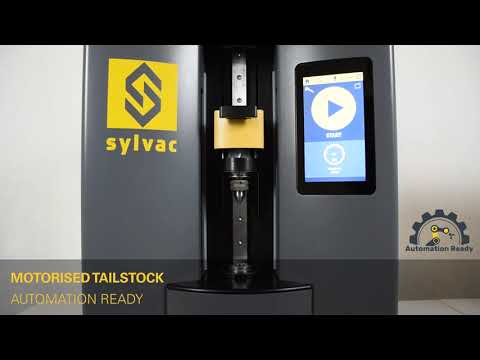

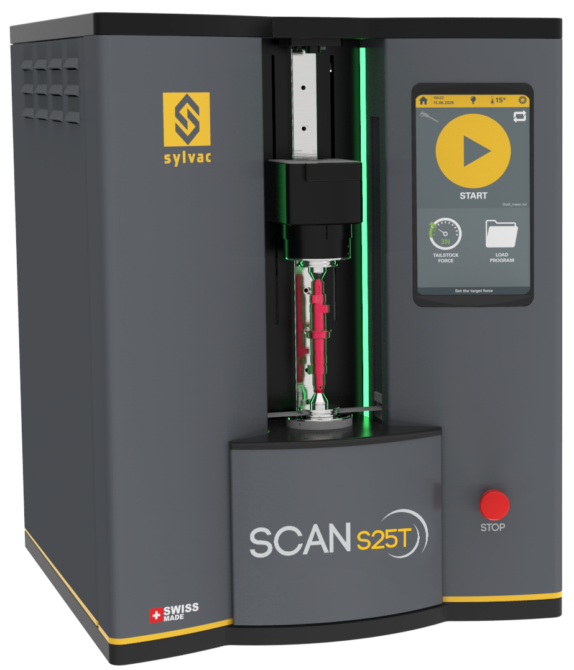

Small yet powerful, the Sylvac-Scan S25T comes equipped with Sylvac’s renowned tilt axis, for comprehensive thread measurement, capable of measuring threads with helix angles up to 30°. Delivered automation ready, with a motorised tailstock for automated clamping, quick release tooling, external I/O connectivity and communication protocols. Easy to use, with an all new operator touch screen interface panel, offering intuitive operation directly on the shop floor, with one click automatic measurement and part recognition.
| 902-4025 | ||
| EAN | 7640125688986 | |
| Diameter | Length | |
| Measuring range (mm) | 26 | 200 |
| Resolution up to (mm) | 0.0001 | |
| Max. error (µm) | 0.9 +(D[mm]/100) ¹ | 2.5 +(L[mm]/200) ¹ |
| Repeatability 2δ (µm) | 0.5 | 0.8 |
| Holding capacity (mm) | 51 | 200 |
| Tilting for thread measurement (°) | 30 | |
| Headstock | High precision rotary | |
| Axial move speed (mm/s) | Up to 100 | |
| Max. weight of part (kg) | 3 | |
| Machine’s weight (kg) | 73 | |
