This popular instrument features a dial face that is inclined to the workpiece surface to ensure excellent reading visibility without parallax error.
The T30 is part of our Rapid range and incorporates a rear swivel spigot enabling use for centering without additional attachments.
It also includes a precision worm mechanism as part of the inner workings to translate the vertical movement to rotational - without sliding friction or internal wear.
Features dovetail clamping slides on both the top and the bottom of the casing.

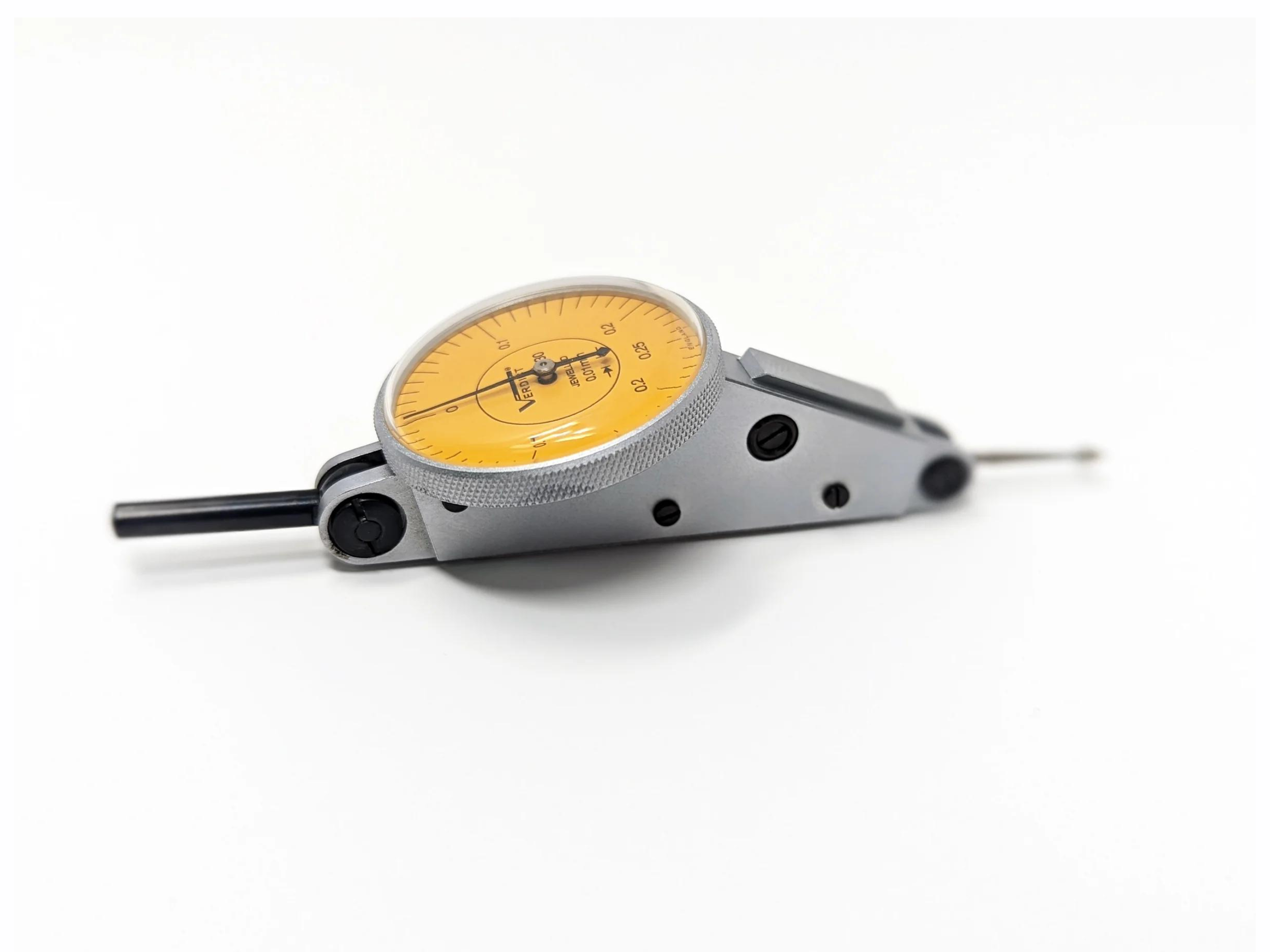

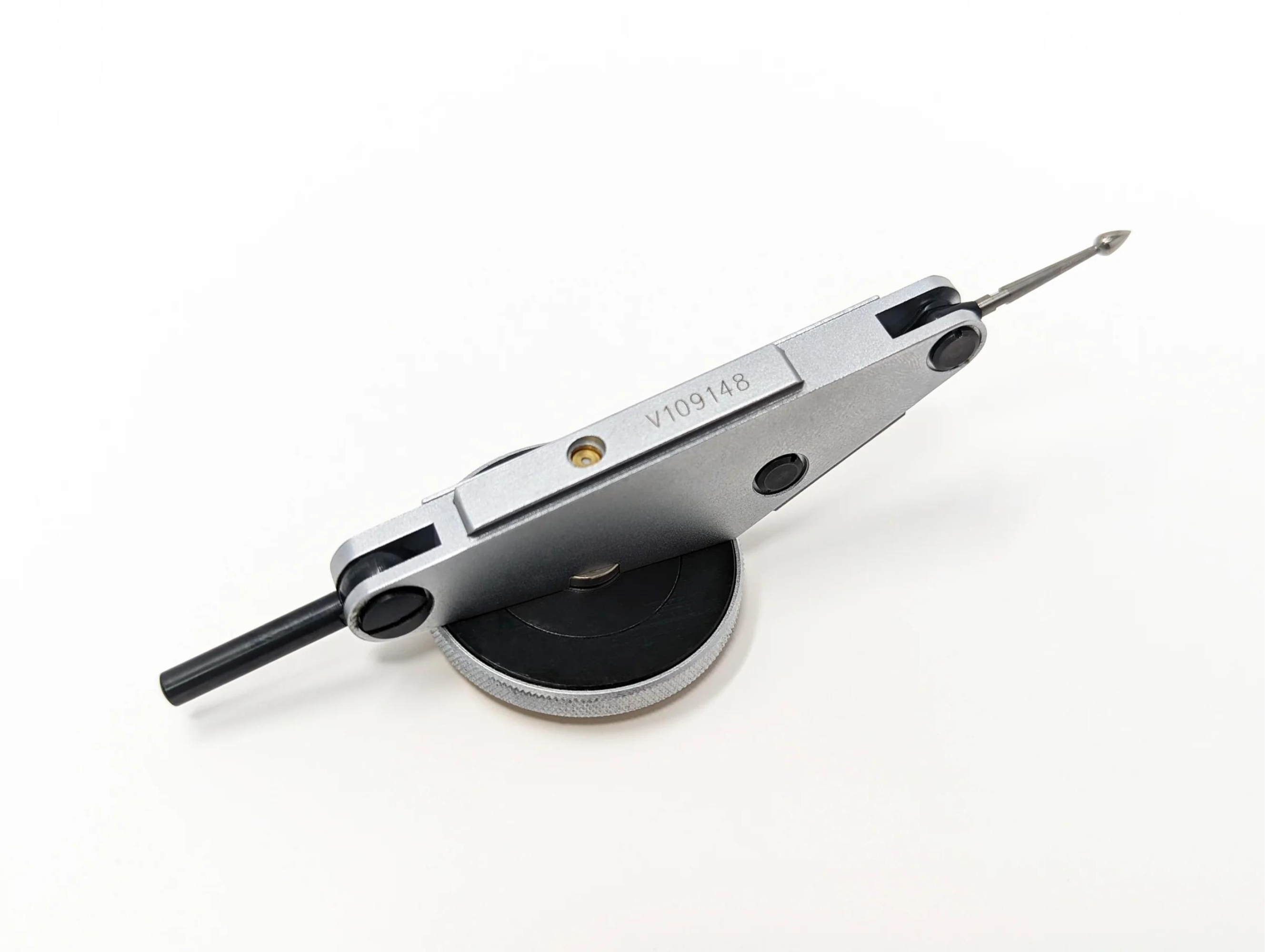

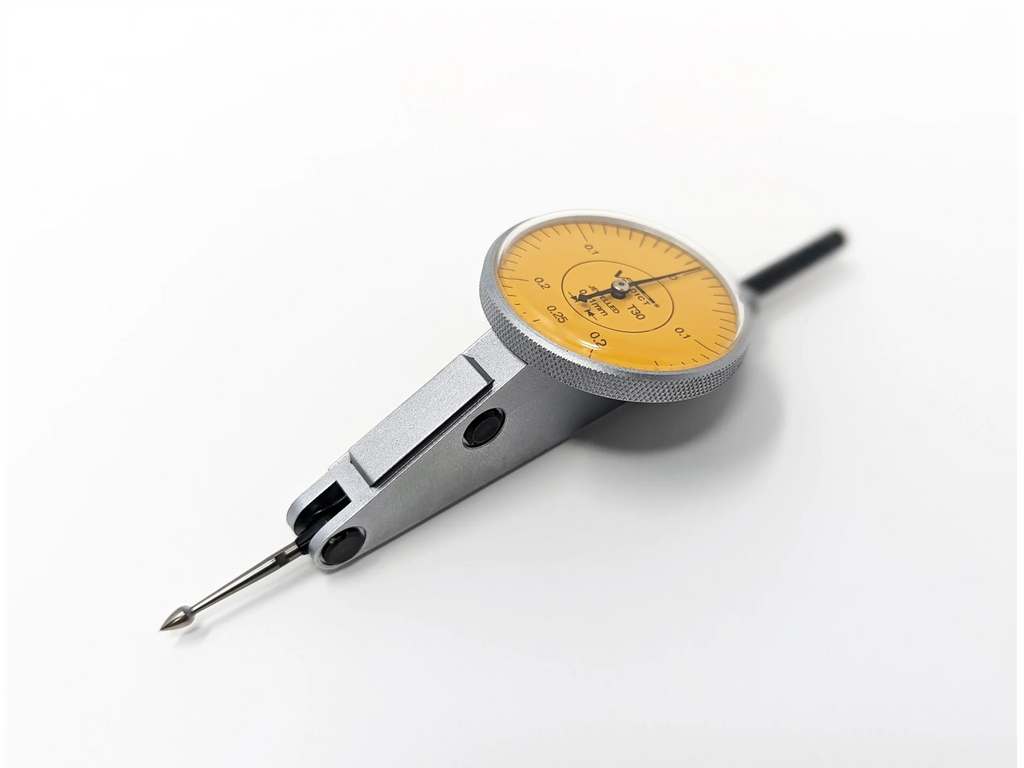

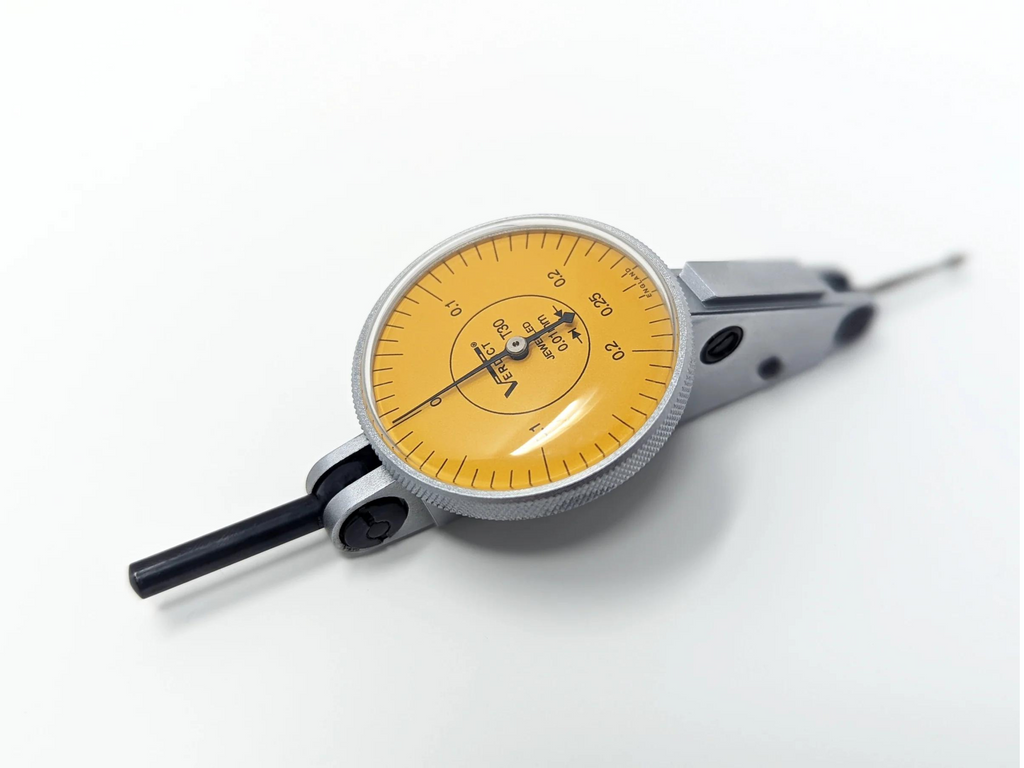

NB. Images currently show a metric dial for this model.
- Key features
- Worm mechanism
- Clamping facilities by means of dovetail or end spigot
- Dial rotates for zero setting
- Automatic reversal movement
- Jewelled mechanism
- Stylus swivels through an arc of 180 degrees
- Unidirectional hand travel
- Lever pivots are mounted in long-life ball bearings
- Imperial instruments fitted with 1/4" diameter spigot
- Swivel spigot standard on all models
Specifications
- Product code: 01/3030
- Model: T30 Imperial
- Dial diameter: 1 3/8"
- Reading: 0.0005"
- Graduation: 0-010-0
- Range: 0.02"
- Stylus length: 0.811"
All images are for representation only.
No technical information is currently available.
No application information is currently available.
No videos or documents are currently available.
